2019-12-19 6/20
2.3 Configuration of the 23WT25 modem
The 23WT25 modem is configured by jumpers. For an in-depth description of all settings
please see the connections and settings document 1KGT 150 592. In this document only basic
settings for the interoperation of 23WT25 and NSK5 are described. The position of jumpers
can be taken from Figure 2.

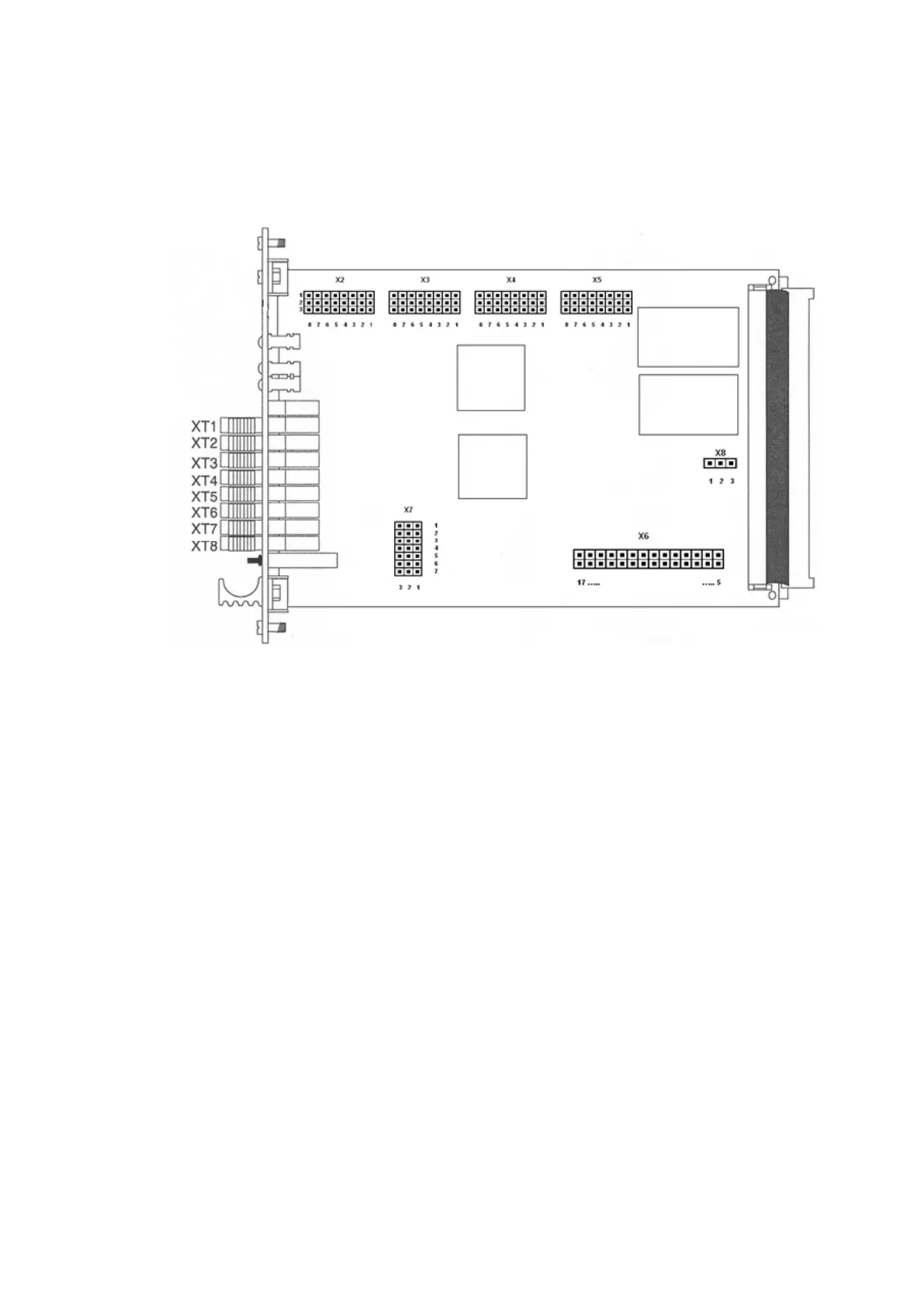

Figure 2: Jumper layout 23WT25
