3REPLACEMENT INSTRUCTIONS | ACH580-01 PXR UL TYPE 1/ 12, R2/R3/R4
Step Instruction

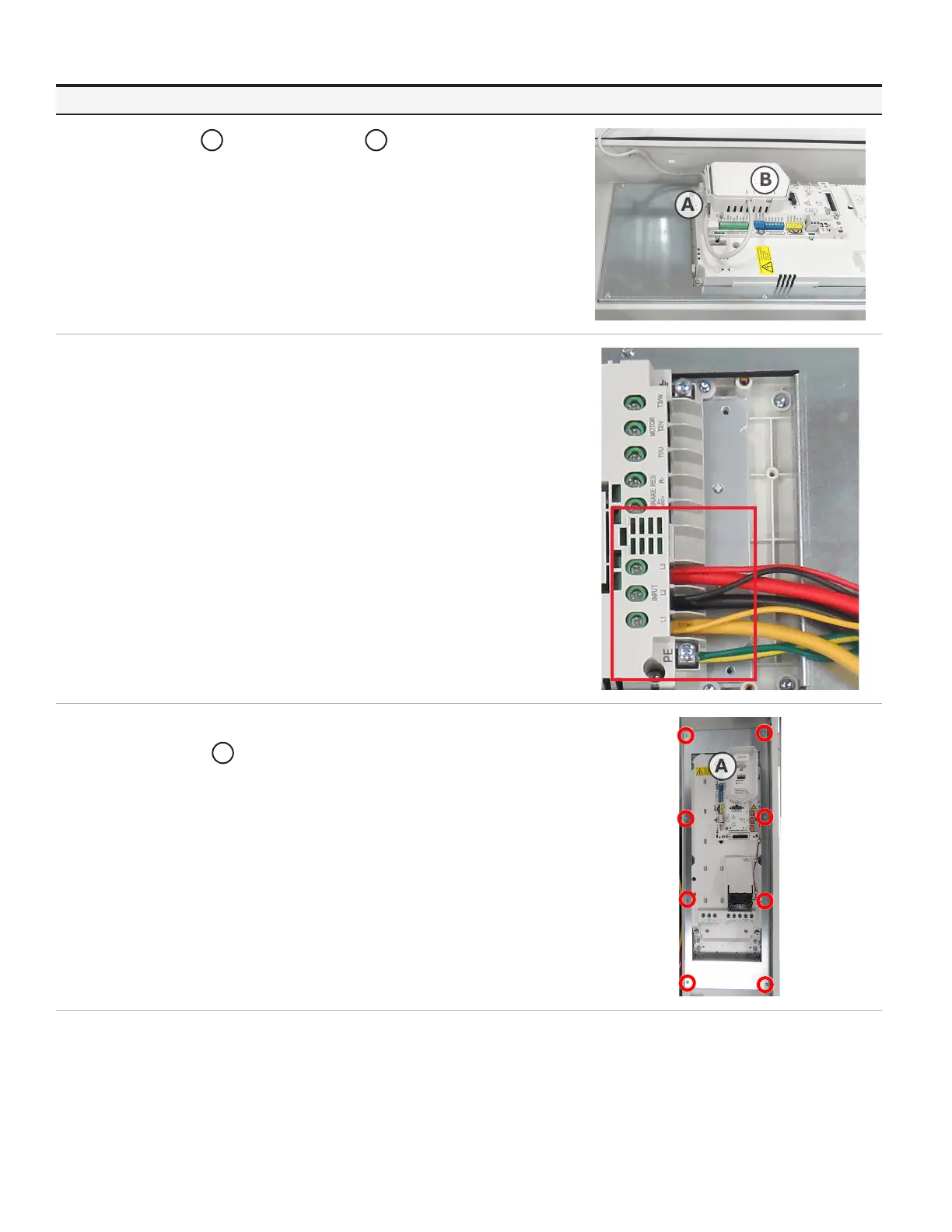

Diagram
4
Cut zip tie
A
and remove the CDPI
B
from drive. Set aside.
NOTE: Remove any additional drive I/O wiring.
5
Using a PZ2 bit, loosen and remove wires from the input terminals
of the drive.
Using a PZ3 bit, loosen and remove ground wire from the drive.
6
Using a T20 bit, loosen and remove screws securing the
flange plate
A
.
Save hardware.
B
A
A

ABB ACH580-01 PxR Frame R2 Specifications

General

Frame Size	R2
Mounting	Wall-mounted
Cooling Method	Air-cooled
Pollution Degree	2
Overvoltage Category	III
Enclosure Class	IP21, IP55
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (derating above 1000m)
Ambient Temperature	-15 to 50 °C (depending on specific model and derating)
