ABB ACH580-01 PxR Frame R2 User Manual

4REPLACEMENT INSTRUCTIONS | ACH580-01 PXR UL TYPE 1/ 12, R2/R3/R4
Step Instruction
Diagram
7

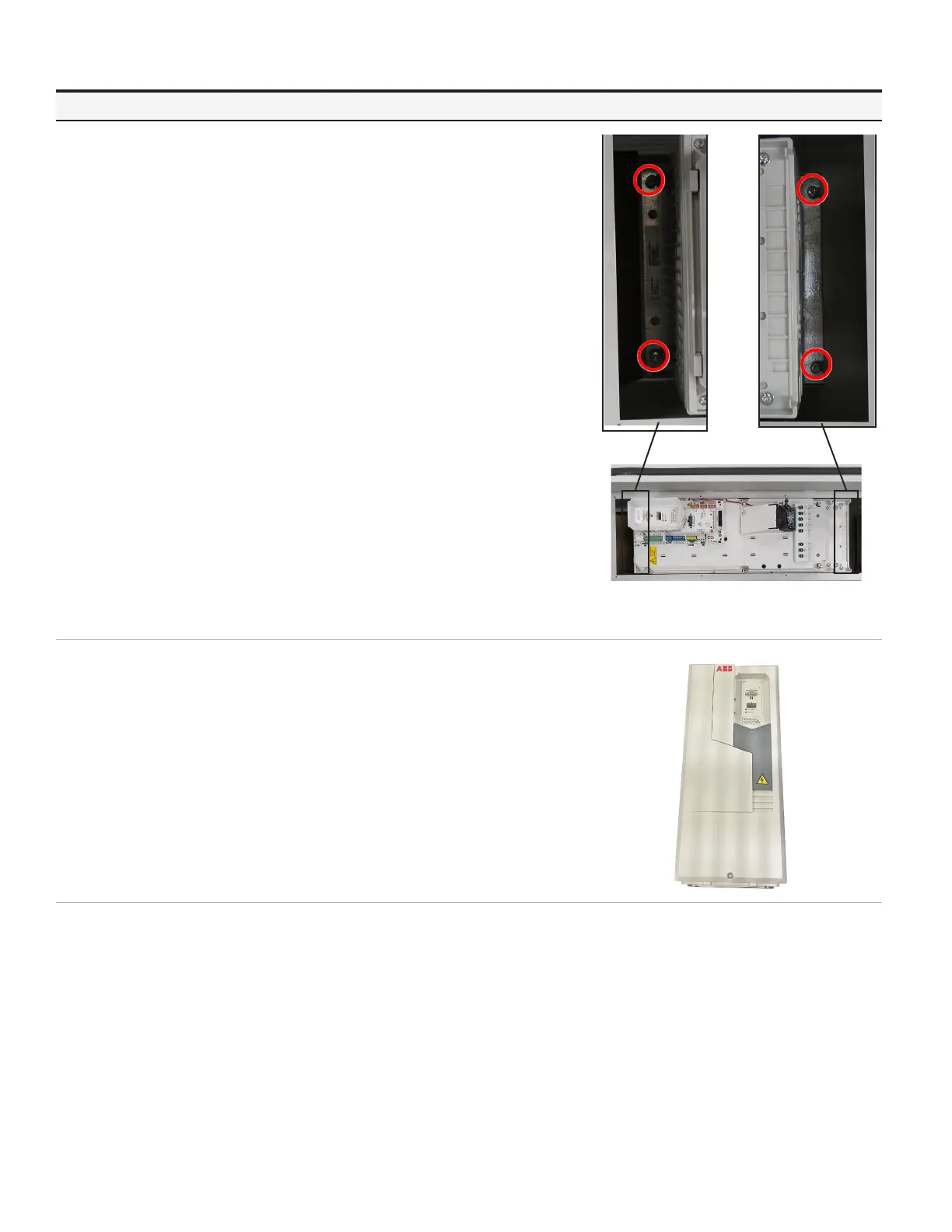

Using a T30 bit, loosen the four (4) M6 screws securing the drive,
four (4) turns of the screw.
NOTE: Do not remove the screws completely. Only loosen enough to
be able to lift the drive off the screws.
8
Carefully push the drive up, lift the drive off the screws and out of
enclosure.
9
Unpack the replacement drive.
UL Type 12: UL Type 12 drives require a UL Type 12 replacement
drive, UL Type 1 are not allowed as substitutes for UL Type 12.
Using a T20 bit, loosen and remove screws securing the cover.
Recycle drive cover.
UL Type 12: Recycle the hood that was included in the box and the
drive cover that was removed.

ABB ACH580-01 PxR Frame R2 Specifications

General

Frame Size	R2
Mounting	Wall-mounted
Cooling Method	Air-cooled
Pollution Degree	2
Overvoltage Category	III
Enclosure Class	IP21, IP55
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (derating above 1000m)
Ambient Temperature	-15 to 50 °C (depending on specific model and derating)
