ABB ACH580-01 PxR Frame R2 User Manual

5REPLACEMENT INSTRUCTIONS | ACH580-01 PXR UL TYPE 1/ 12, R2/R3/R4

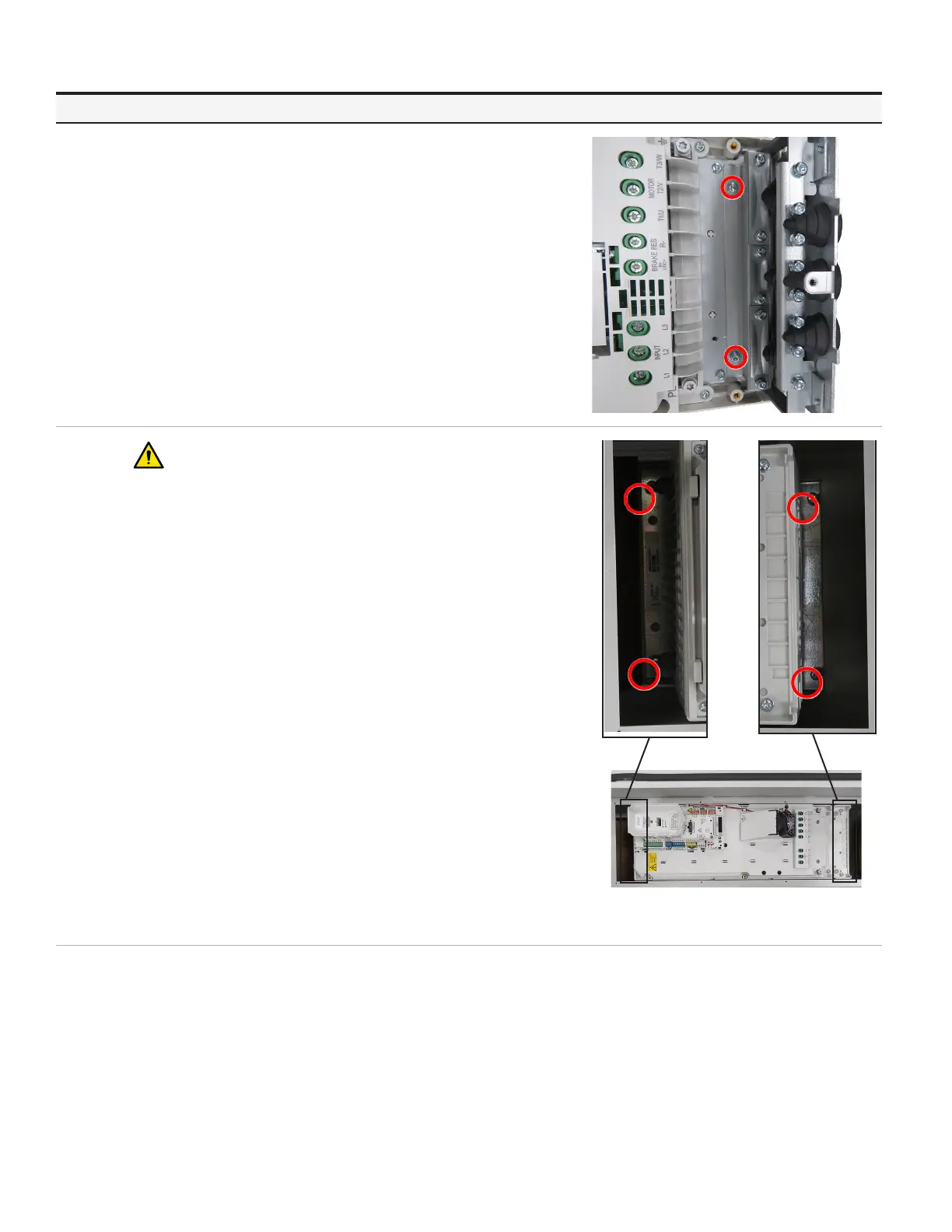

Step Instruction
Diagram
10
R2 Frame: Using a T20 bit, loosen and remove two (2) M4x8 screws.
Remove conduit assembly.
R3 Frame: Using a T20 bit, loosen and remove two (2) M4x16
screws. Remove conduit assembly.
R4 Frame: Using a T25 bit, loosen and remove four (4) M5x25
screws. Remove conduit assembly.
Recycle the conduit assembly and hardware.
11
CAUTION! Use two people to install the drive.
Slide the drive mounting holes over the four (4) screws and slide
drive in place.
Torque all four (4) mounting screws to 27 in-lb (3 Nm).

ABB ACH580-01 PxR Frame R2 Specifications

General

Frame Size	R2
Mounting	Wall-mounted
Cooling Method	Air-cooled
Pollution Degree	2
Overvoltage Category	III
Enclosure Class	IP21, IP55
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (derating above 1000m)
Ambient Temperature	-15 to 50 °C (depending on specific model and derating)
