6REPLACEMENT INSTRUCTIONS | ACH580-01 PXR UL TYPE 1/ 12, R2/R3/R4
Step Instruction
Diagram
12

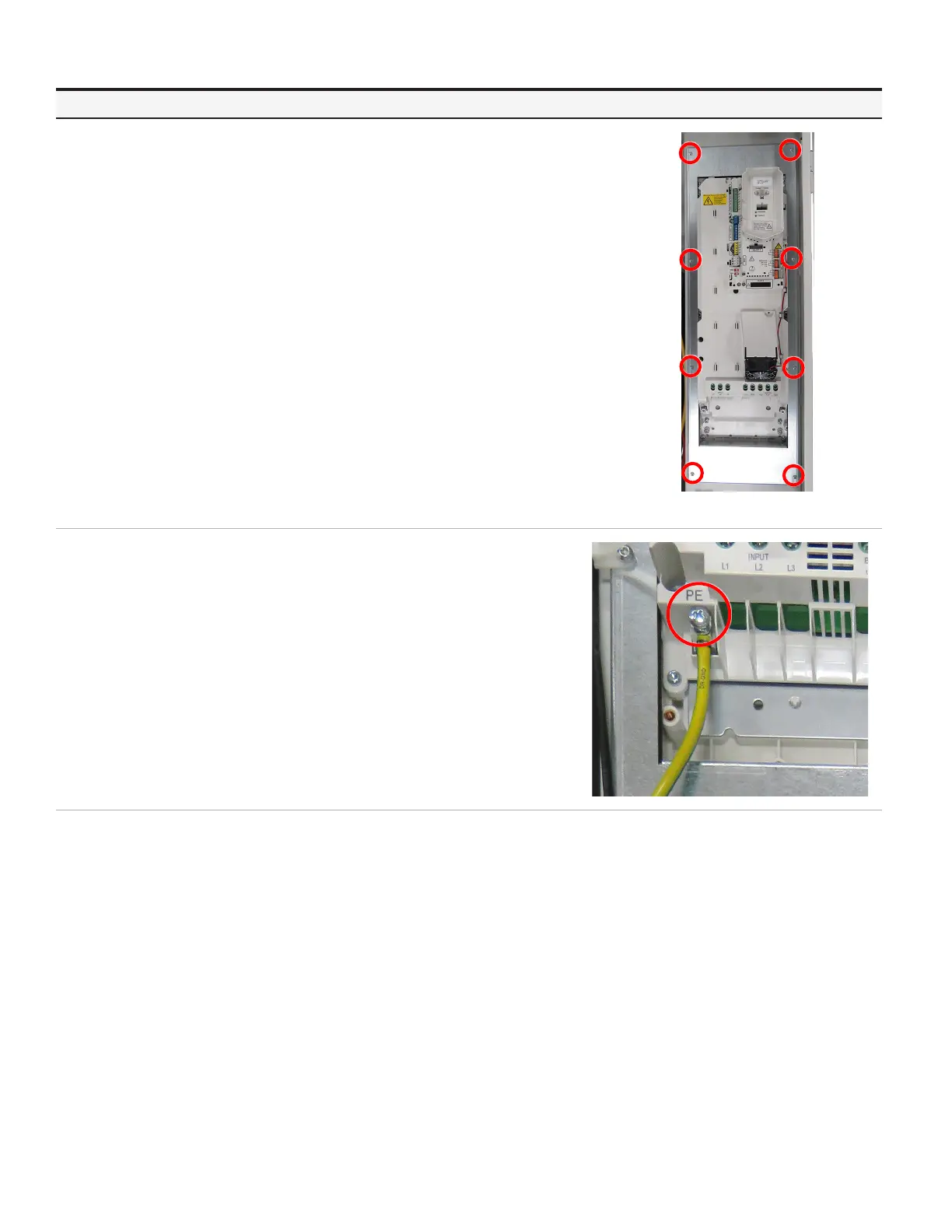

Place collar around drive. Using a T20 bit, secure the drive using the
M4x20 screws that were removed earlier.
Using a T20 bit, torque to 14 in-lb (1.5 Nm).
13
Secure the ground wire to the drive.
R2 & R3 Frame: Using a PZ3 bit, torque to 14 in-lb (1.5 Nm).
R4 Frame: Using a PZ3 bit, torque to 26 in-lb (2.9 Nm).

ABB ACH580-01 PxR Frame R2 Specifications

General

Frame Size	R2
Mounting	Wall-mounted
Cooling Method	Air-cooled
Pollution Degree	2
Overvoltage Category	III
Enclosure Class	IP21, IP55
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (derating above 1000m)
Ambient Temperature	-15 to 50 °C (depending on specific model and derating)
