ABB ACH580-01 VxR R1 User Manual

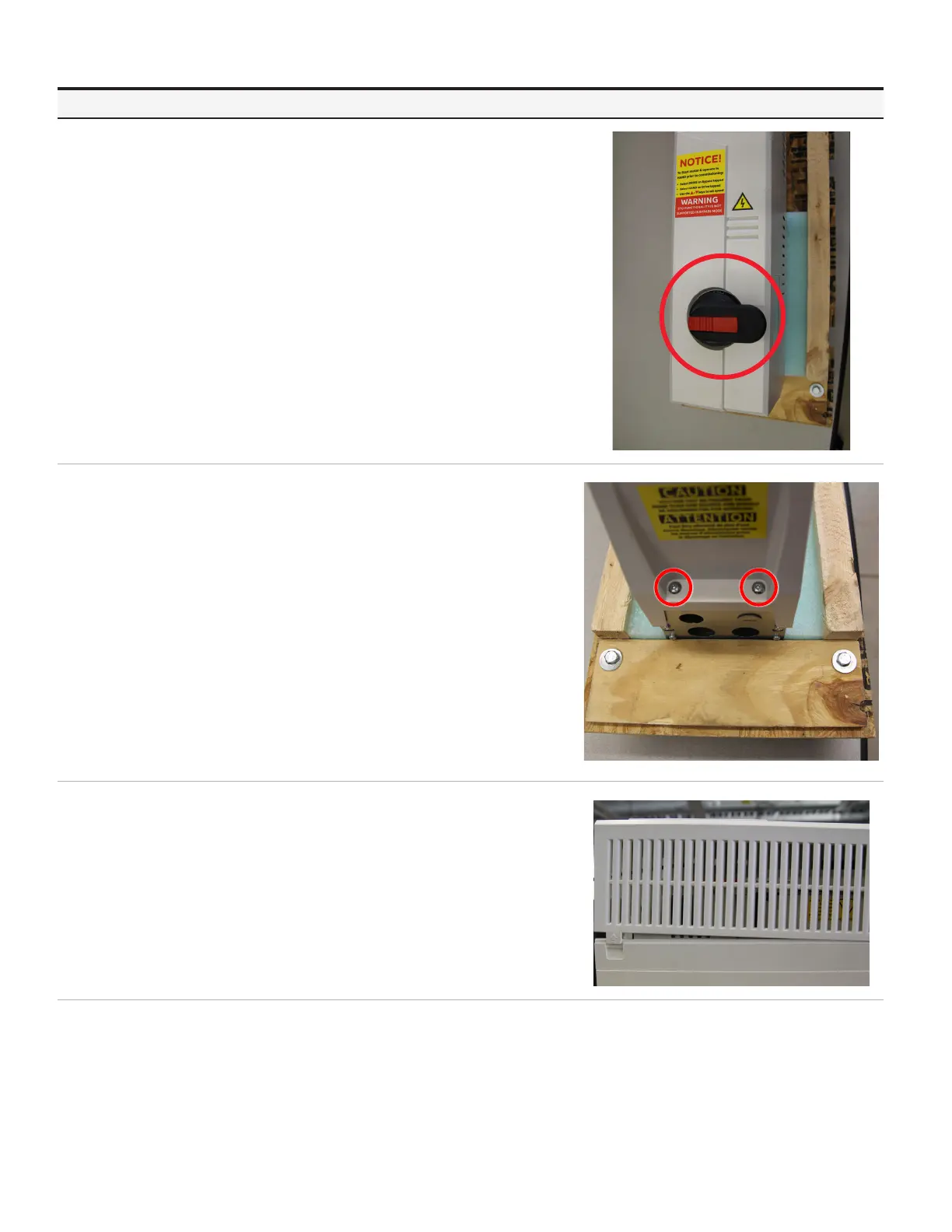

2REPLACEMENT INSTRUCTIONS | ACH580-01 VXR UL TYPE 1 , R1/R2
Step Instruction
Diagram
1
NOTE: If needed, back-up parameters prior to disconnecting power.
Turn off source power and wait 5 minutes for the DC bus capacitors
to discharge.
Turn handle to the off position.
2
Using a T20 bit, loosen and remove two (2) M4x16 screws securing
the enclosure cover.
Save hardware.
3
Remove drive cover by pushing up on the sides as indicated by
arrow.
Recycle drive cover.
