ABB ACH580-01 VxR R1 User Manual

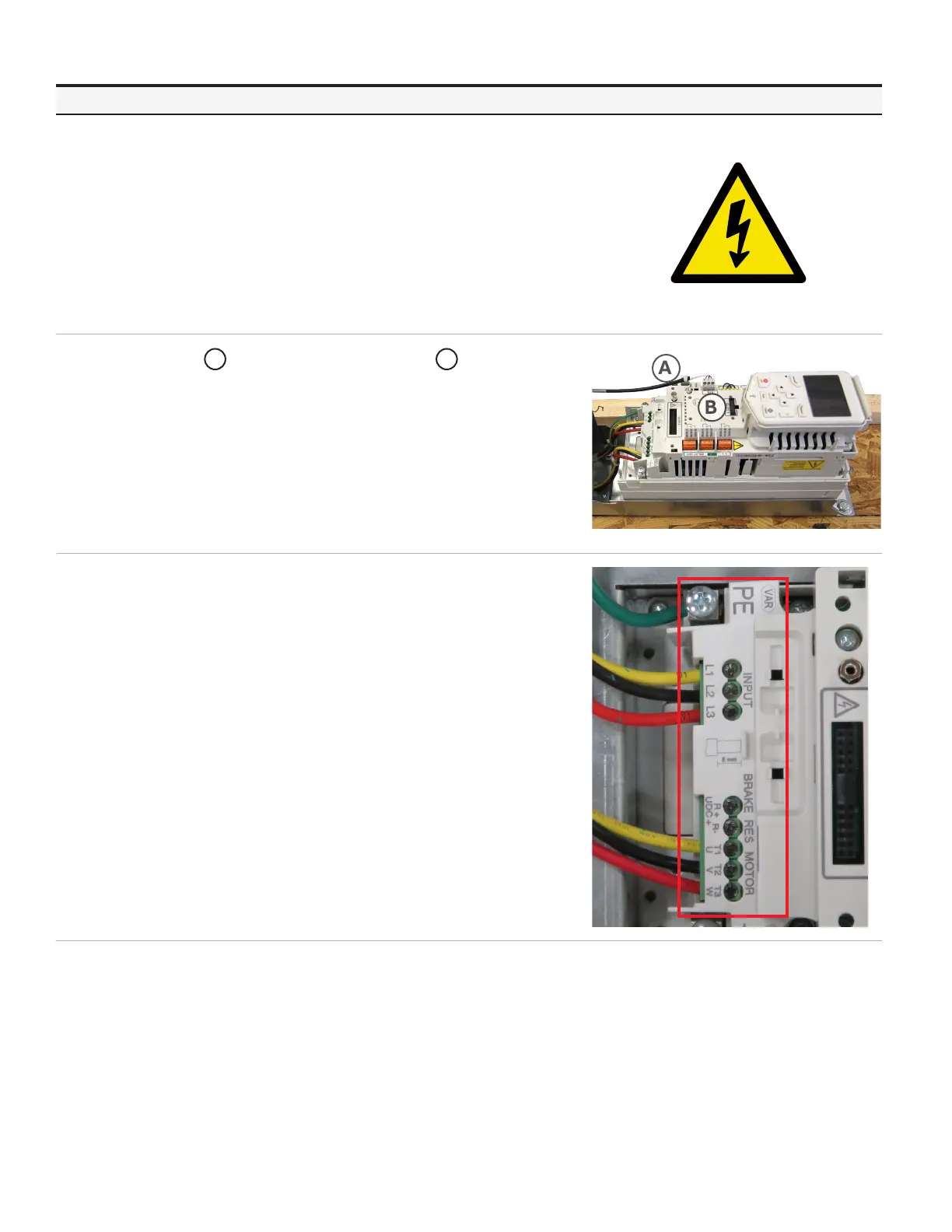

3REPLACEMENT INSTRUCTIONS | ACH580-01 VXR UL TYPE 1 , R1/R2
Step Instruction
Diagram
4
Perform voltage check to confirm no voltage is present.
NOTE: If you have control wiring connected to the Control Unit,
disconnect at this time.
5
Cut zip tie
A
and disconnect the RS485 cable
B
from the drive
by pulling out the terminal block.
NOTE: Remove any additional drive I/O wiring.
6
Using a PZ2 bit, loosen and remove wires from the input terminals
of the drive.
Using a PZ2 bit, loosen and remove wires from the motor terminals
of the drive.
Using a PZ3 bit, loosen and remove ground wire from the drive.
A
B
