4REPLACEMENT INSTRUCTIONS | ACH580-01 VXR UL TYPE 1 , R1/R2

Step Instruction

Diagram

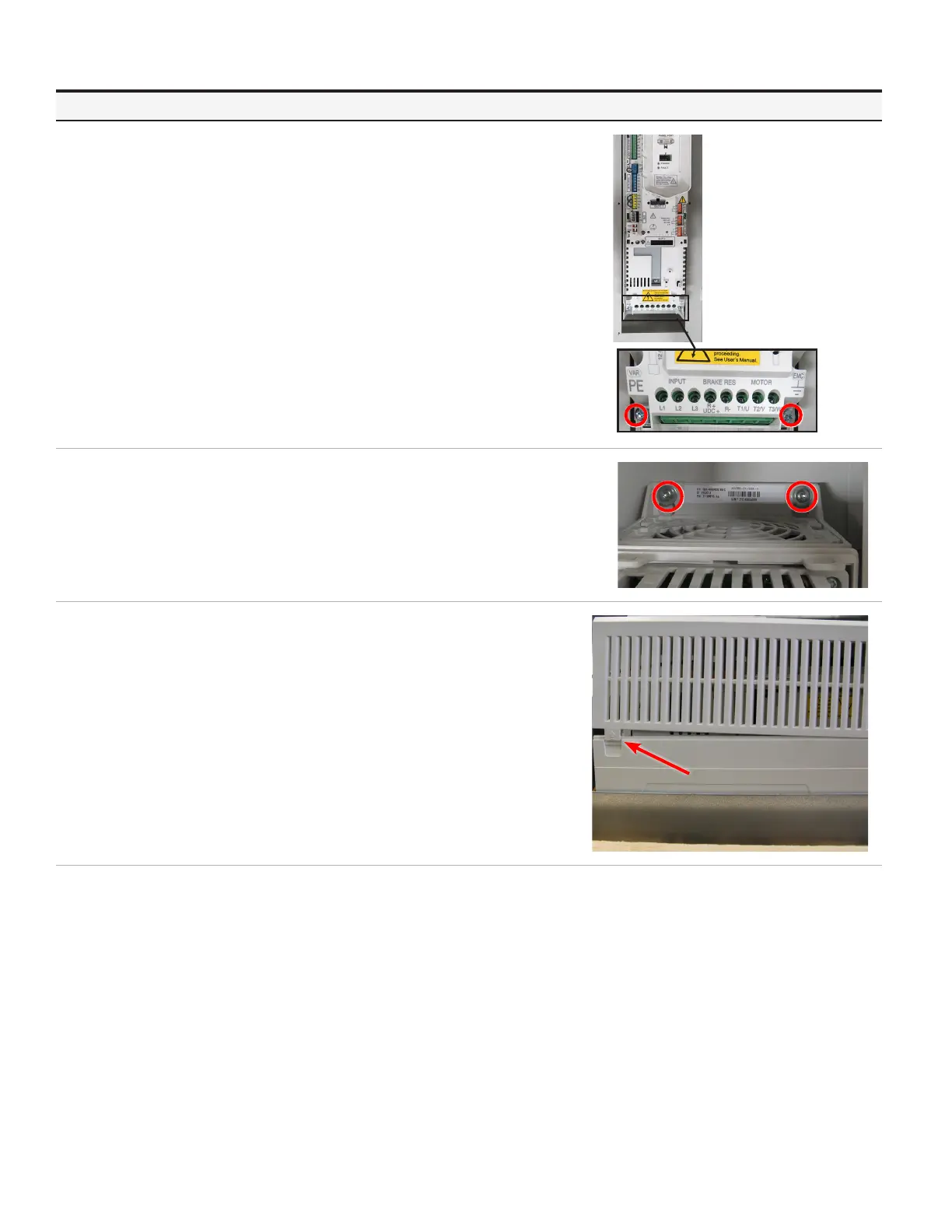

Using a T30 bit, loosen the two (2) bottom M6 screws securing the

drive, four (4) turns of the screw.

NOTE: Do not remove the screw completely. Only loosen enough to

be able to lift the drive off the screws.

Using a T30 bit, loosen and remove the top two (2) M6 screws

securing the drive.

Carefully lift the drive out of channel.

Unpack the replacement drive.

Remove drive cover by pushing up on the sides as indicated by

arrow.
