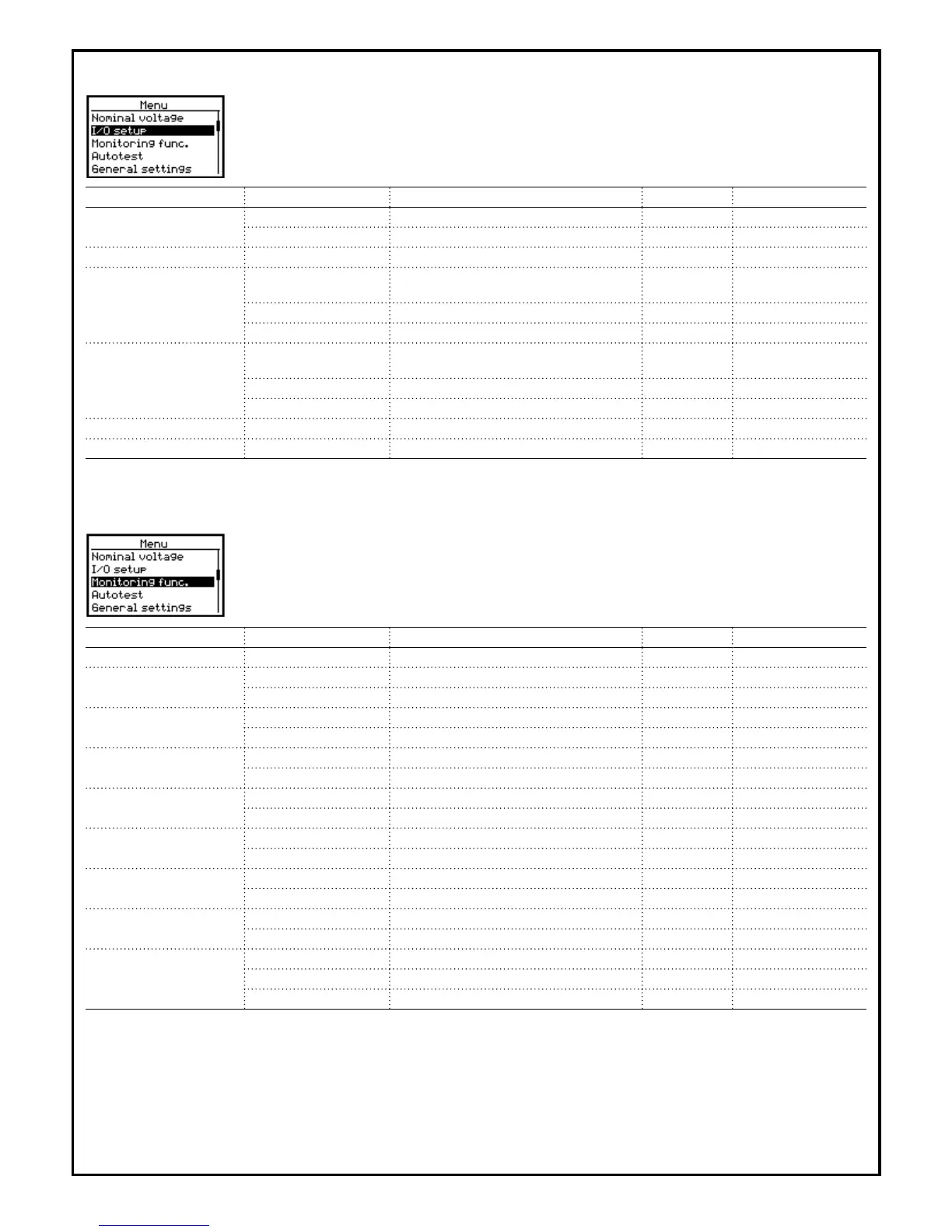

Submenu: I/O setup
Contents of submenu Options Configuration possibilities Step size CEI 0-21
Relay 1 settings Start-up delay [1.00] - [600.00] s 0.05 s 1 s
Re-start delay [0.05] - [600.00] s 0.05 s 0.05 s
Relay 2 settings Working prinicple [closed-circuit], [open-circuit] closed-circuit
Relay 3 settings Working prinicple [disabled], [open-circuit], [closed-circuit],
[synchronous with relay 1]
sync. with relay 1
ON-delay [0.00] - [10.00] s 0.05 s 0 s
ON-time [0.05] - [10.00] s 0.05 s 0.5 s
Feedback loop Y1 Working prinicple [normally closed], [normally open],
[auto detection]
normally closed
Trip window [0.05] - [0.50] s 0.05 s 0.5 s
Release window [0.50] - [600.00] s 0.05 s 0.5 s
External signal Y2 Working prinicple [normally closed], [normally open] normally open
Remote trip Y3 Working prinicple [normally closed], [normally open] normally open
Submenu: Monitoring functions
Contents of submenu Options Configuration possibilities Step size CEI 0-21
Overvoltage >S1 Threshold value [1.00] - [1.20] x U
n
0.01 x U
n
1.1 x U
n
Overvoltage >S2 Threshold value [1.00] - [1.30] x U
n
0.01 x U
n
1.15 x U
n
Tripping delay [0.05] - [600.00] s 0.05 s 0.2 s
Undervoltage <S1 Threshold value [0.20] - [1.00] x U
n
0.01 x U
n
0.85 x U
n
Tripping delay [0.05] - [600.00] s 0.05 s 0.4 s
Undervoltage <S2 Threshold value [0.05] - [1.000] x U
n
0.01 x U
n
0.4 x U
n
Tripping delay [0.05] - [600.00] s 0.05 s 0.2 s
Overfrequency >S1 Threshold value [50.00] - [54.00] Hz 0.1 Hz 50.5 Hz
Tripping delay [0.05] - [600.00] s 0.05 s 0.1 s
Overfrequency >S2 Threshold value [50.00] - [54.00] Hz 0.1 Hz 51.5 Hz
Tripping delay [0.05] - [600.00] s 0.05 s 0.1 s
Underfrequency <S1 Threshold value [46.00] - [50.00] Hz 0.1 Hz 49.5 Hz
Tripping delay [0.05] - [600.00] s 0.05 s 0.1 s
Underfrequency <S2 Threshold value [46.00] - [50.00] Hz 0.1 Hz 47.5 Hz
Tripping delay [0.05] - [600.00] s 0.05 s 0.1 s
ROCOF ROCOF [disabled], [enabled] disabled
Threshold value [0.1] - [1.0] Hz/s 0.1 Hz/s 1.0 Hz/s
Error time [0.05] - [600.00] s 0.05 s 30 s
11
