Cleaning the filter silencer
5.2
Page 53
September 2014 HZTL2498_EN Revision A


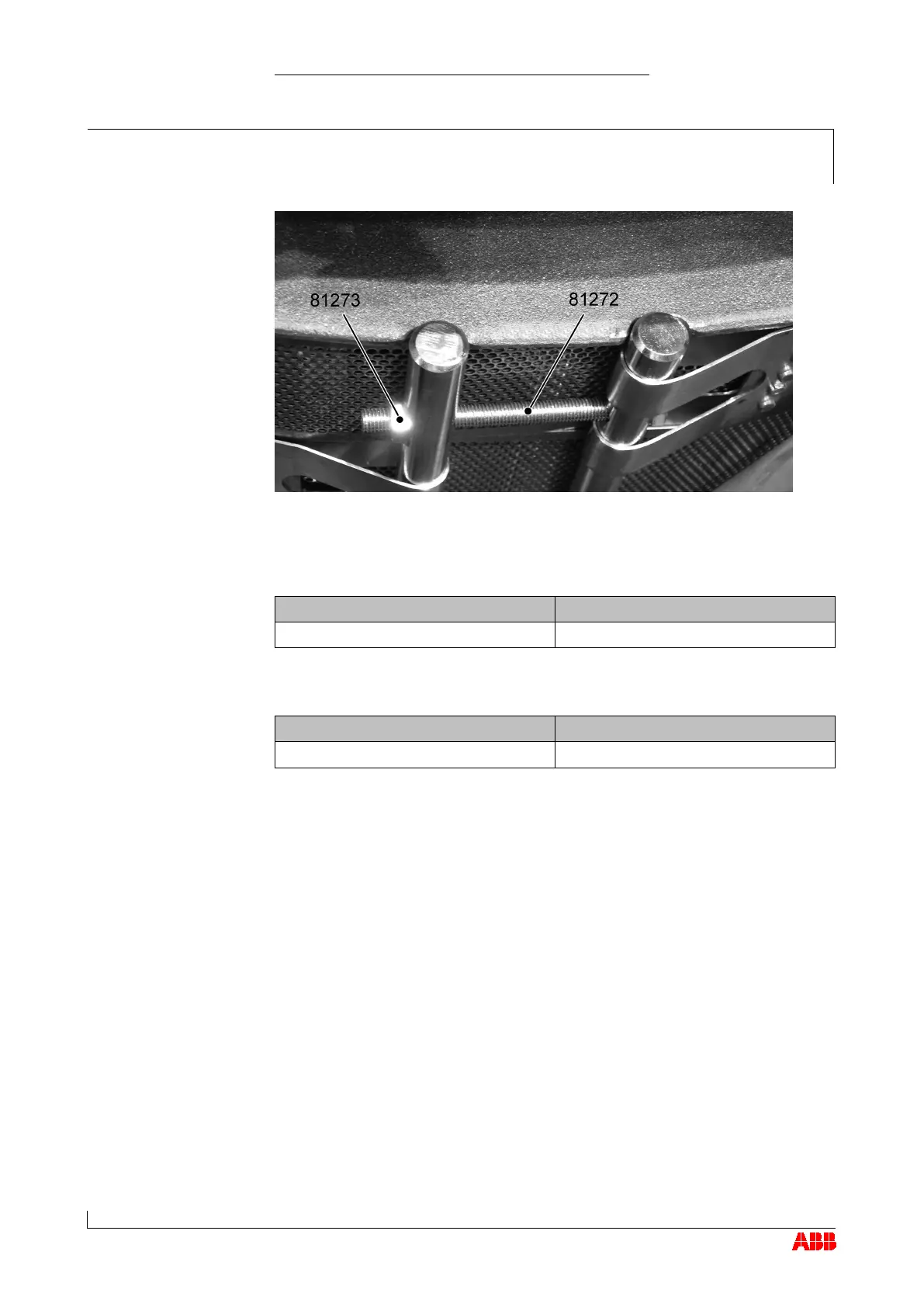

Join connecting rods (81269) using screws (81272). When tensioning
screws (81272), ensure that connecting rods (81269) are located
correctly in recesses in filter silencer body (81135). Now alternately
tighten screws (81272) to following maximum torque:
Screw
tightening torque [Nm]
81272
20
 Screw lock nuts (81273) onto screw (81272) and tighten to following
torque:
Lock nut
tightening torque [Nm]
81273
40
 Fit filter strip (81265).
If provided
