ABB HT563865 - Module Weights

Operation Manual / TPL65-A32 / -A33 / -A36 + TPL69-A32 / -A33
Disassembly and assembly
8

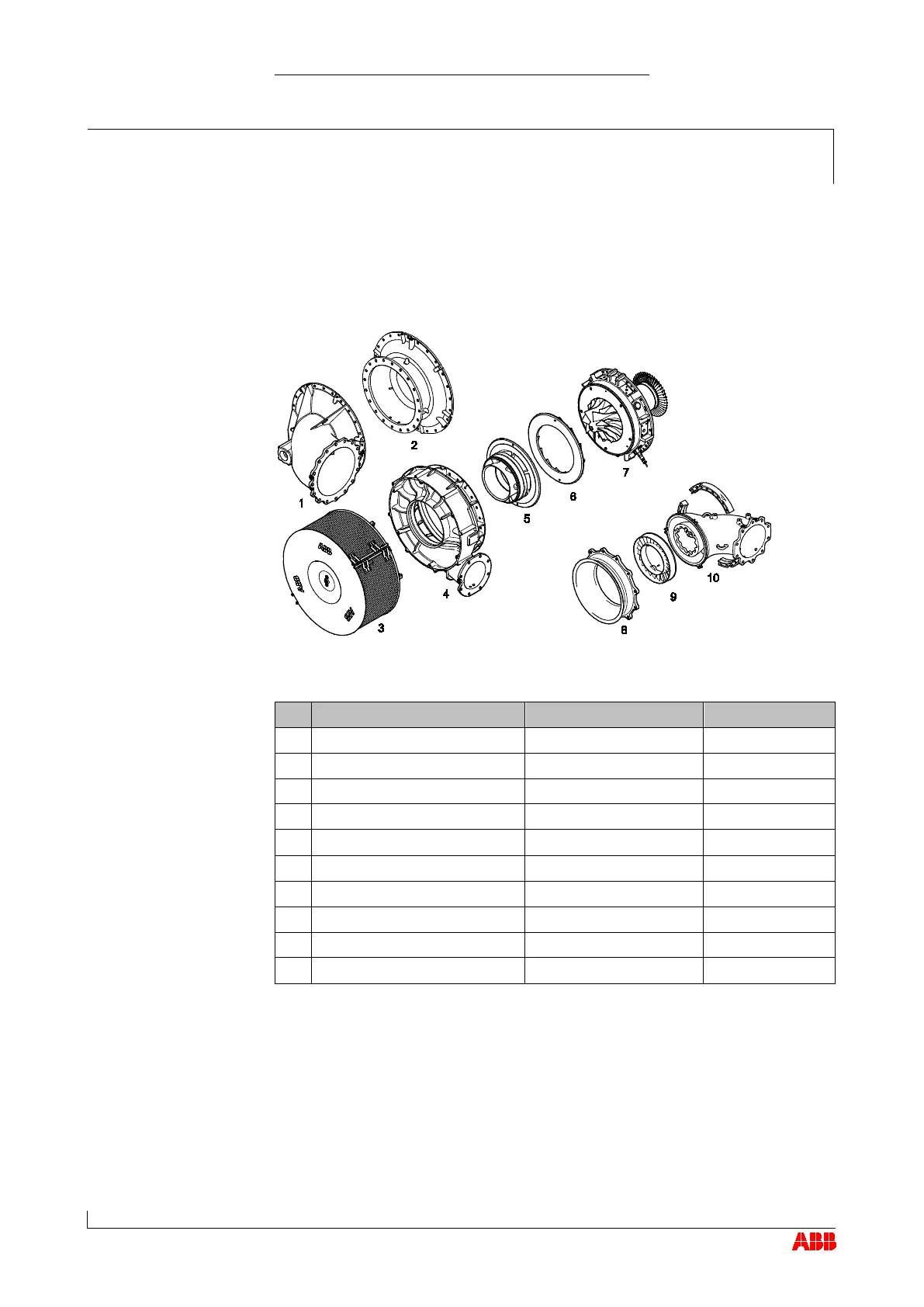

Module weights
8.2
Page 79
September 2014 HZTL2498_EN Revision A
Module weights
8.2
The specified weights of individual parts or assemblies are guides
rounded off to the next highest value.
Description
TPL65-A32 / A33 / A36
TPL69-A32 / -A33
1 Radial air suction branch 50 70
2
Axial air suction branch
35
- -
3 Filter silencer 130 220
4 Compressor casing 180 260
5 Wall insert 40 65
6
Diffuser
19
35
7 Cartridge group 290 360
8
Turbine diffuser
30
50
9 Nozzle ring 10 17
10 Radial gas inlet casing 50 55
8.2
Assemblies
Weights [kg]
