Operation Manual / TPL65-A32 / -A33 / -A36 + TPL69-A32 / -A33
Disassembly and assembly
8
Installing cartridge group
8.7
Page 92
September 2014 HZTL2498_EN Revision A
CAUTION
If the rotor blades have insufficient or no clearance, the blades and
casing could be damaged.
 Turn rotor to check that blades do not rub against turbine diffuser.
 Remove the lifting gear.
 Screw in the speed sensor (86505) along with the O-ring (86506) and
plug in the cable connector (86515).


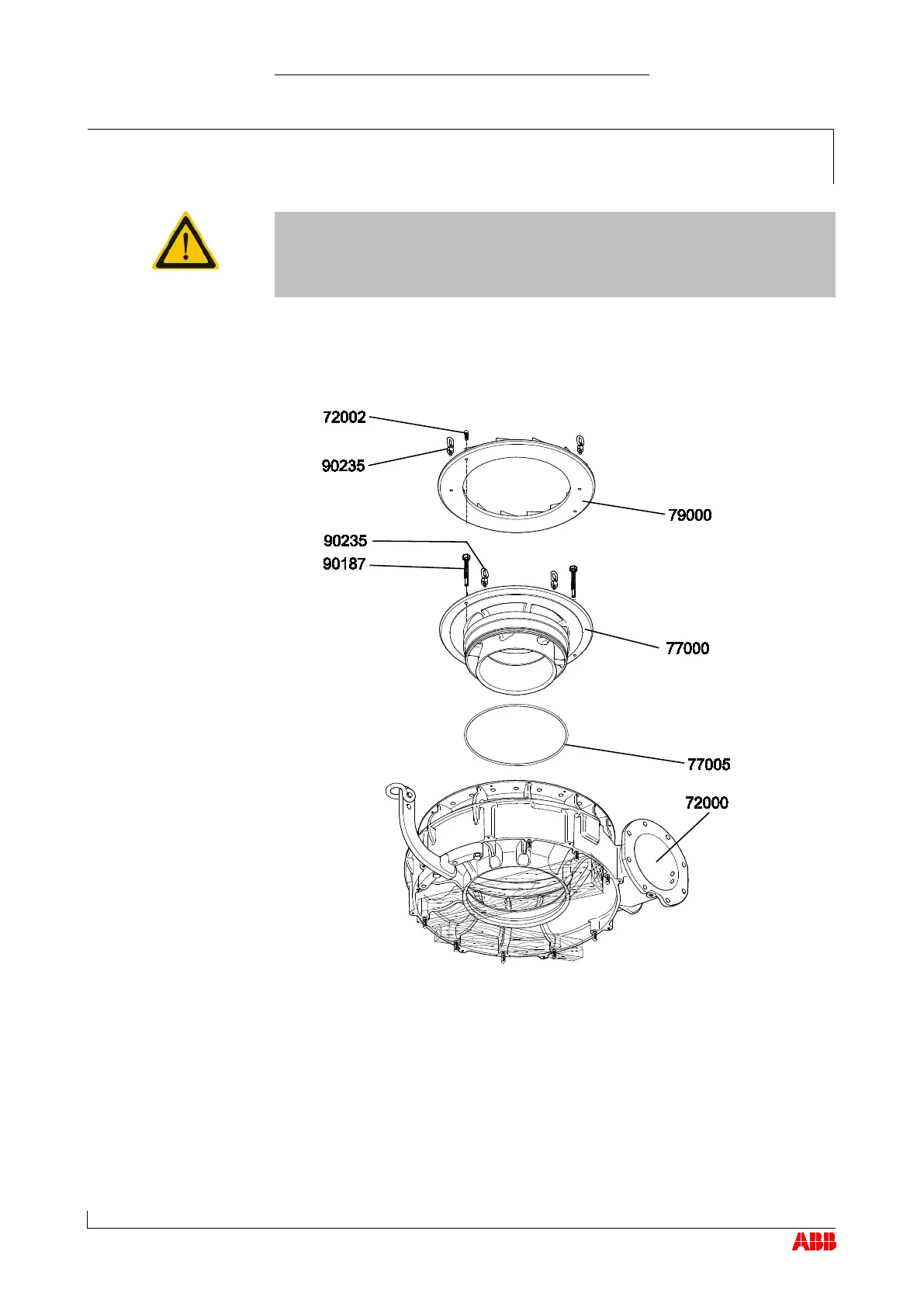

Fit the O-ring (77005) to the wall insert (77000).
 Fit the lifting gear and the swivel lifting eye (90235).
 Align and fit the wall insert (77000) using the centring screw (90187).
 Place the diffuser (79000) in position using the swivel lifting eye
(90235).
 Remove the swivel lifting eye (90235).
 Fit the screws (72002).
