Operation Manual / 4 Product description / A100-L
8
Disassembly and assembly
Page 70 /
111
© Copyright 2016 ABB. All rights reserved.
HZTL4034_EN
Revision F
June 2016

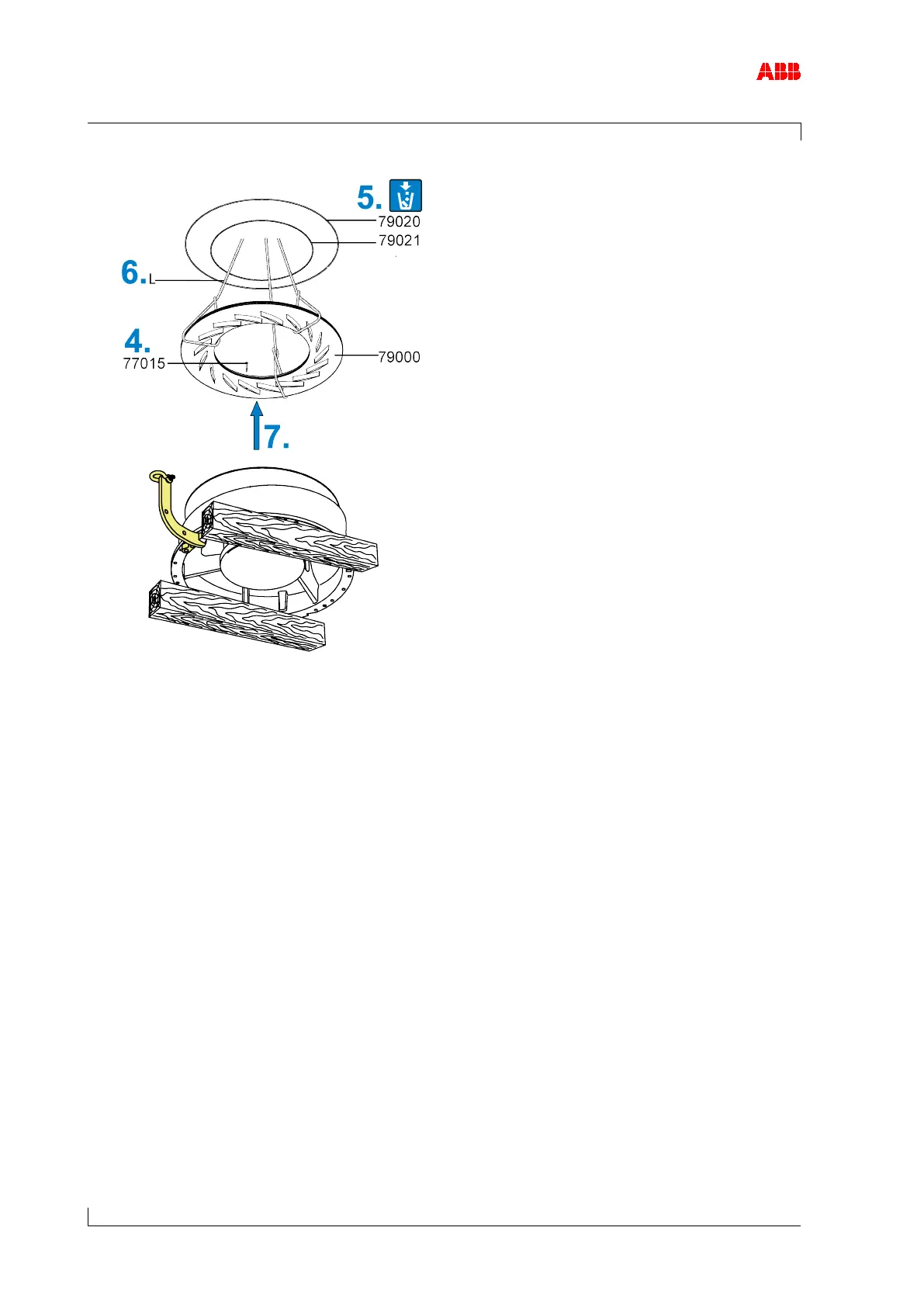

Figure 35: Dismantling the diffuser
4. Loosen and remove screws (77015).
5. Remove O-rings (79020, 79021).
6. Attach lifting gear (L) to the diffuser (79000).
7. Remove and put down diffuser.
