8.14 Fitting the filter silencer
If the turbocharger is also fitted with a noise package, observe chapter Fitting the filter silencer
with noise package [➙ 88].

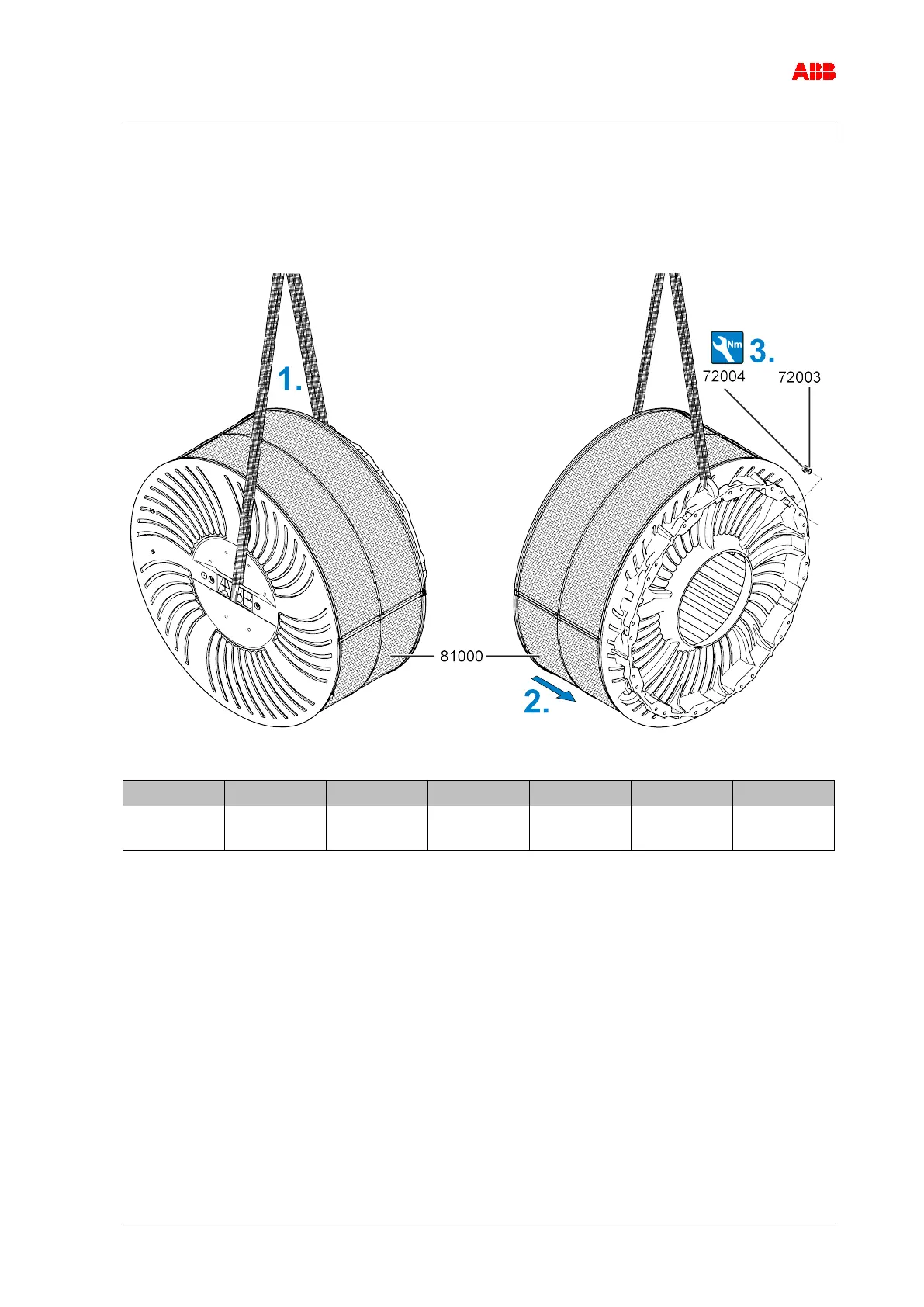

Figure 54: Fitting the filter silencer
Part number
A165-L
A170-L
A175-L
A180-L
A185-L
A190-L
72004 M14
130 Nm
M16
200 Nm
M18
300 Nm
M20
420 Nm
M22
570 Nm
M24
710 Nm
Table 38: Tightening torque (72004)
1. Attach the lifting gear to the front lug and rear eyelet of the filter silencer (81000).
2. Position filter silencer on compressor casing.
3. Fit nuts (72004) with washers (72003) and tighten.
 Fit insulation as far as necessary.
