Operation Manual / A100-L
9 Disassembly and assembly / 9.13 Dismantling the nozzle ring (
≥
A180-
L)
© Copyright 2021 ABB. All rights reserved.
HZTL4034_EN
Rev.T
December 2021
9.13
Dismantling the nozzle ring (
≥
A180-L)

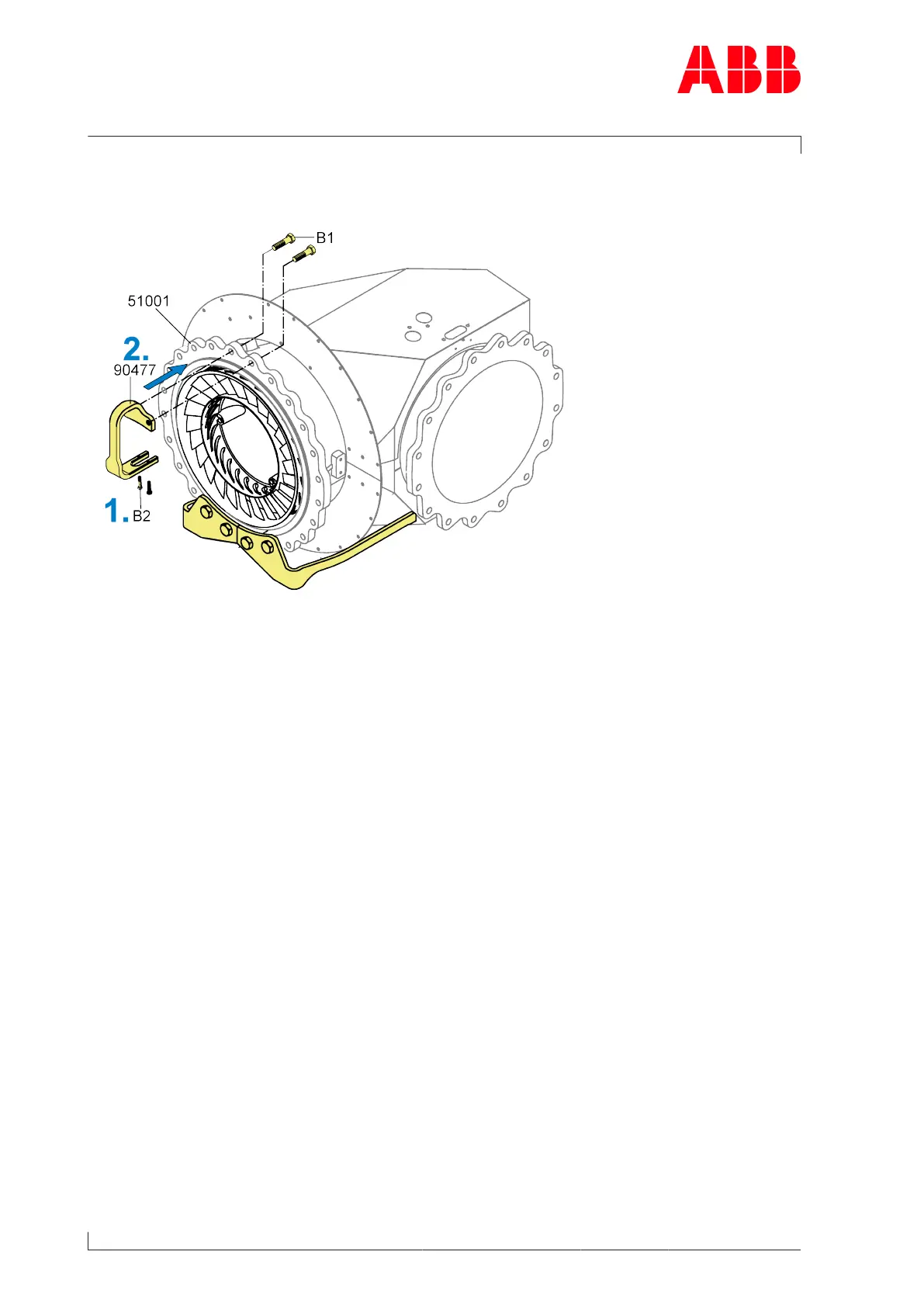

Fig.46: Fitting the nozzle ring holder
1.
Remove screws (B
2
).
2.
Fit the nozzle ring holder (90477) with screws (B
1
) at the top of the flange of the gas inlet
casing (51001).
Page 88 / 141
89
91
