Fitting the wall insert

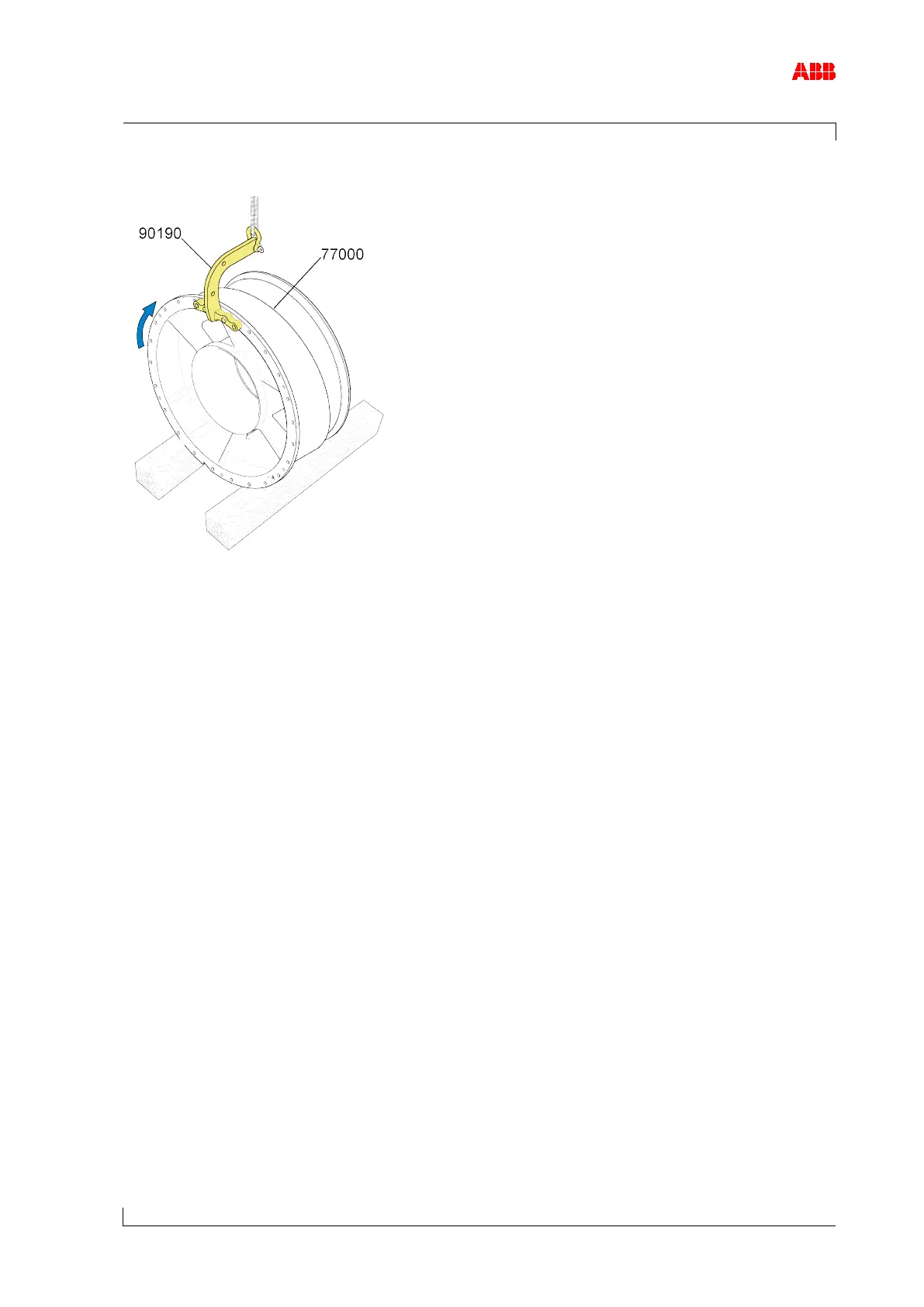

Figure 52: Positioning wall insert
 Carefully bring wall insert (77000) into vertical position with the lifting device (90190).
