Operation Manual / 4 Product description / A100-L
8
Disassembly and assembly
Page 63 /
111
© Copyright 2016 ABB. All rights reserved.
HZTL4034_EN
Revision F
June 2016

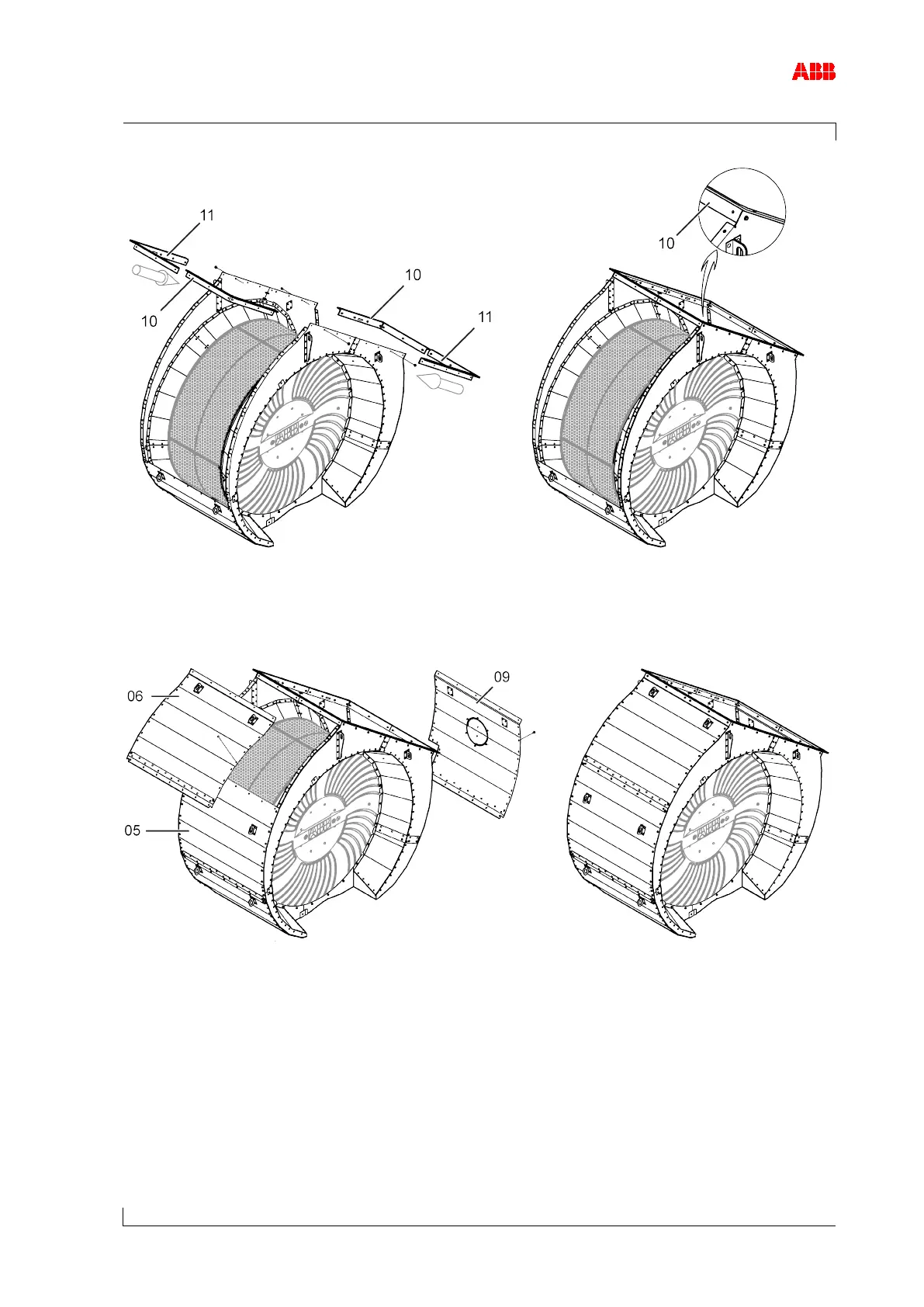

Figure 26: Fitting filter silencer casing 4
 Insert the flanges (10) and (11) laterally
between
the side parts and fit the screws.
Figure 27: Fitting filter silencer casing 5
 Fit the circumferential part (05) with the screws.
 Fit the circumferential part (06) with the screws.
 Fit the circumferential part (09) with the screws.
