Operation Manual / TPS44-F.. - TPS61-F..
Operation 4
Speed measurement 4.4 Page 50
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F
Speed measurement
4.4
A speed measuring system permits continuous monitoring of the turbo-
charger speed.
CAUTION
Do not use cables as a climbing aid
If you pull the speed measurement cables too hard, contacts can be
pulled out.
τ Do not tension the speed measurement cables.

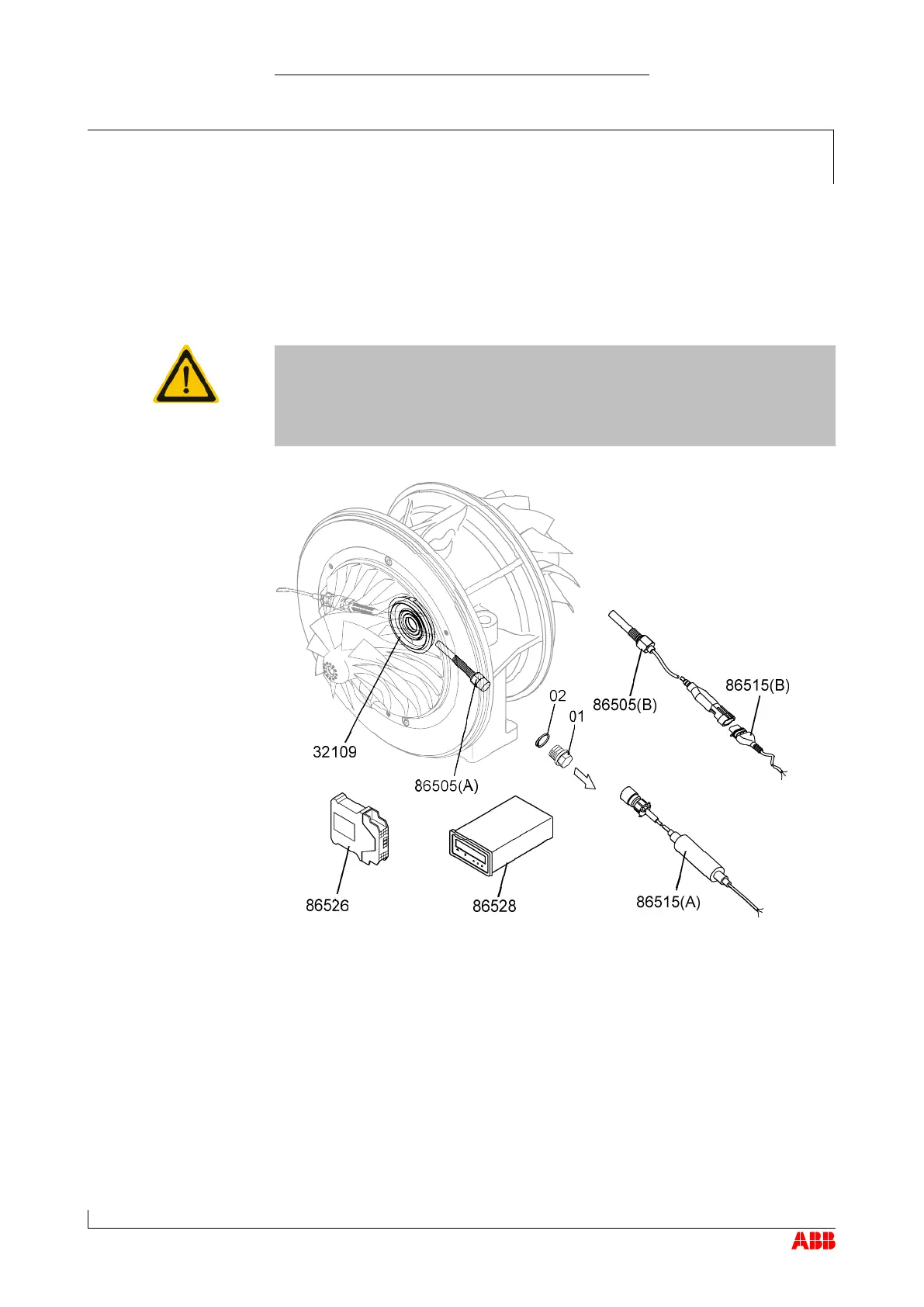

86505(A) Speed sensor (cable not integrated) 86526 F/I converter
86505(B) Speed sensor (cable integrated) 86528 Tachometer
86515(A) Cable connector to 86505(A) 01 Screw plug
86515(B) Cable connector to 86505(B) 02 Gasket
