Operation Manual / TPL67
-
C..
-
TPL71
-
C
..
Maintenance
5
Cleaning the filter silencer
5.2
Page 52
© Copyright 2017 ABB. All rights reserved.
February 2017
HZTL2488_EN
Revision D

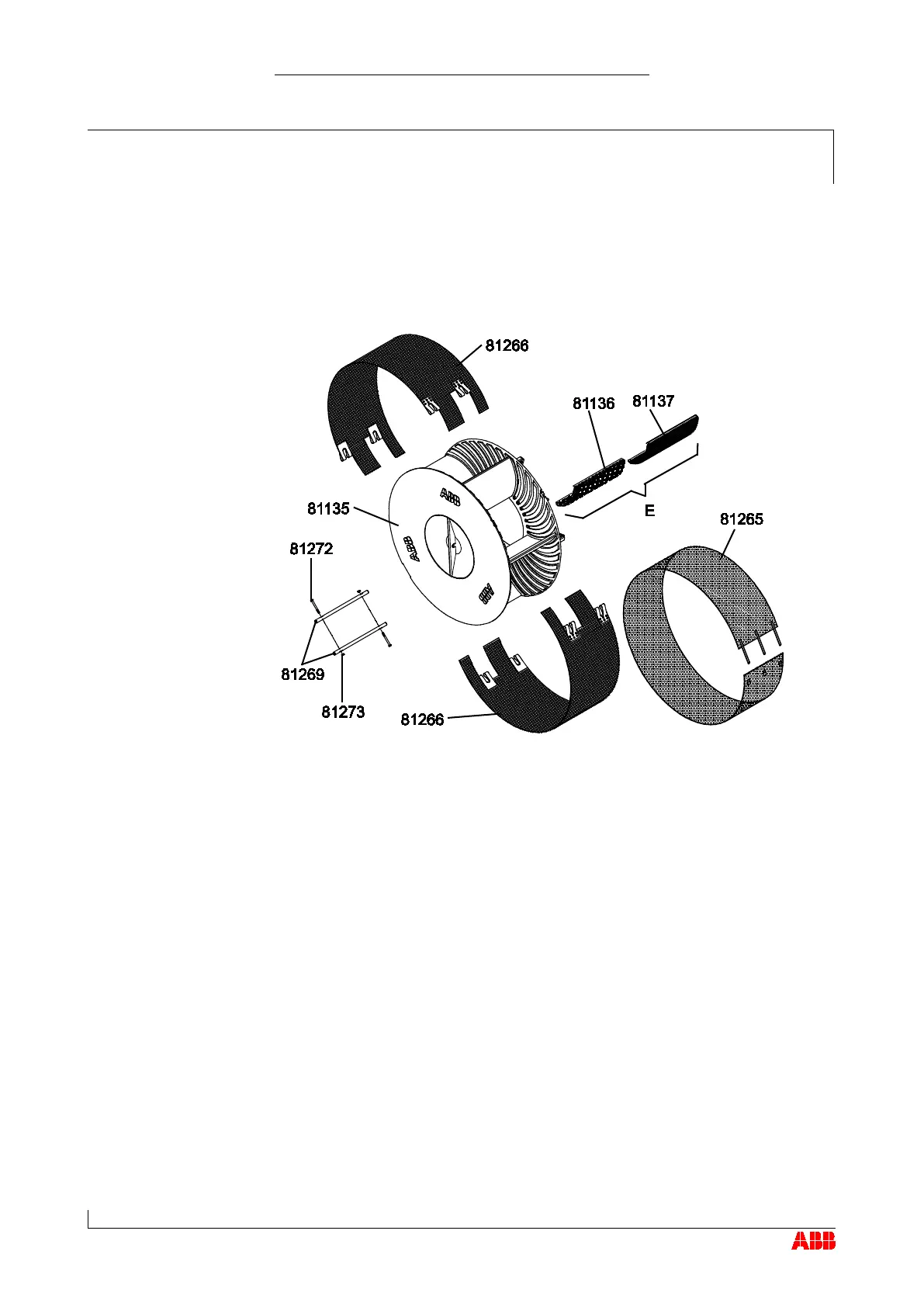

Cleaning the filter silencer
5.2
Filter silencer
and connecting r
od
81265
Filter ring (if provided
)
81136
Absorption segment
81269
Connecting rods
8113
7
Sheet
-
metal covering
81266
Cover grid
81135
Filter sile
ncer body
81272
Screwdrive
r
81273
Lock nut
E
Insert unit
= absorption seg
ment + sheetmetal
covering
5.2
5.2.1
53
55
