Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly 8
Disassembling and assembling
turbocharger
8.3 Page 104
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F

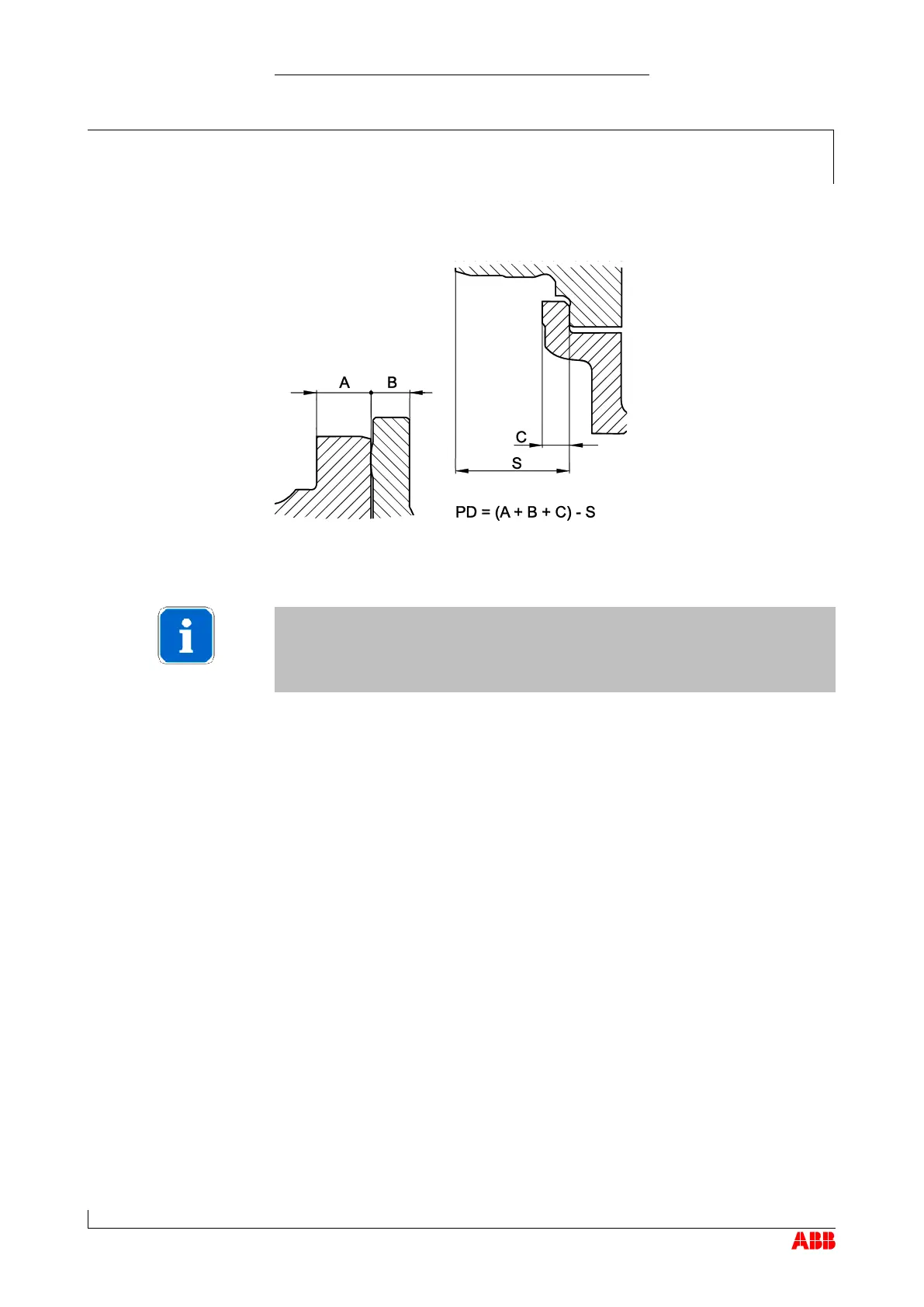

τ Calculate the press fit (PD) as shown.
NOTICE
If the calculated value (PD) is outside ±0.2 mm, an official ABB Turbo-
charging Service Station must be contacted.
τ Measure the axial and radial clearances (see the section Axial and ra-
dial clearances).
Nozzle ring press fit for
multiple inlet turbine cas-
To Next Page
