Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly 8
Disassembling and assembling
turbocharger
8.3 Page 105
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F

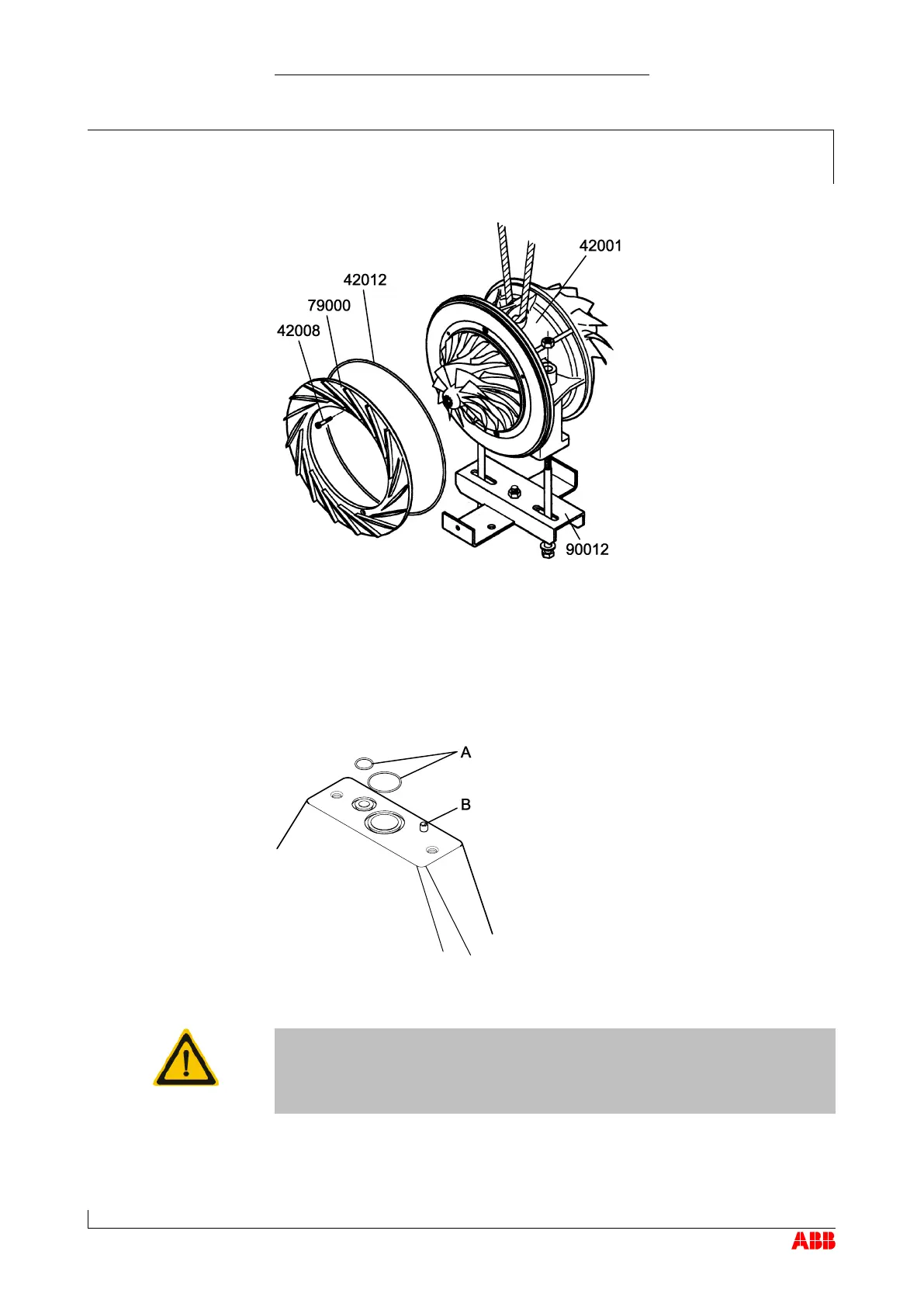

τ Fasten diffuser (79000) and O-ring (42012) using screw (42008).
τ Check lifting gear and fasten to bearing casing (42001).
τ Unscrew the cartridge group and lift it out of the service support
(90012).
τ Apply high-temperature grease to the centering points and screw
threads.
τ Remove temporary covers from oil connections.
CAUTION
Don't damage or shift gasket rings (A) in the mounting support when
fitting the cartridge group. The gasket rings (A) are supplied by the en-
gine builder.
Assembly of diffuser
