9.5 Removing the compressor casing

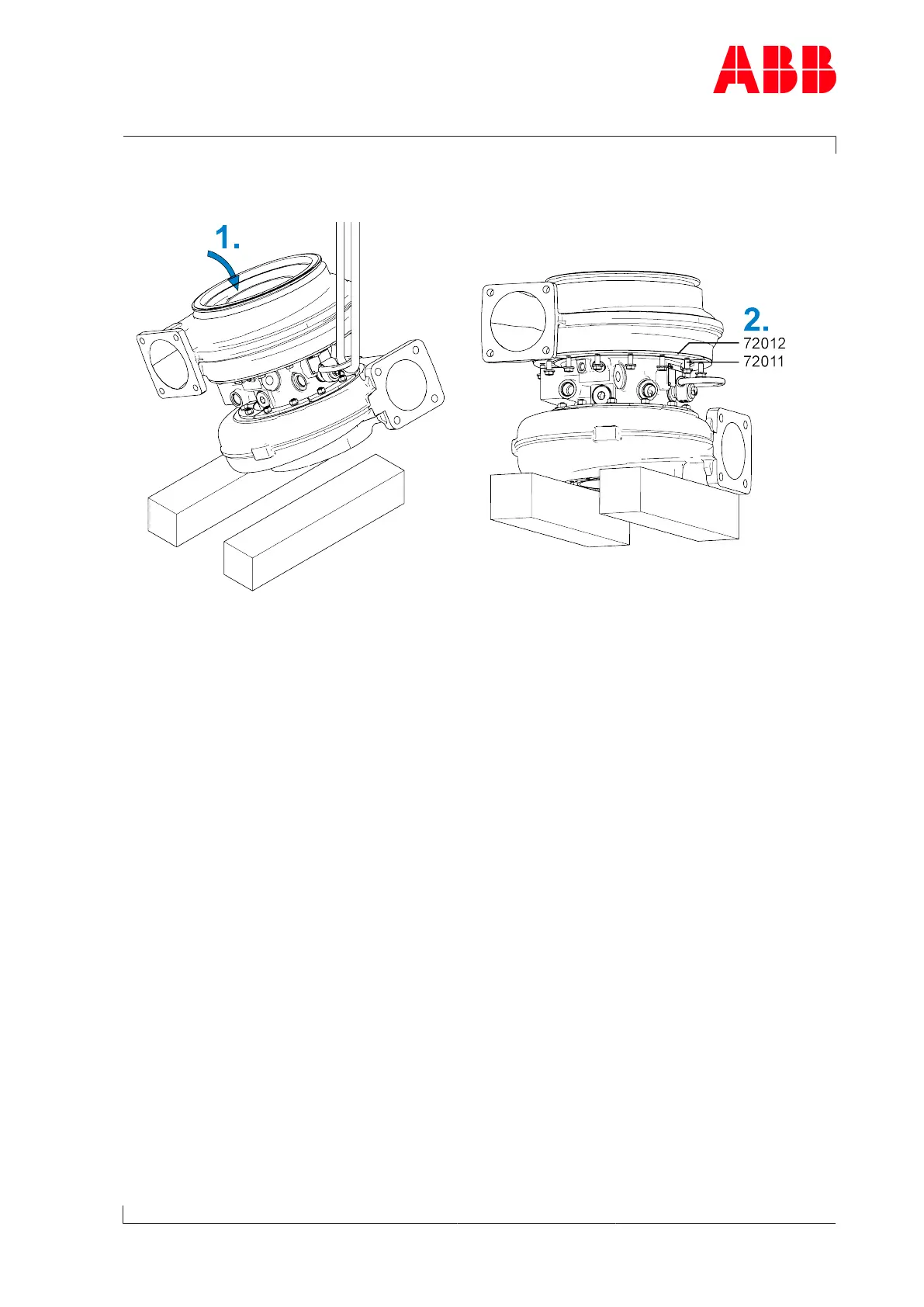

Fig.20: Removing the compressor casing (1/2)
1. Place the turbocharger in a vertical position on a soft underlay.
2. Loosen the hexagon-head screws(72011) and remove them with fastening strips(72012).
