8.11 Installing the cartridge group on the service
support

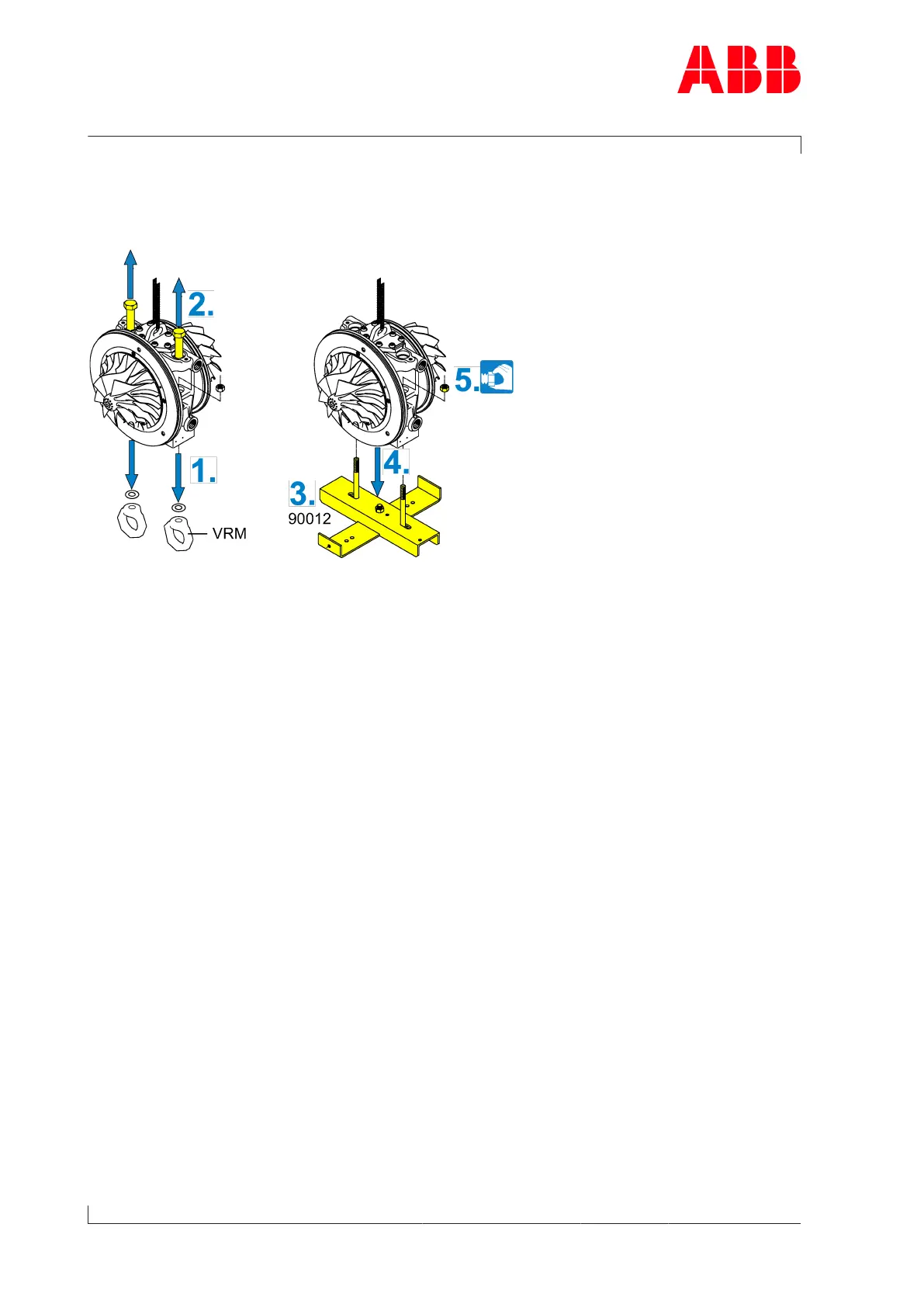

Fig.46: Installing the cartridge group on the service support
1. Remove ring nuts(VRM).
2. Remove service support screws.
3. Fit service support(90012) according to the illustration.
4. Insert the cartridge group.
5. Fit the nuts.
