5.2.5 Other service work
If a protective grid is installed in the gas outlet casing(61001) by ABB:

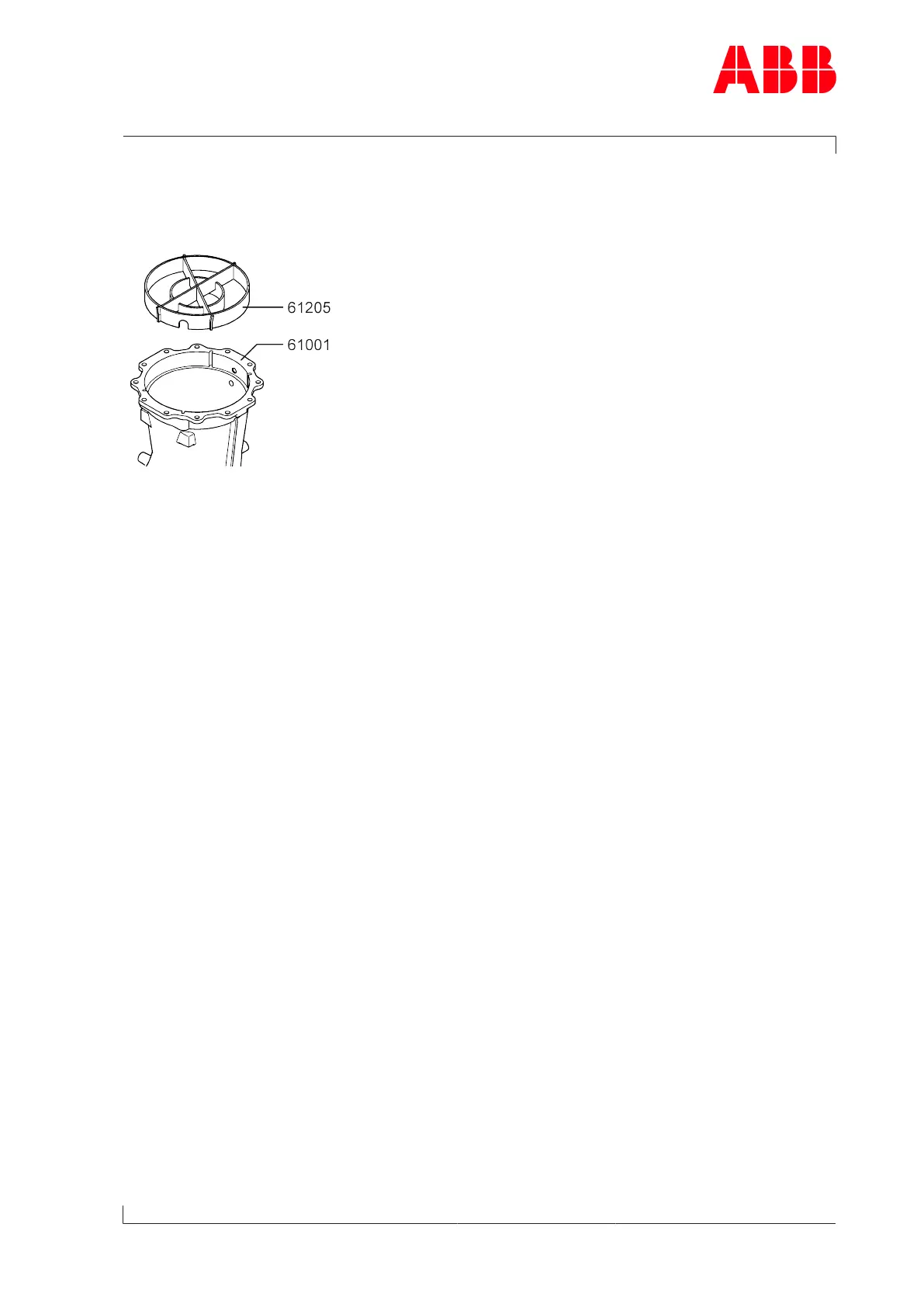

Fig.23: Replacing the protective grid
u Remove the protective grid(61205) after 50000 hours and replace it with a new protect-
ive grid.
