Operation Manual / TPS44-H.. - TPS52-H..
5 Monitoring operation / 5.3 Turbocharger speed
© Copyright 2021 ABB. All rights reserved.
HZTL4037_EN
Rev.F
May 2021
5.3.2
Layout and overview

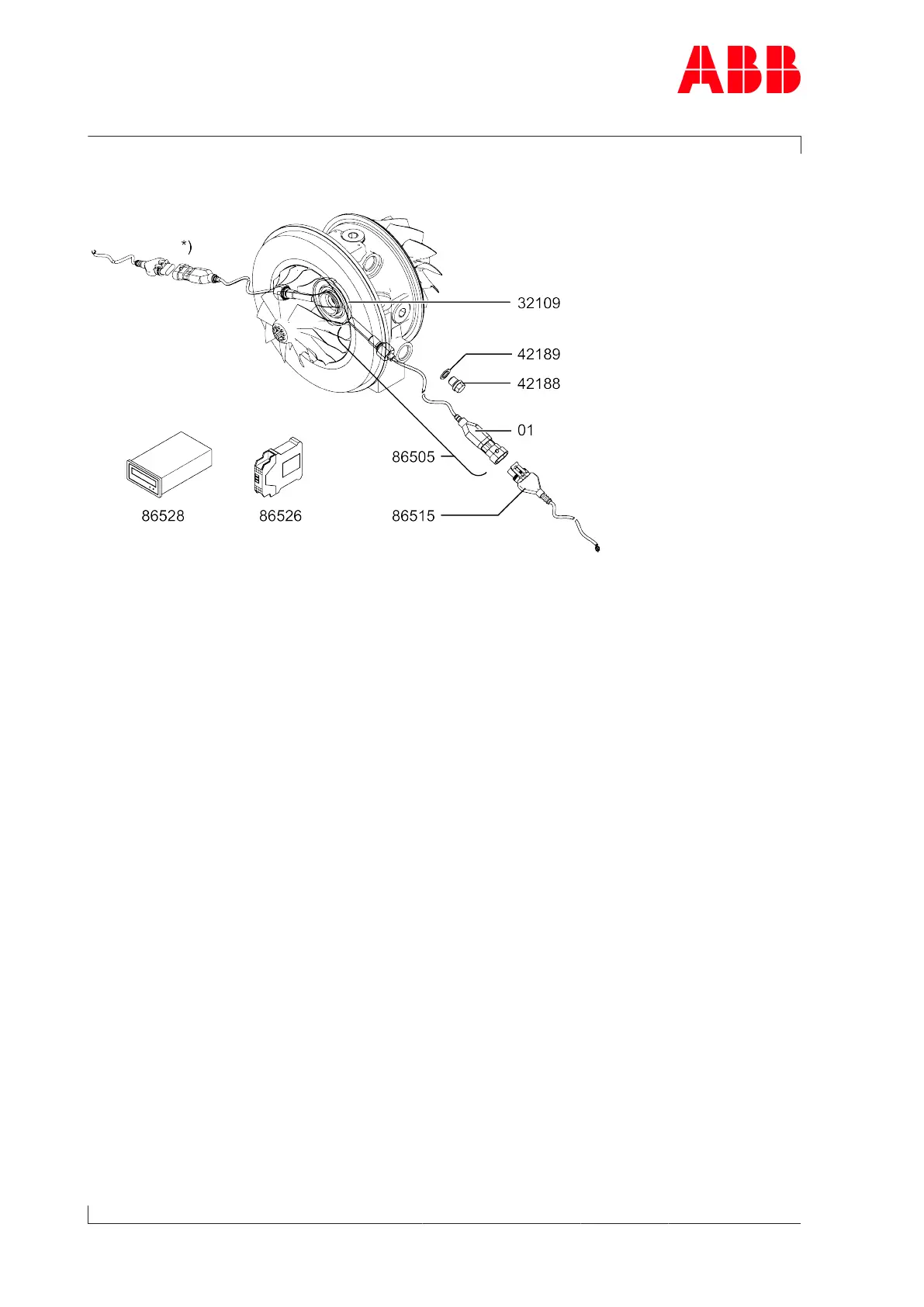

Fig.16: Layout and overview of the speed measurement system
86505
Speed sensor
42188
Screw plug
86515
Cable connector
42189
Gasket
86526
F/I converter
01
Plug with integrated voltage limiter
86528
Tachometer
*)
Alternative mounting position for speed
sensor
32109
Sealing disc
