Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.4 Removing the gas outlet casing
© Copyright 2021 ABB. All rights reserved.
HZTL4037_EN
Rev.F
May 2021
10.4
Removing the gas outlet casing
u
Mark the casing position for assembly.

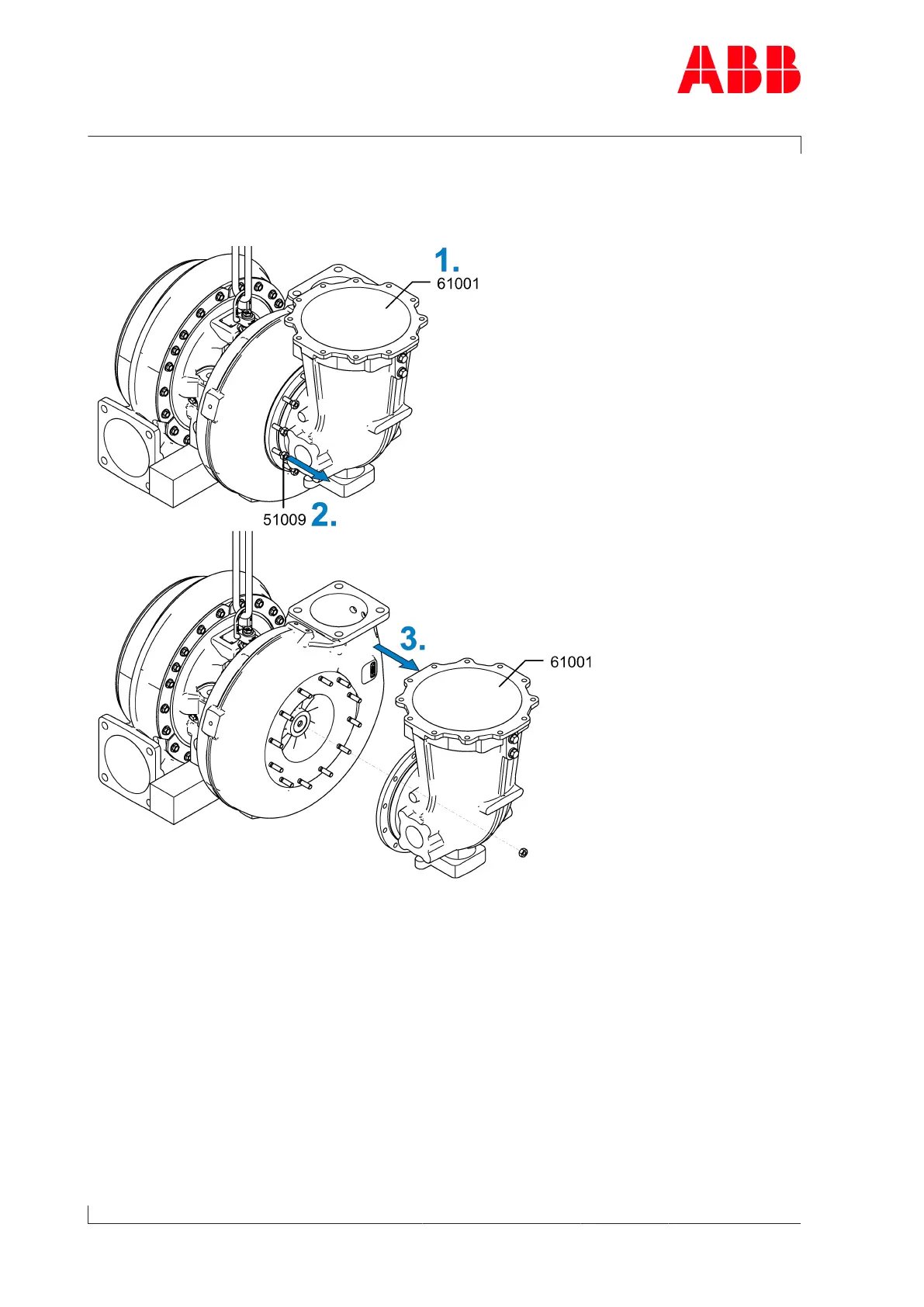

Fig.26: Removing the gas outlet casing
1.
Manually secure the gas outlet casing(61001).
2.
Loosen and remove hexagon nuts(51009).
3.
Remove the gas outlet casing(61001).
