Operation Manual / A170-M.. - A175-M..

10 Taking a turbocharger out of operation / 10.3 Fitting the cover plate

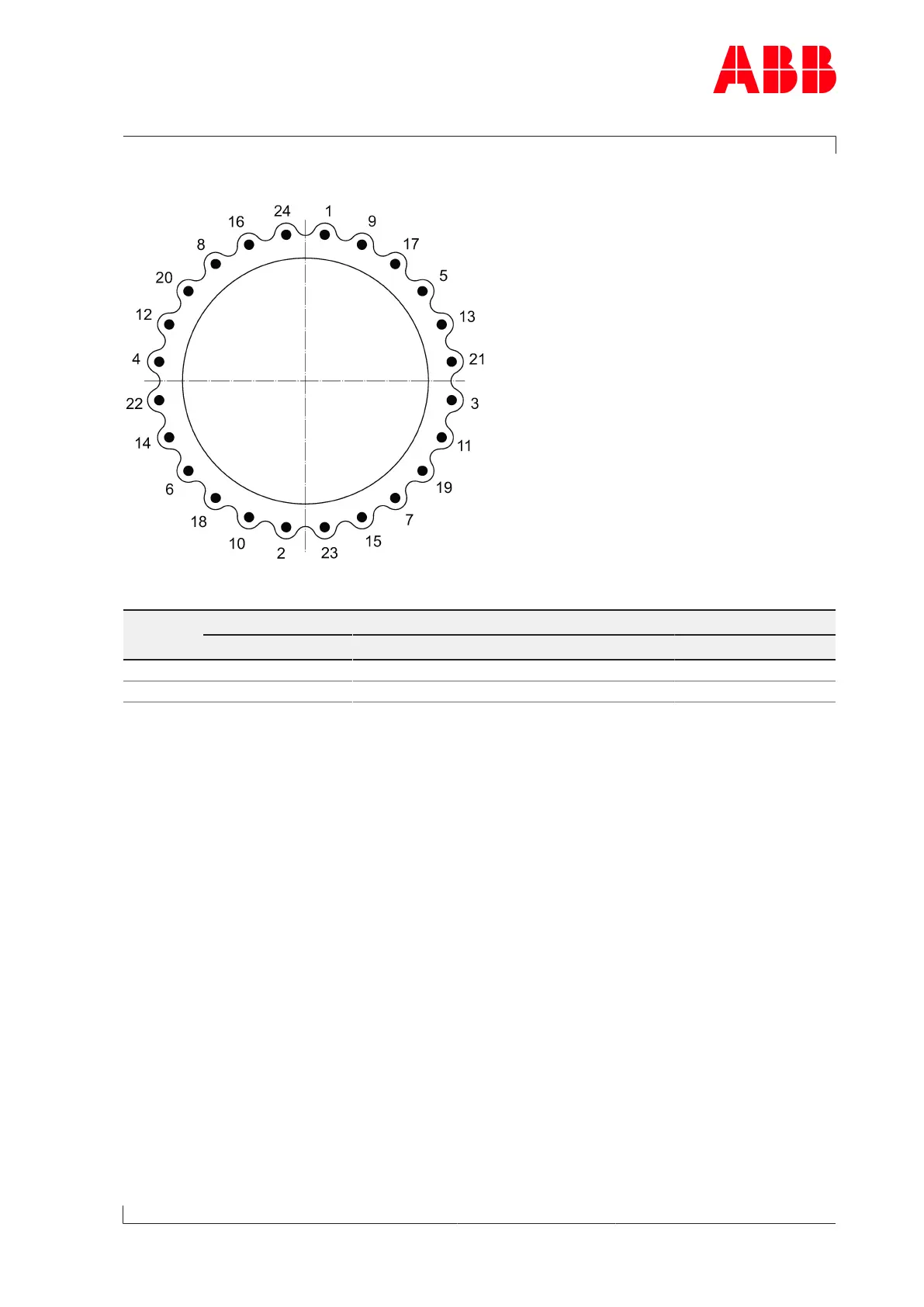

10.3 Fitting the cover plate

The cover plate (01) and spacer sleeves (02) (material: general construction steel, in compli-

ance with DIN EN 10025-2) must be manufactured according to the drawing from the oper-

ator.

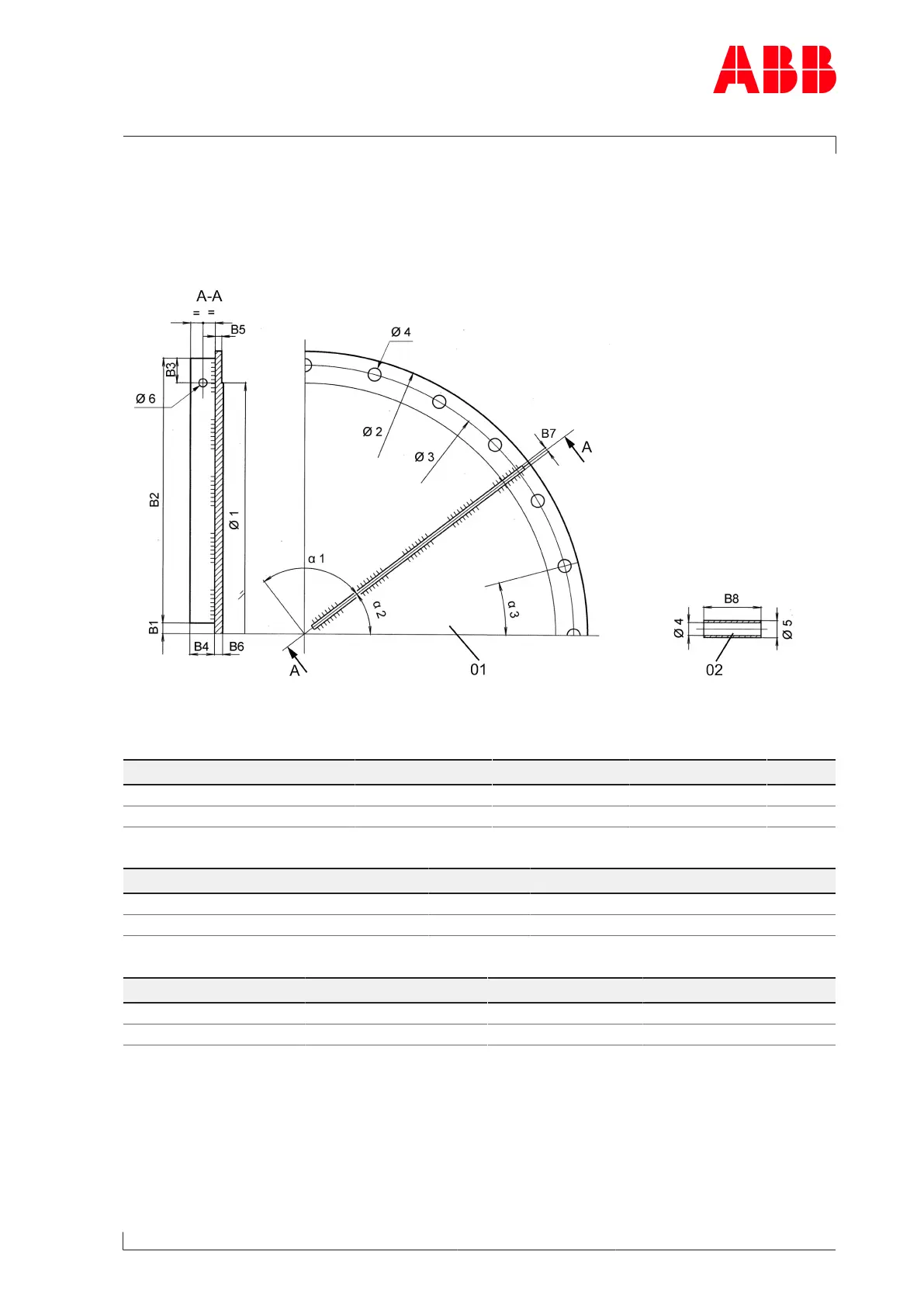

Fig.75: Cover plate (01) / spacer sleeves (02) dimensions

Cover plate (01) / spacer sleeves (02) dimensions [mm]

Product B1 B2 B3 B4 B5 B6 B7 B8

A170-M 13 432 50 50 9 12 8 96

A175-M 13 500 50 50 9 12 8 112

Table57: Cover plate dimensions 1

Product Ø 1 Ø 2 Ø 3 Ø 4 Ø 5 Ø 6

A170-M 835 915 872.4 24 34 20

A175-M 965 1050 1007.5 26 36 20

Table58: Cover plate dimensions 2

Product

⍺

A170-M 4 x 90° 37.5° 24 x 15°

A175-M 4 x 90° 37.5° 24 x 15°

Table59: Cover plate dimensions 3

Page 123 / 146
