Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.13 Installing the air inlets
© Copyright 2021 ABB. All rights reserved. HZTL4033_EN Rev.H July 2021
9.13 Installing the air inlets
9.13.1 Installing the air suction branch

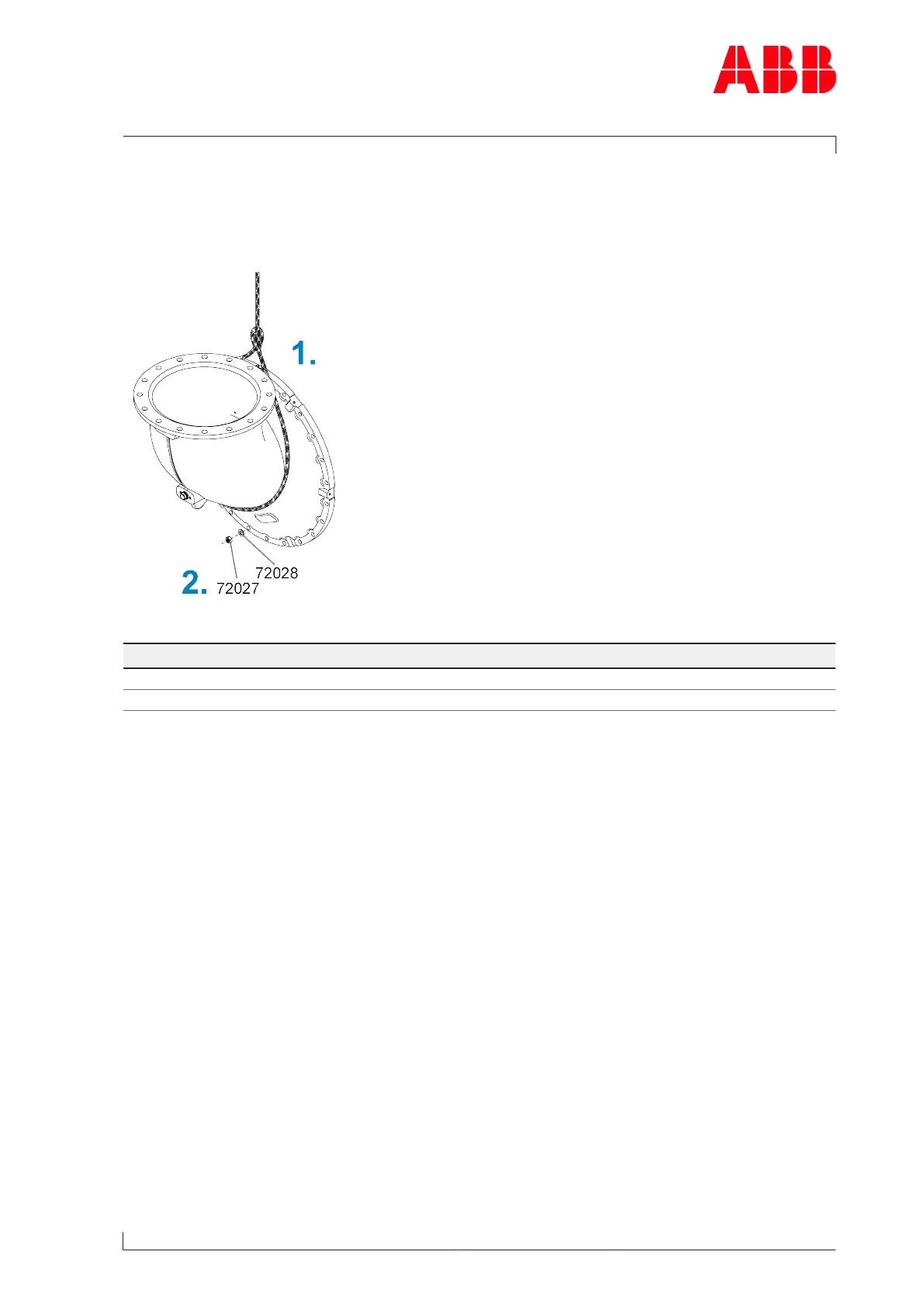

Fig.65: Installing the air suction branch
Product Size Tightening torque [Nm]
A175-M M20 220
A170-M M18 170
Table50: Tightening torque(72027)
1. Loop lifting gear around air suction branch.
2. Fit air suction branch together with nuts (72027) and washer(72028). Observe tightening
torque.
u Disconnect all air lines according to the instructions of the enginebuilder.
u Dismantle insulation as far as necessary.
Page 109 / 147
