ABB HT606839 - Installing the Nozzle Ring; Fig. 50: Installing Nozzle Ring 1

Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.8 Installing the nozzle ring
© Copyright 2021 ABB. All rights reserved. HZTL4033_EN Rev.H July 2021
9.8 Installing the nozzle ring

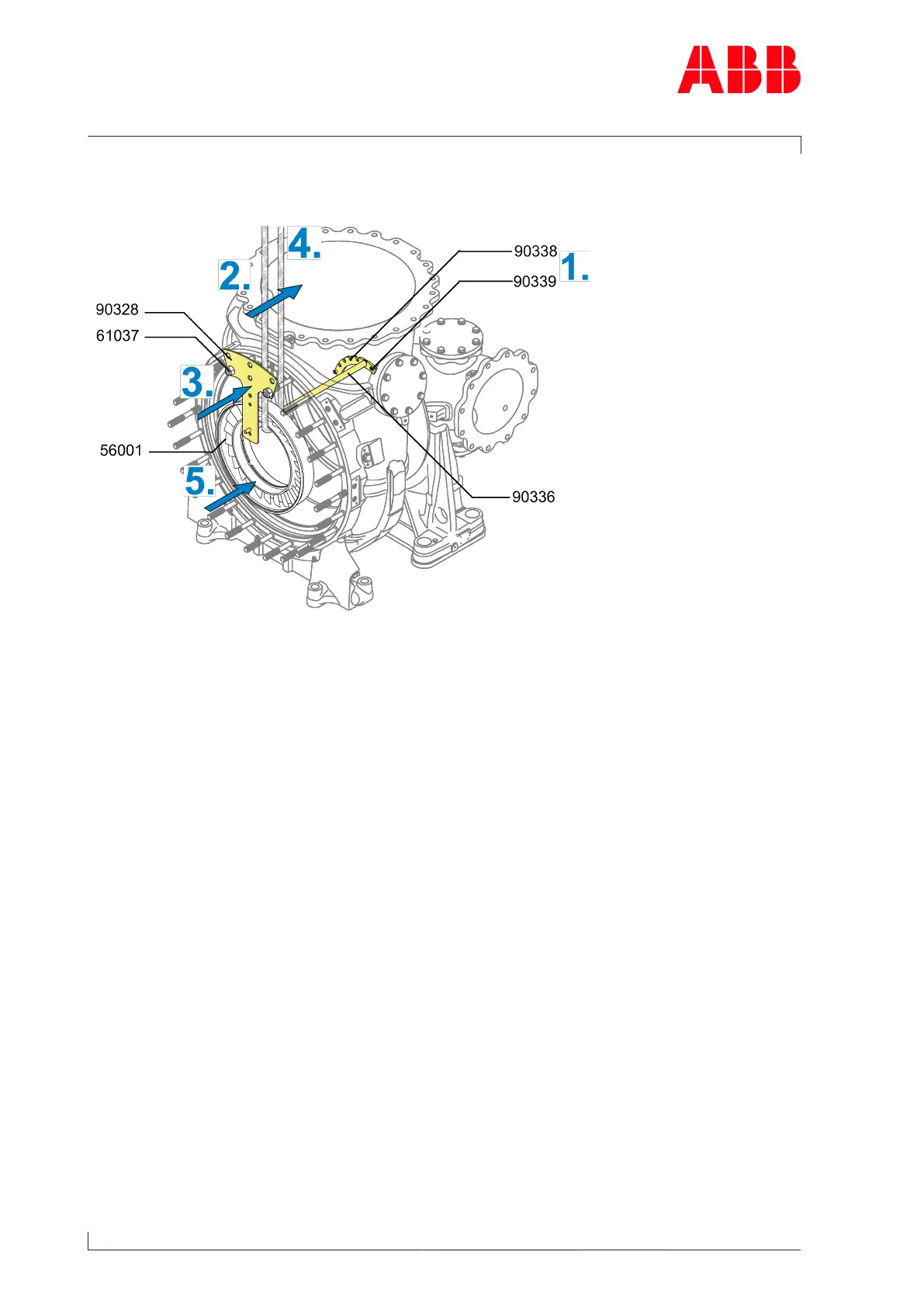

Fig.50: Installing nozzle ring 1
1. Secure retaining plate (90338) with screws (90339) and hook in guide rod (90336).
2. Using lifting gear, position nozzle ring (56001) on guide rod (90336). Do not take strain
off lifting gear yet.
3. Fit guide plate (90328) with nuts (61037).
4. Remove the lifting gear.
5. Position nozzle ring (56001) in gas outlet casing.
