Operation Manual / A170-M.. - A175-M..
10 Taking a turbocharger out of operation / 10.3 Fitting the cover plate
© Copyright 2021 ABB. All rights reserved. HZTL4033_EN Rev.H July 2021

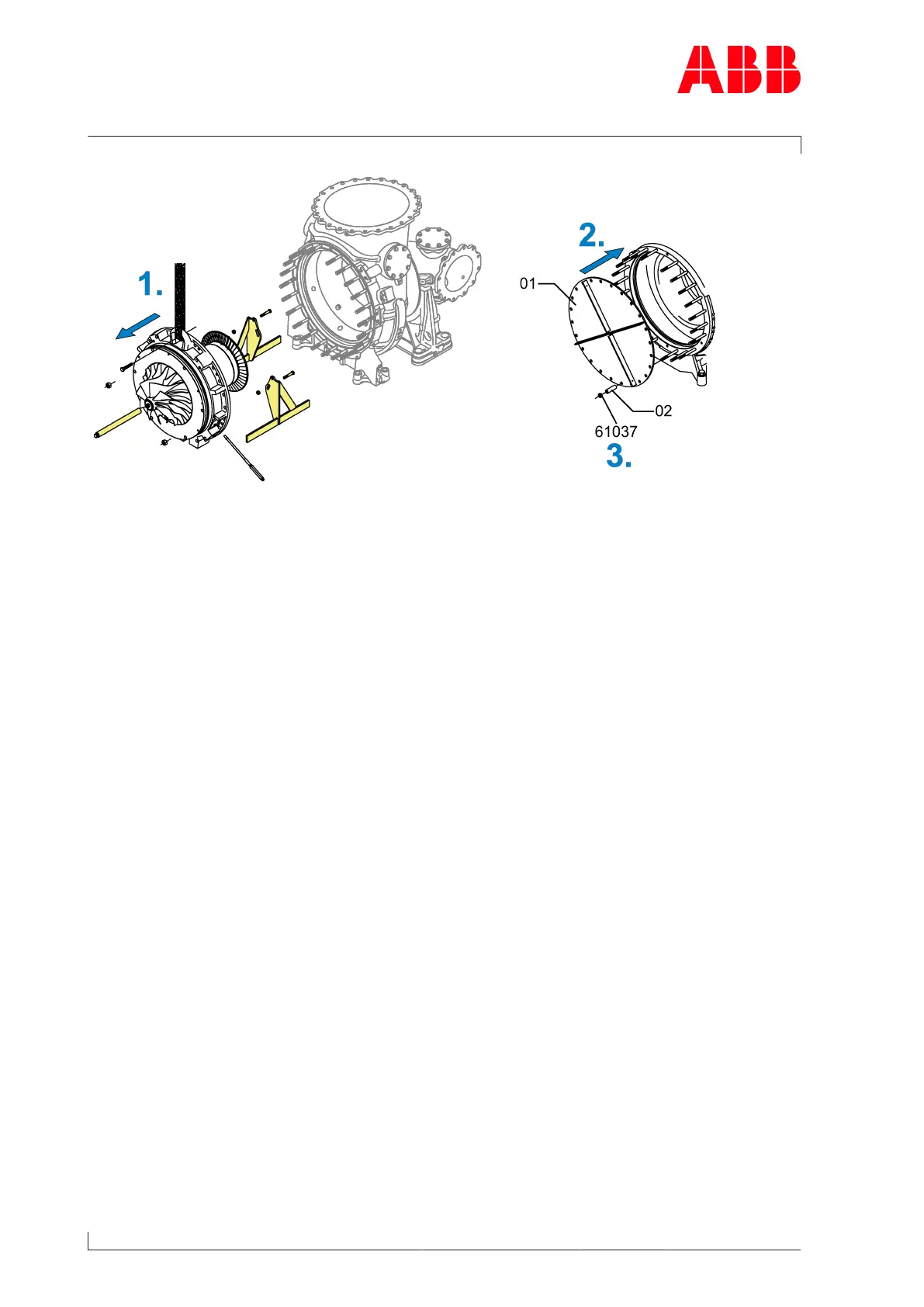

Fig.76: Fitting the cover plate
1. Remove the cartridge group (see chapter Disassembly and assembly / Removing the
cartridge group).
2. Close the opening in the gas outlet casing with the cover plate (01).
3. Attach cover plate with spacer sleeves (02) and nuts (61037).
u Close the lubricating oil supply to the turbocharger.
10.3.1 Further measures and information for the operation of
4-stroke engines with a cover plate of the turbocharger
4-stroke engine with a turbocharger
No further measures are necessary. The engine can be operated as a suction engine accord-
ing to the instructions of the enginebuilder.
4-stroke engine with several turbochargers
Separate receivers
In engines with separate air and exhaust gas receivers, no further measures are necessary.
The engine can be operated as a suction engine according to the instructions of the en-
ginebuilder.
