9.10 Removing the nozzle ring

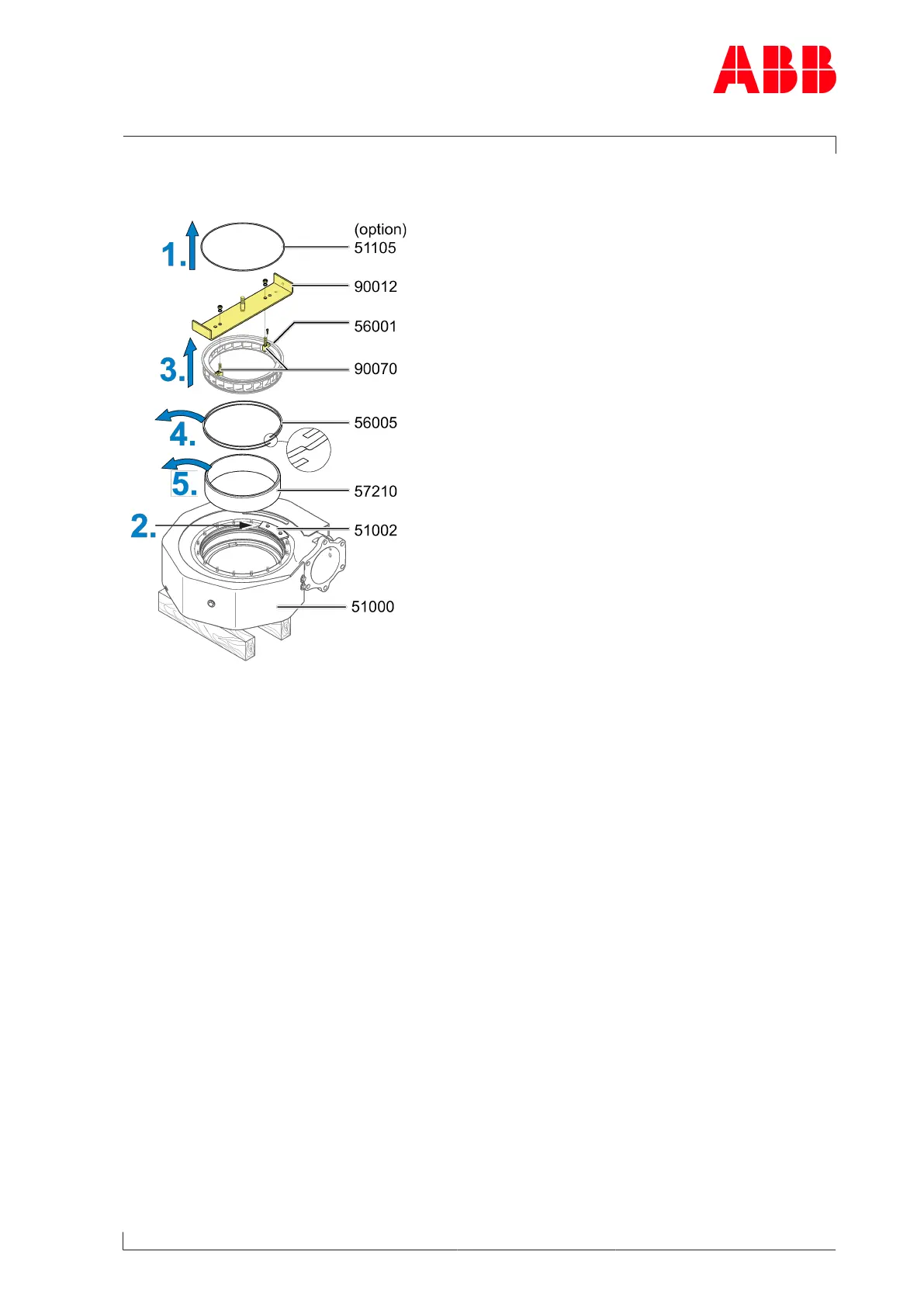

Fig.52: Removing the nozzle ring
1. If present: Remove the metal C-ring(51105).
2. Position the fastening strips(51002) in place.
3. Pull out the nozzle ring(56001) with the two extraction devices(90070) and the service
support base(90012).
4. Remove the lamellar sealing ring (56005).
5. Remove the burst ring(57210).
