Removing internal part of compressor
casing
8.6
Page 103
© Copyright 2016 ABB. All rights reserved.
May 2016 HZTL2491_EN Revision B

Remove screws (76002).
 Loop lifting gear around diffuser (79000) and remove diffuser.
 Carefully press off the wall insert (77000) using the press-off screws
(90900) and remove it using the swivel lifting eye (90230).
 Remove O-rings (77005, 77006).

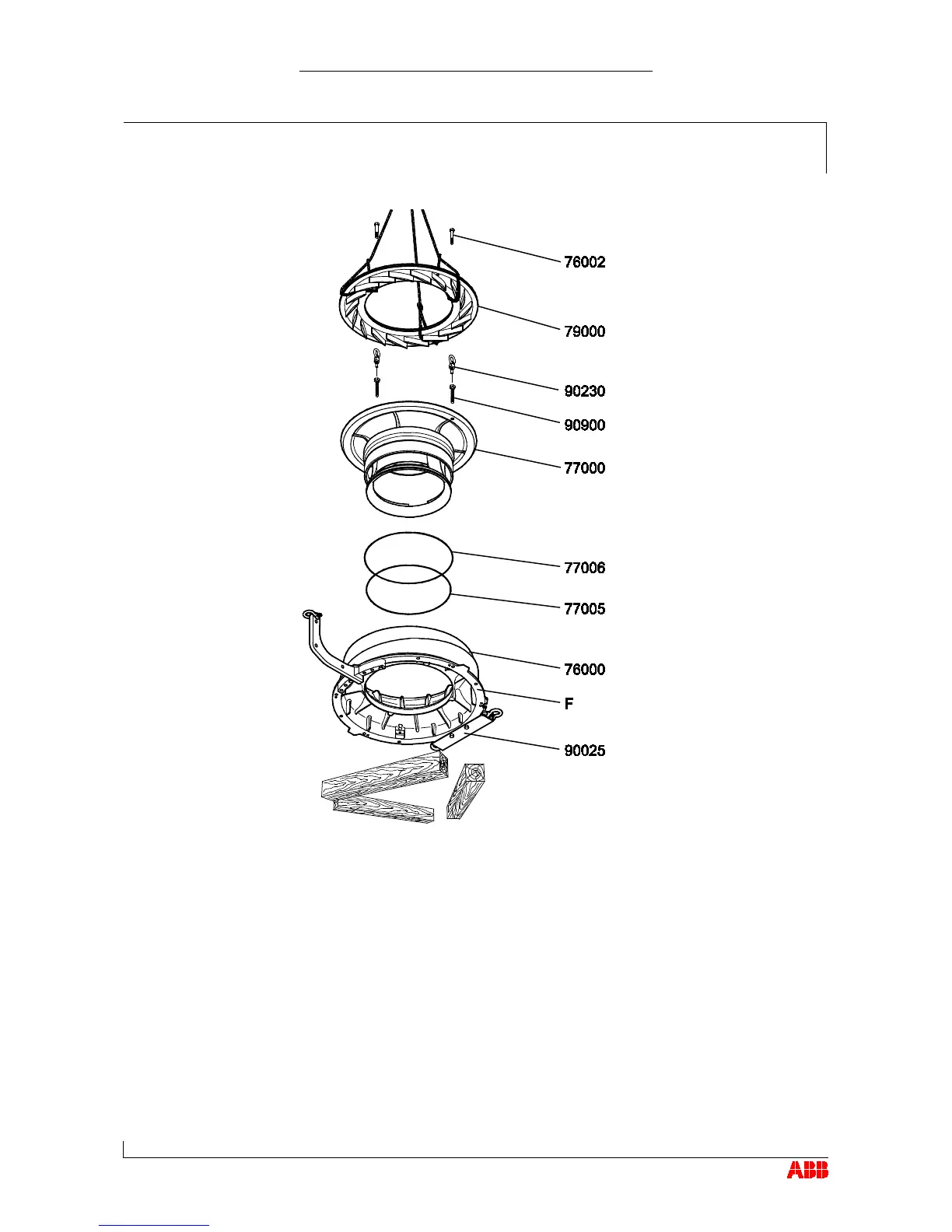

Removing the diffuser
