Speed measurement
4.4
A speed measuring system permits continuous monitoring of the turbo-
charger speed.
CAUTION
Do not use cables as a climbing aid
If you pull the speed measurement cables too hard, contacts can be
pulled out.
 Do not tension the speed measurement cables.

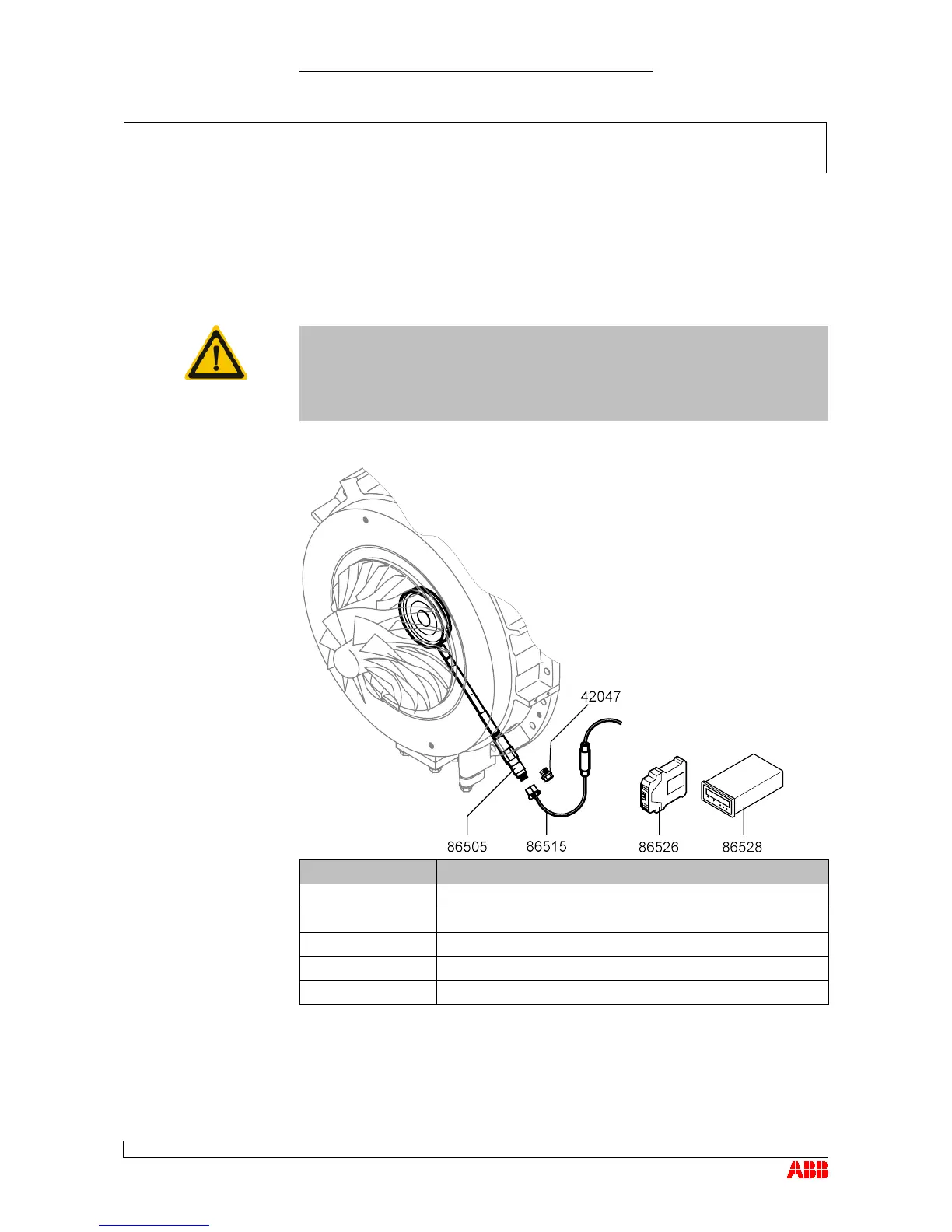

Part number
Description
42047 Screw plug
86505 Speed sensor
86515 Cable connector for 86505
86526 F/I converter
86528 Tachometer
