May 2016 HZTL2491_EN Revision B

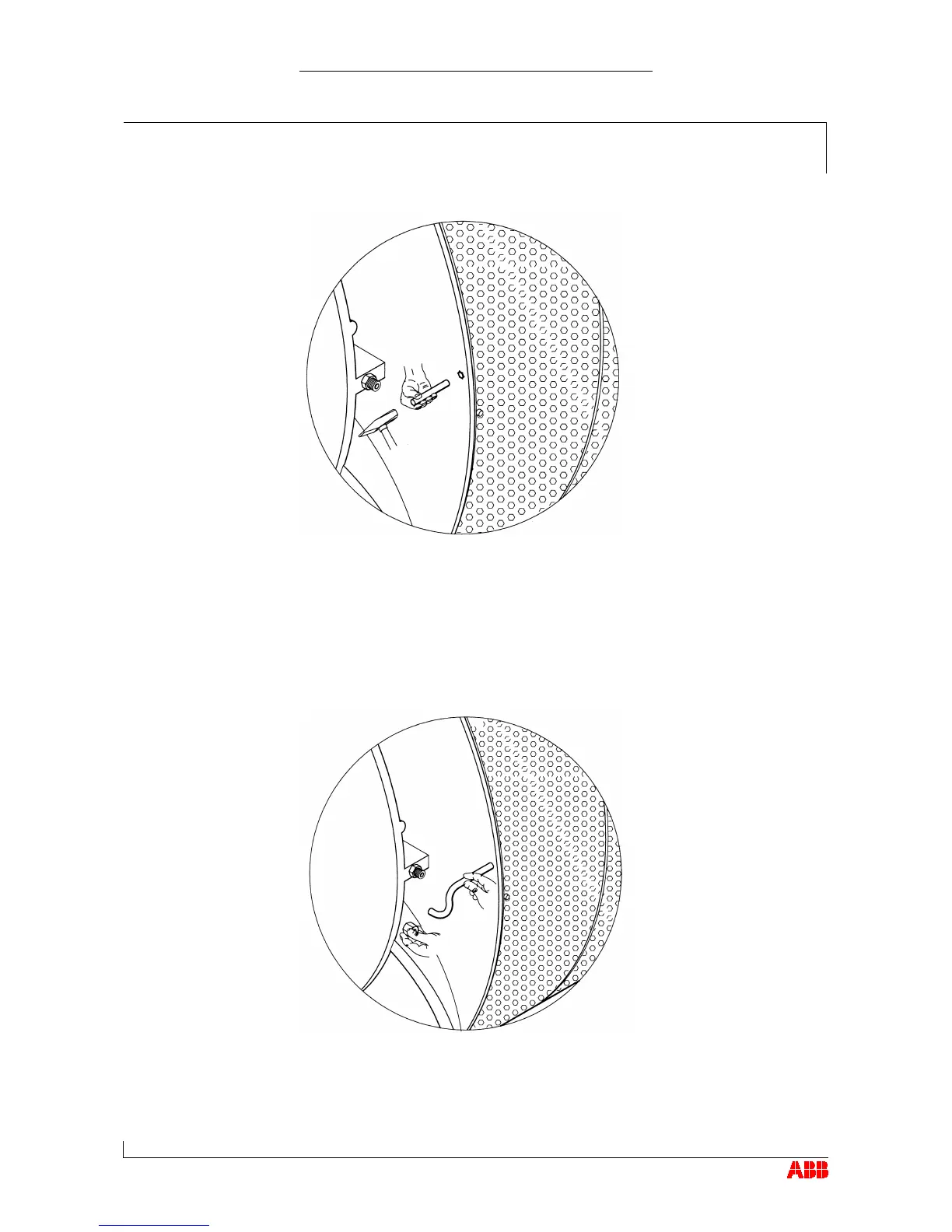

Hammer guide tube (03) free from peen fixing using a bolt
(diameter = 16 mm) and withdraw it.
Replace damaged parts of the complete cleaning pipe with original parts
from ABB Turbo Systems.
Refit guide tube (03) and peen fix it after putting insert units (E) in
place.
Fit feed pipe (02) and screw onto injection pipe (01) using connector.
