Operation Manual / TPL85-B14/-B15/-B16
© Copyright 2016 ABB. All rights res
May 2016 HZTL2491_EN Revision B
Screws on the silencer casing
All
silencer casing screws may be tightened only
when assembly work
is finished
. Only then is it possible for all parts to be fitted.
Do
tighten screws during assembly.

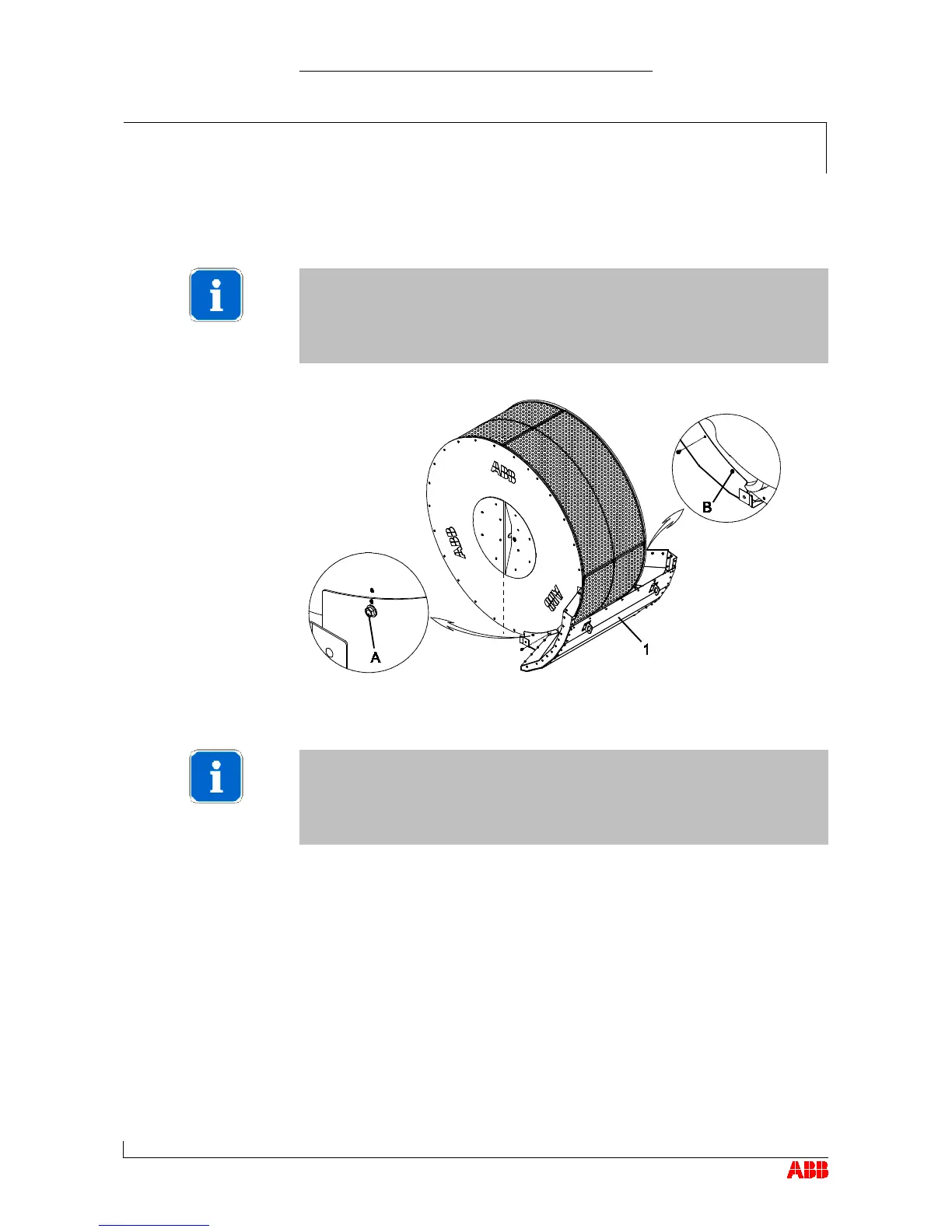

Fit bottom part (1) to filter silencer using screws (A) and (B).
The position of screw (A) serves as a reference for correct fitting of the
silencer casing.
Before removal of bottom part (1), mark position of screw (A).
Fit all remaining screws on bottom part (1).
