Operation Manual / TPL85-B14/-B15/-B16
Disassembly and assembly
8
Silencer casing
8.3
Page 97
© Copyright 2016 ABB. All rights reserved.
May 2016 HZTL2491_EN Revision B
Tightening screws
Screws for fastening individual parts to the filter
silencer
Screws for fastening individual
parts
M10
30
M8
25
 Tighten all screws of bottom parts (1) and (2).
 Tighten all screws of side parts (3, 4, 7 and 8) and flanges (10 and 11).
 Tighten all screws of circumferential parts (5, 6 and 9).

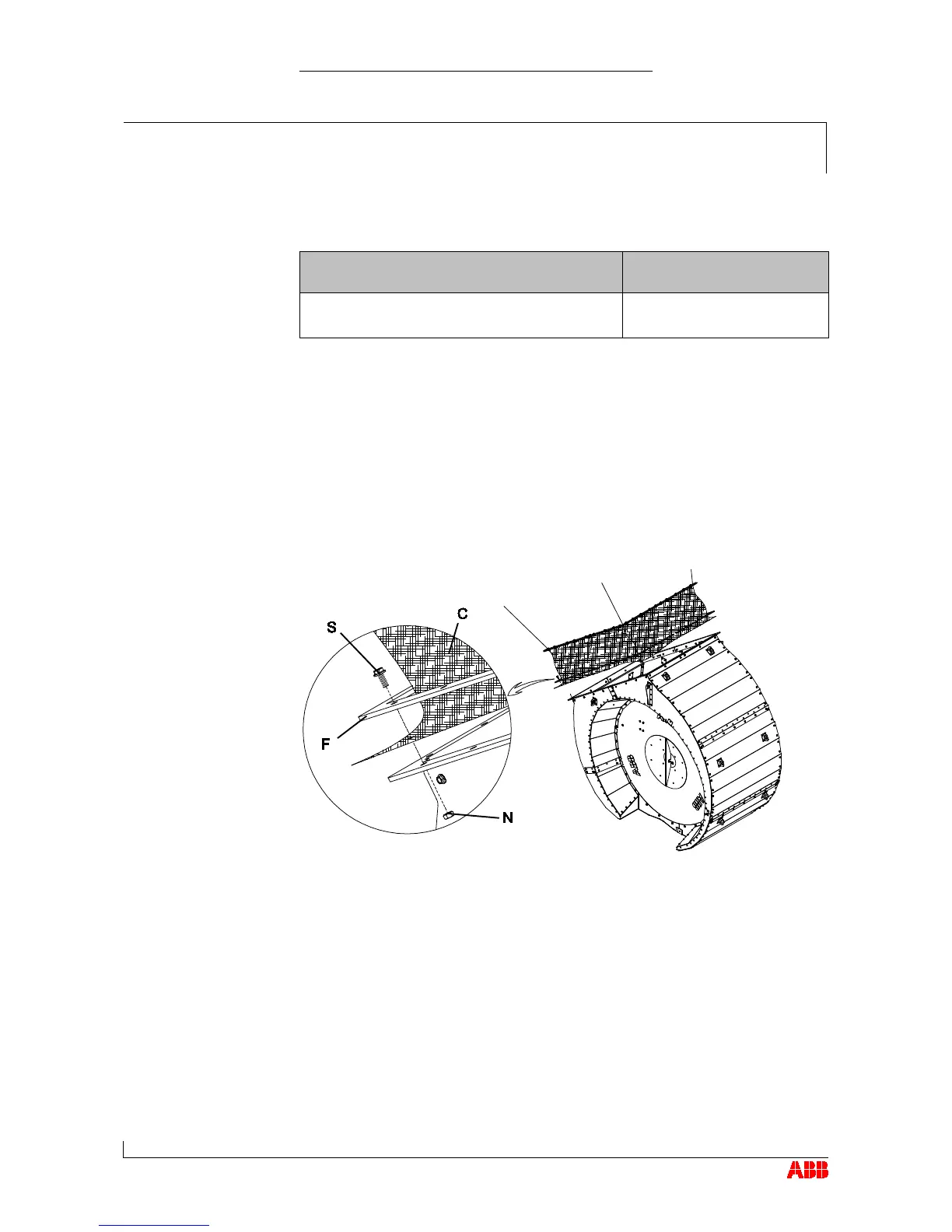

Compensator
 Fit bellows (C) to silencer casing using frame (F), screws (S) and nuts (N).
Tightening torques [Nm]
