Operation Manual / TPL65-A10 / -A30
9 Taking out of operation at short notice / 9.2 Fit cover plate
© Copyright 2020 . All rights reserved. HZTL2482_EN Rev.E March 2020

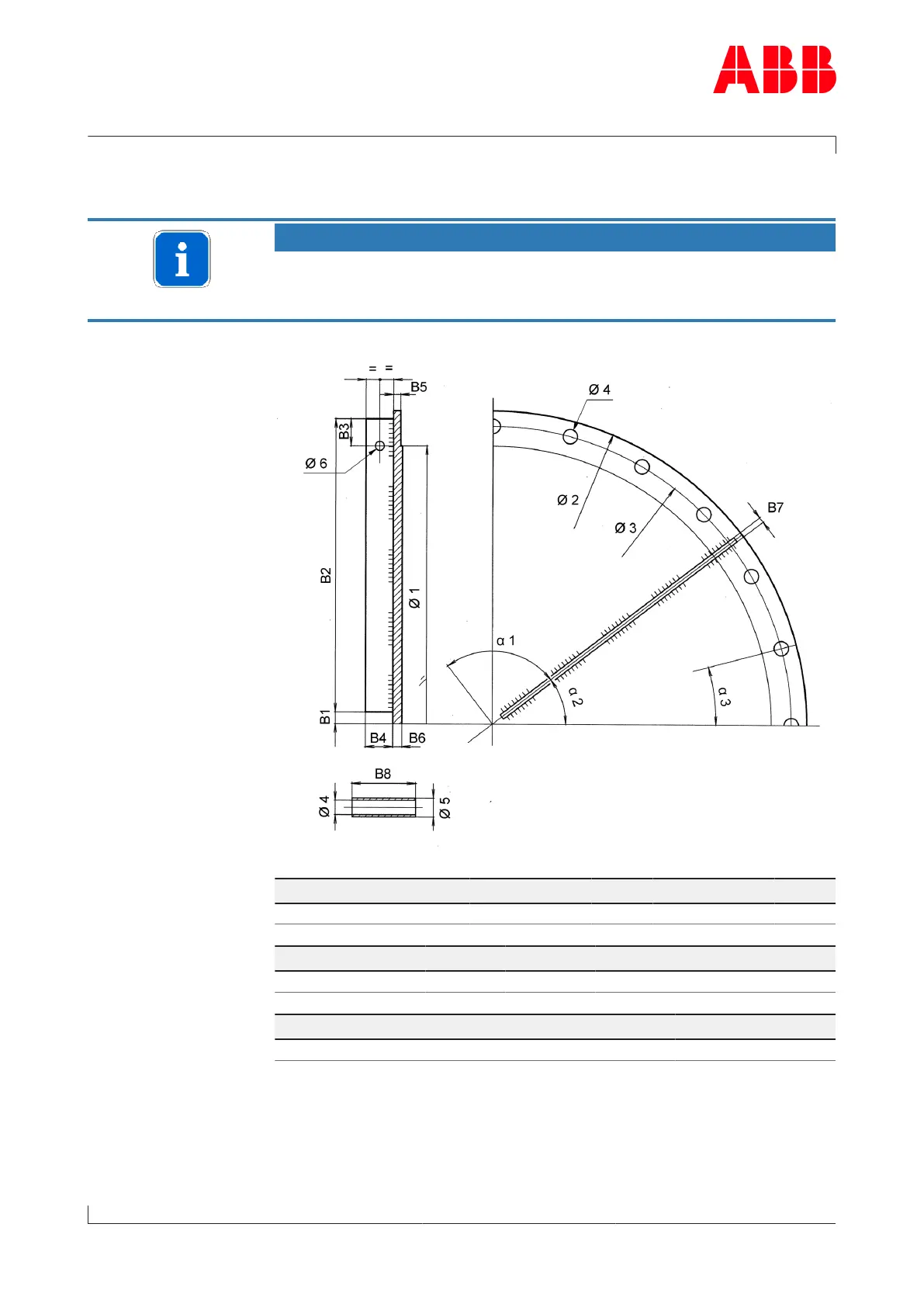

9.2 Fit cover plate
NOTICE
The cover plate (material: General structural steel, in accordance with
DIN EN 10025-2) must be manufactured in-house according to the
drawing.
Cover plate dimensions
[mm]
Product B1 B2 B3 B4 B5 B6 B7 B8
TPL65 13 325 30 30 8 10 6 70
Product Ø 1 Ø 2 Ø 3 Ø 4 Ø 5 Ø 6
TPL65 616 694 660 16 22 15
Product
α
1
α
2
α
3
TPL65 4 x 90° 37.5° 24 x 15°
Page 104 / 117
