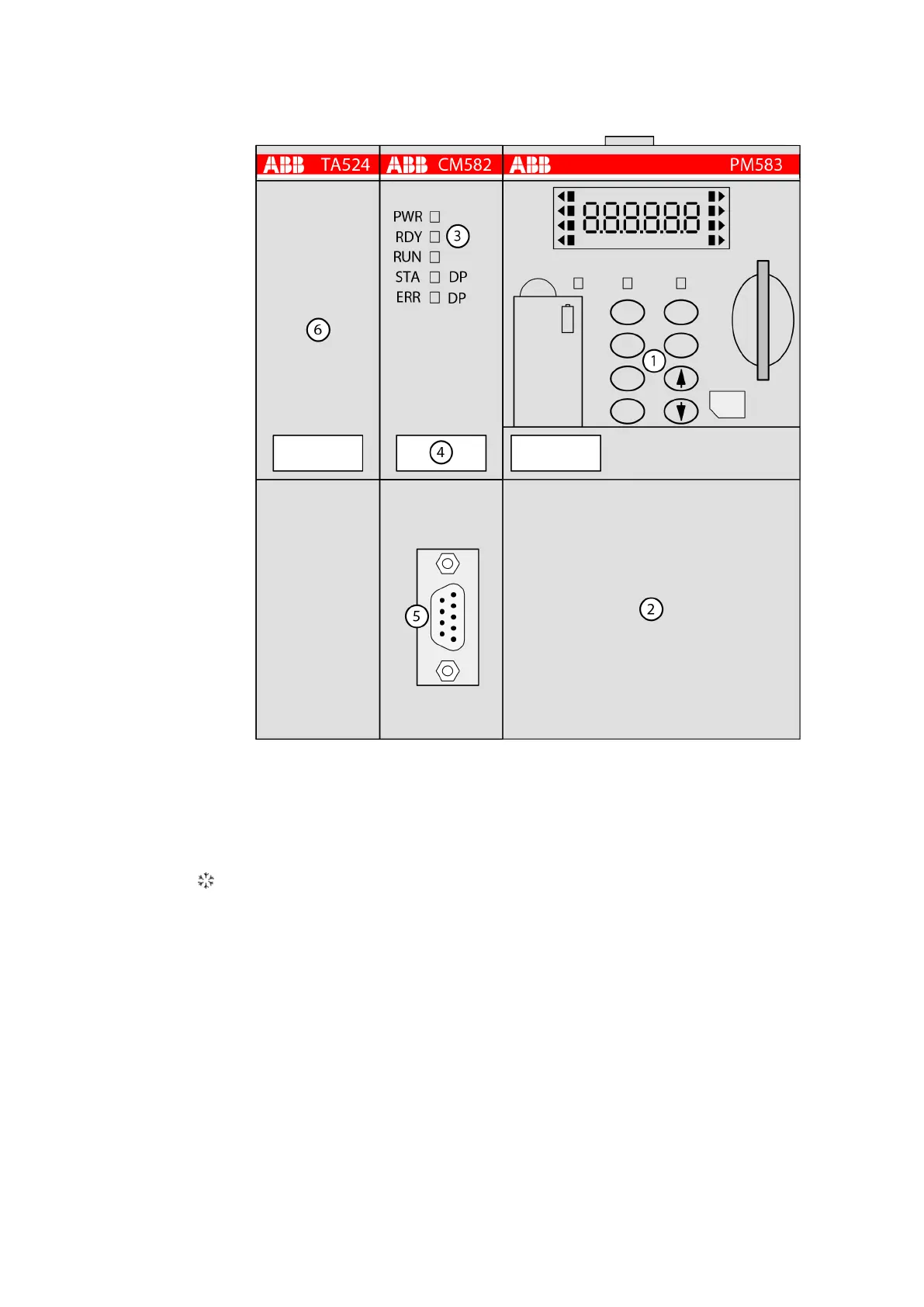

13.4 Connection
1 CPU
2 The connection part may be different on various terminal base types. See installation
instructions of the specific terminal base suitable for this CPU for connection specifications.
3 5 LEDs for state display
4 Label
5 Interface for PROFIBUS
6 TA524 Dummy Communication Module
Sign for XC version
2019/11/15 3ADR024117M02xx, 11, en_US 109
