24
1MRS750527-MUM
)HHGHU7HUPLQDO
Technical Reference Manual, General
5()B
After the configuration has been built and successfully compiled, and the MIMIC
configuration has been designed, the Relay Configuration Tool project (RCT project
in CAP 505) including the relay configuration and MIMIC configuration can be
downloaded to the relay with the Relay Download Tool. The project can also be
uploaded from the feeder terminal with the same tool
1
. However, the relay
configuration, the RCT project and the MIMIC configuration are saved in a non-
volatile memory only after they have been stored via the parameter “Store”. To
activate new configurations, the feeder terminal should be reset via the parameter
“Software reset”. These parameters can be found in the menu Configuration/
General. Likewise, the storing and the resetting can be done by using the relay
command buttons “Store” and “Reset” in the Relay Download Tool.
For more information about the configuration and the Relay Configuration Tool
refer to the Configuration Guideline and the tool manuals (refer to section
“References” on page 96).

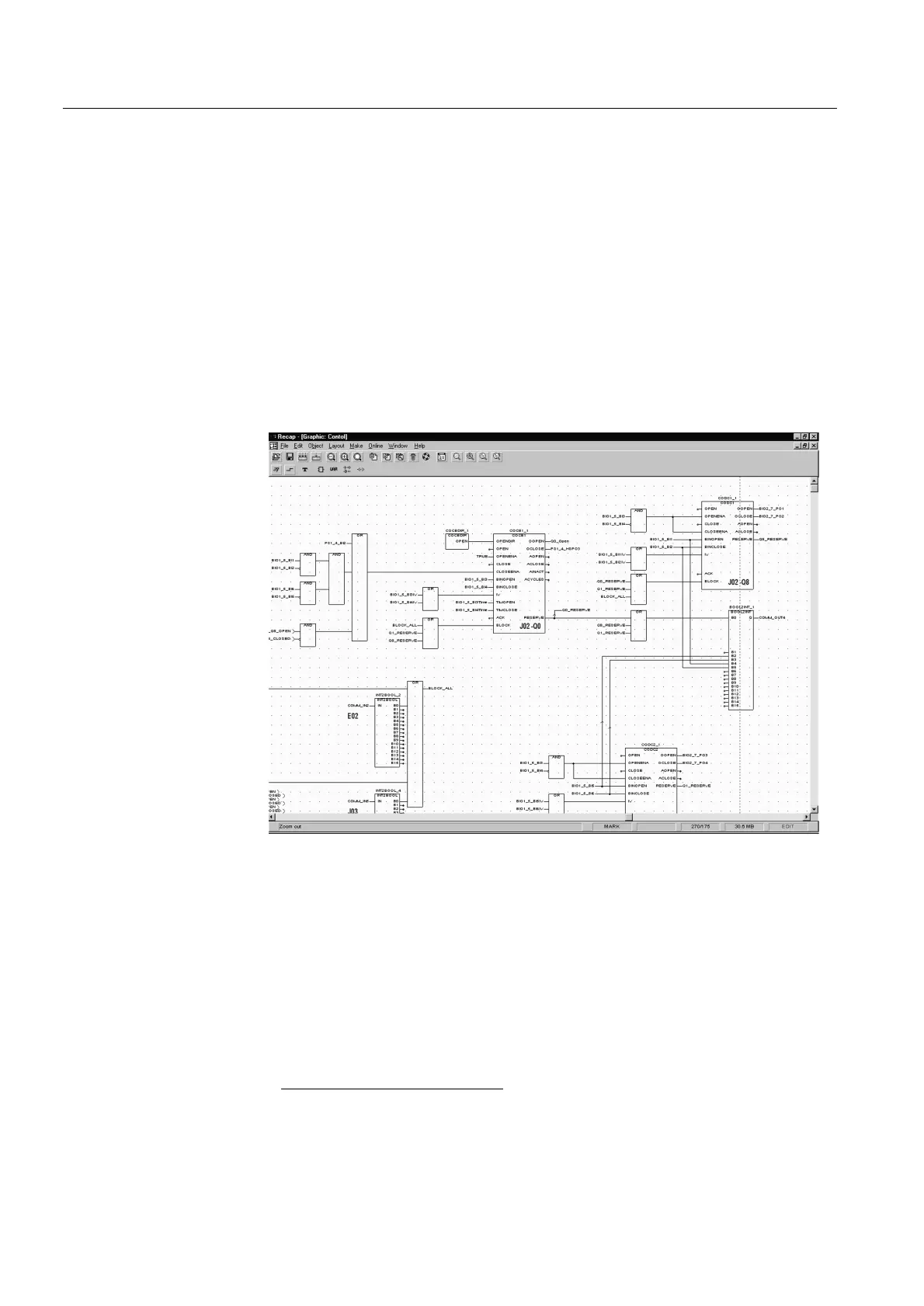

)LJ ([DPSOHRIDIHHGHUWHUPLQDOFRQILJXUDWLRQZLWKWKH5HOD\
&RQILJXUDWLRQ7RRO
0,0,&FRQILJXUDWLRQ
The control functions configured using the Relay Configuration Tool can be
associated with object status indicators that are part of the MIMIC configuration
picture displayed on the graphic LCD of the HMI. The MIMIC configuration picture
is designed with the Relay Mimic Editor. In addition, the editor is used to define the
eight programmable LED indicators and the corresponding alarm texts on the front
panel, the alarm modes, and the interlocking LED texts.
1. This function is only supported in the feeder terminal revisions of the Release 2.0 or
later, refer to section “Revision identification” on page 90.
