ABB REF 543 Technical Reference Manual

1MRS750527-MUM
)HHGHU7HUPLQDO
Technical Reference Manual, General
5()B
51
5HVLVWDQFHVHQVRUV
The resistance sensors may be connected to the RTD/analogue input according to
either the three-wire or the two-wire connection principle. With the three-wire
measuring principle, the wire resistance is automatically compensated. The resistor,
or RTD sensor, is connected across the IN+ and IN- inputs, and the - side of the
resistor/RTD sensor is connected to the GND input. The leads connected to the IN+
and GND inputs must be of the same type.

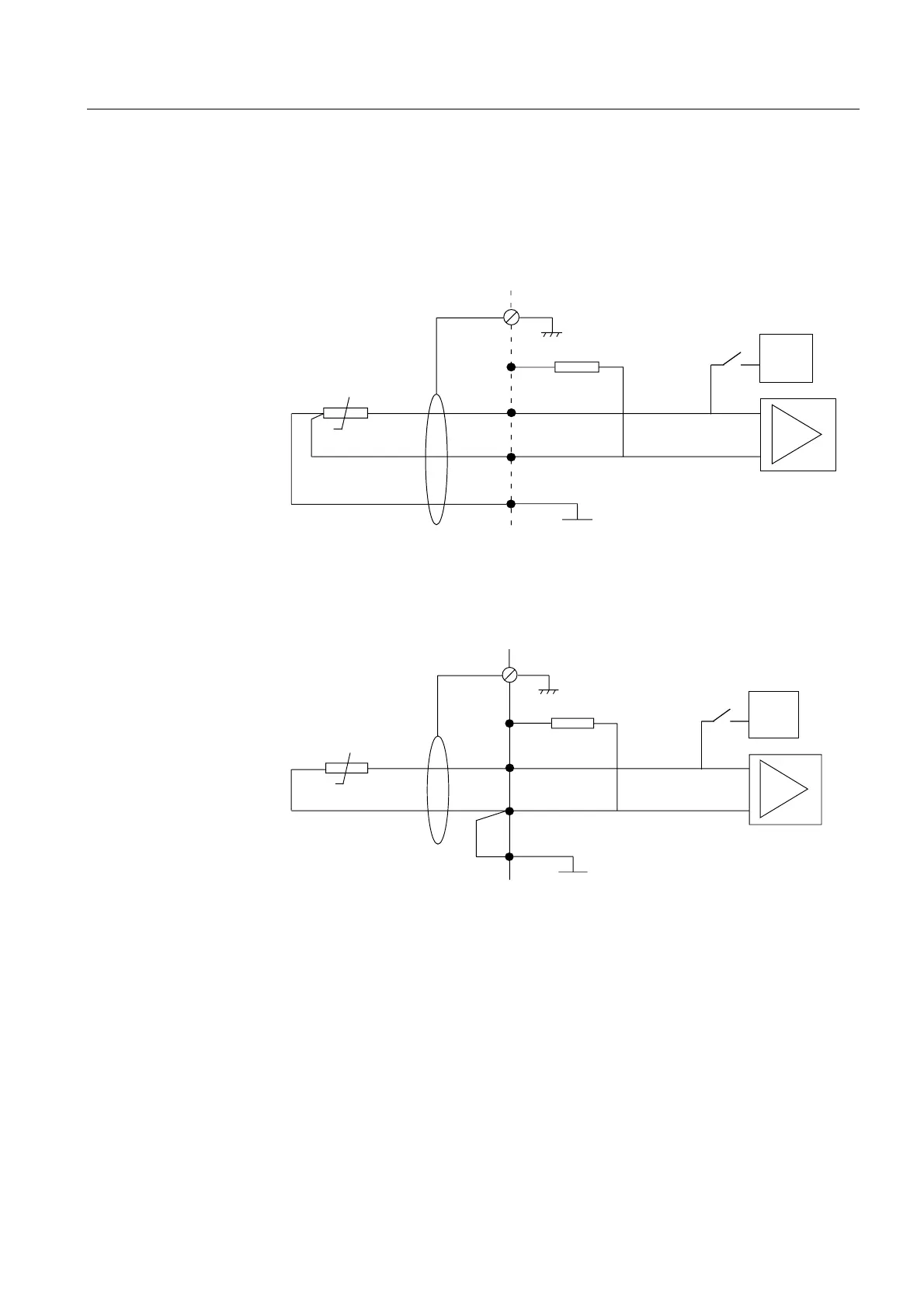

)LJ 3ULQFLSOHGLDJUDPRIWKHWKUHHZLUHFRQQHFWLRQ
With the two-wire connection principe, the IN- and GND terminals are linked
together. The resistor is connected across the IN+ and IN- inputs.
)LJ 3ULQFLSOHGLDJUDPRIWKHWZRZLUHFRQQHFWLRQ
SHUNT
IN -
GND
IN +
G
mA
DIFF
+
-
resist3w.CNV
Resistor sensor
SHUNT
IN -
GND
IN +
G
mA
DIFF
+
-
resist2w.CNV
Resistor sensor
