ABB REG630 - Page 6

3I
3I
Io
3I
Io
EXC.
AVR
U
fn
REK510
Uo
3U
3U
REF630
Preconf.
n
ANSI IEC
25 SYNC
27/47U+ 3U</U1<
46 I2>
50N/51N Io>>>
50P/51P 3I>>>
51BF/51NBF 3I>/Io>BF
51P-1/51P-2 3I>/3I>>
59/47O- 3U>/U2>
59G Uo>
60 FUSEF
67N-1/67N-2 Io>→/Io>>→
68 3I2f>
REG630
Preconf.
n
ANSI IEC
32R/32O P>→
40 X<
46G/46M I2>G/M
51BF/51NBF 3I>/Io>BF
51N-1/51N-2 Io>/Io>>
51P-1/51P-2 3I>/3I>>
59 3U>
59G Uo>
81U/81R f</df/dt
87T 3ΔI>T
U
12
3I
Io
Uo
REG630
Preconf.
n
ANSI IEC
21GT Z<GT
24 U/f>
27 3U<
27/59THD ΔU
03f
>/Uo>
32R/32O P>→
49T/G 3Ith>T/G
51BF/51NBF 3I>/Io>BF
51P-1/51P-2 3I>/3I>>
59 3U>
59G Uo>
60 FUSEF
64R Io>R
GUID-42A3A43D-4F62-4541-AB39-D662B21769AB V1 EN

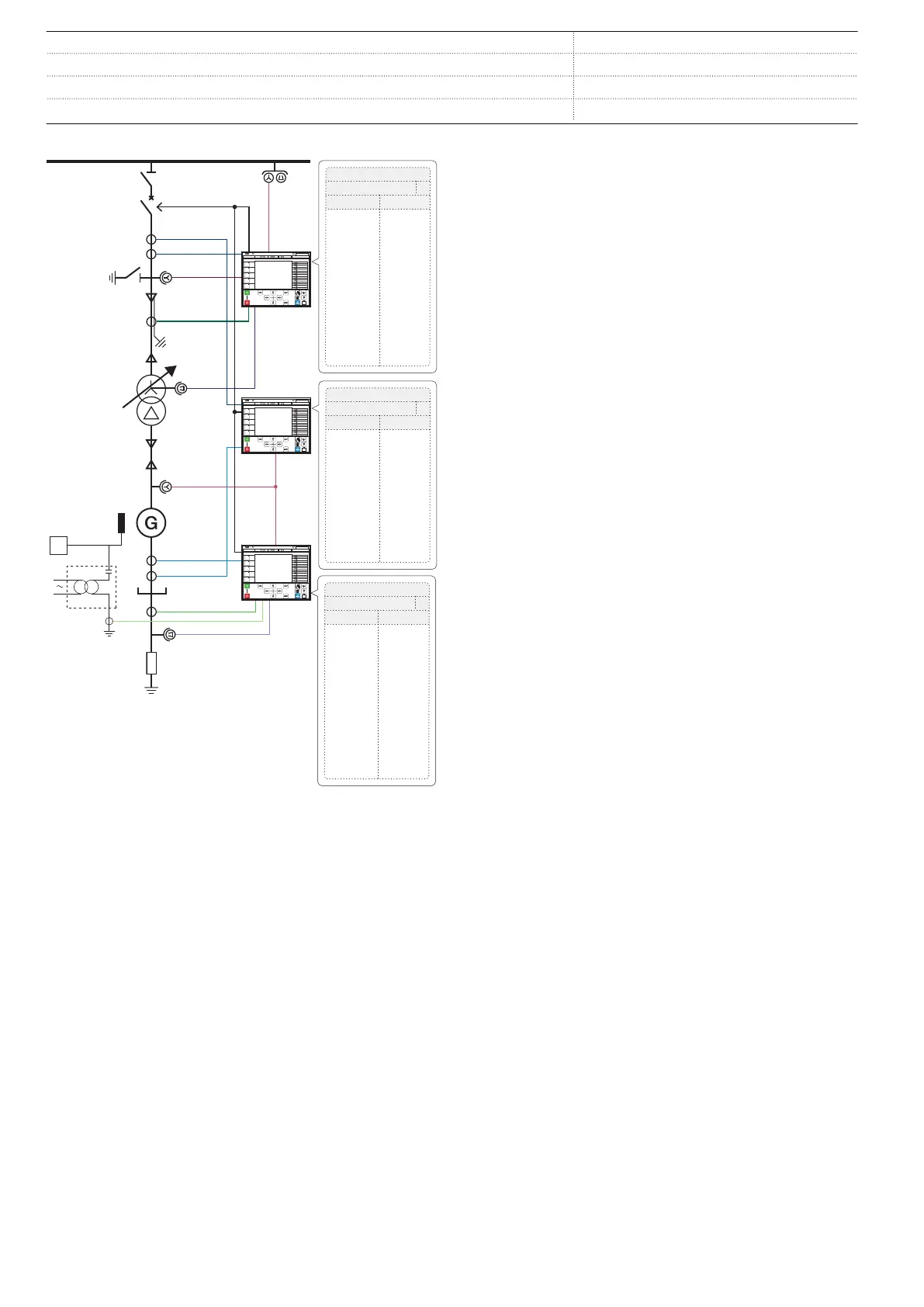

Figure 3. Medium-sized generator in block connection with a transformer
The protection is implemented with two REG630 generator
protection relays and one REF630 feeder terminal. One
REG630 is taking care of protecting the generator itself, the
second REG630 is protecting the power transformer with
available transformer differential protection function and
REF630 is protecting and controlling the feeder part of this
application.
Generator Protection and Control
1MRS757583 C
REG630
Product version: 1.3
6 ABB
