ABB TDO 6 - Page 9

Instruction manual 9

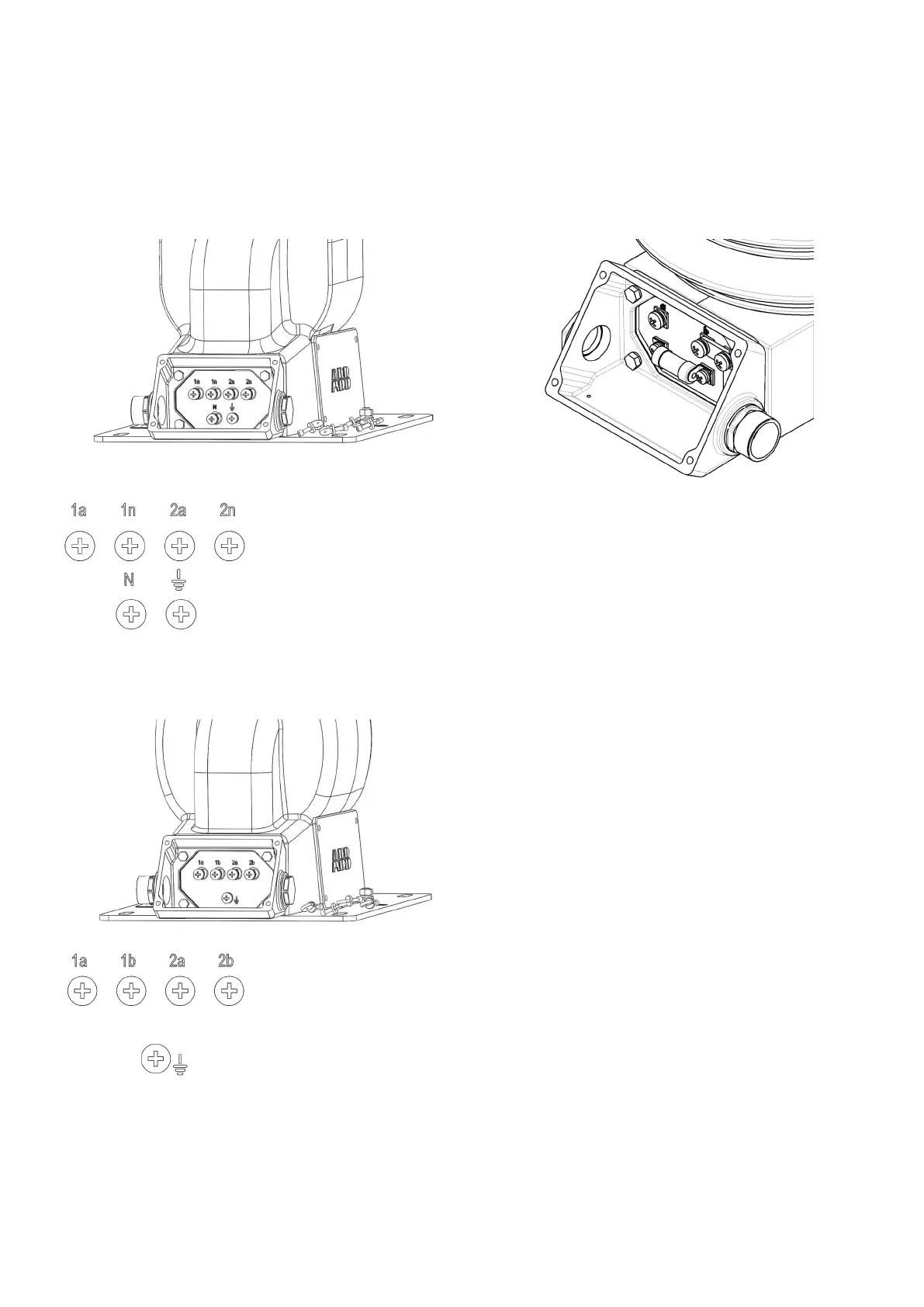

Figure 13. Examples of voltage transformers terminal boxes – VOG-24.
Fig.13a. Designation of the secondary windings
Figure 14. Examples of voltage transformers terminal boxes – VOL-24.
Fig.14a. Designation of the secondary windings
Figure 15. Examples of voltage transformers terminal boxes with fuse as
option – VOL-40.5.
