8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2020 . All rights reserved. HZTL2485_EN Rev.G March 2020
NOTICE

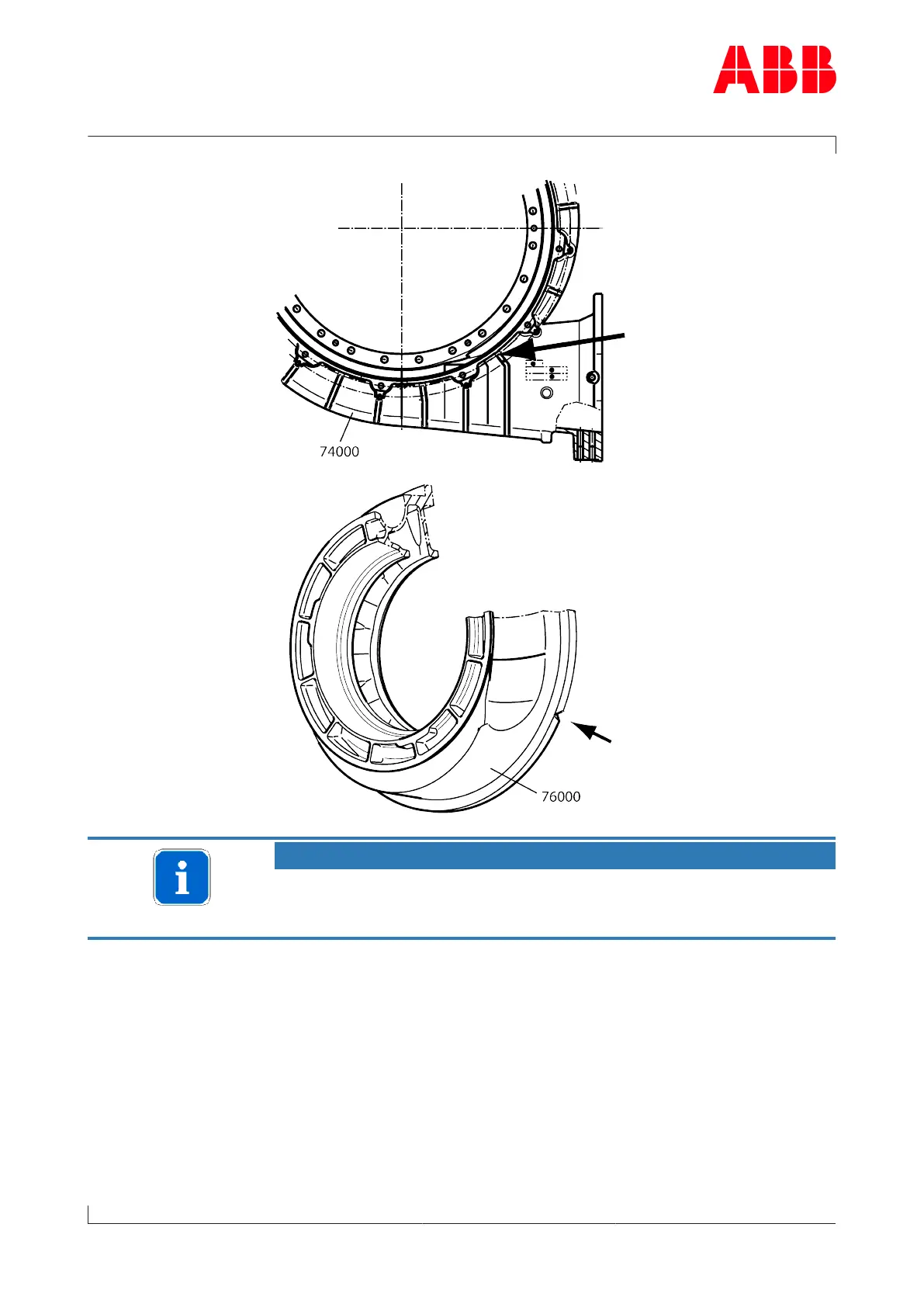

Align the compressor casing internal part (76000) with the notch (see
the arrow) so that the notch is positioned at the rib of the compressor
casing external part (74000) (see the arrow).
u Fully insert the compressor casing internal part (76000).
u Fit the studs (74026/74029).
