8.6 Dismantling and installing the turbine diffuser
and nozzle ring
Removing turbine diffuser

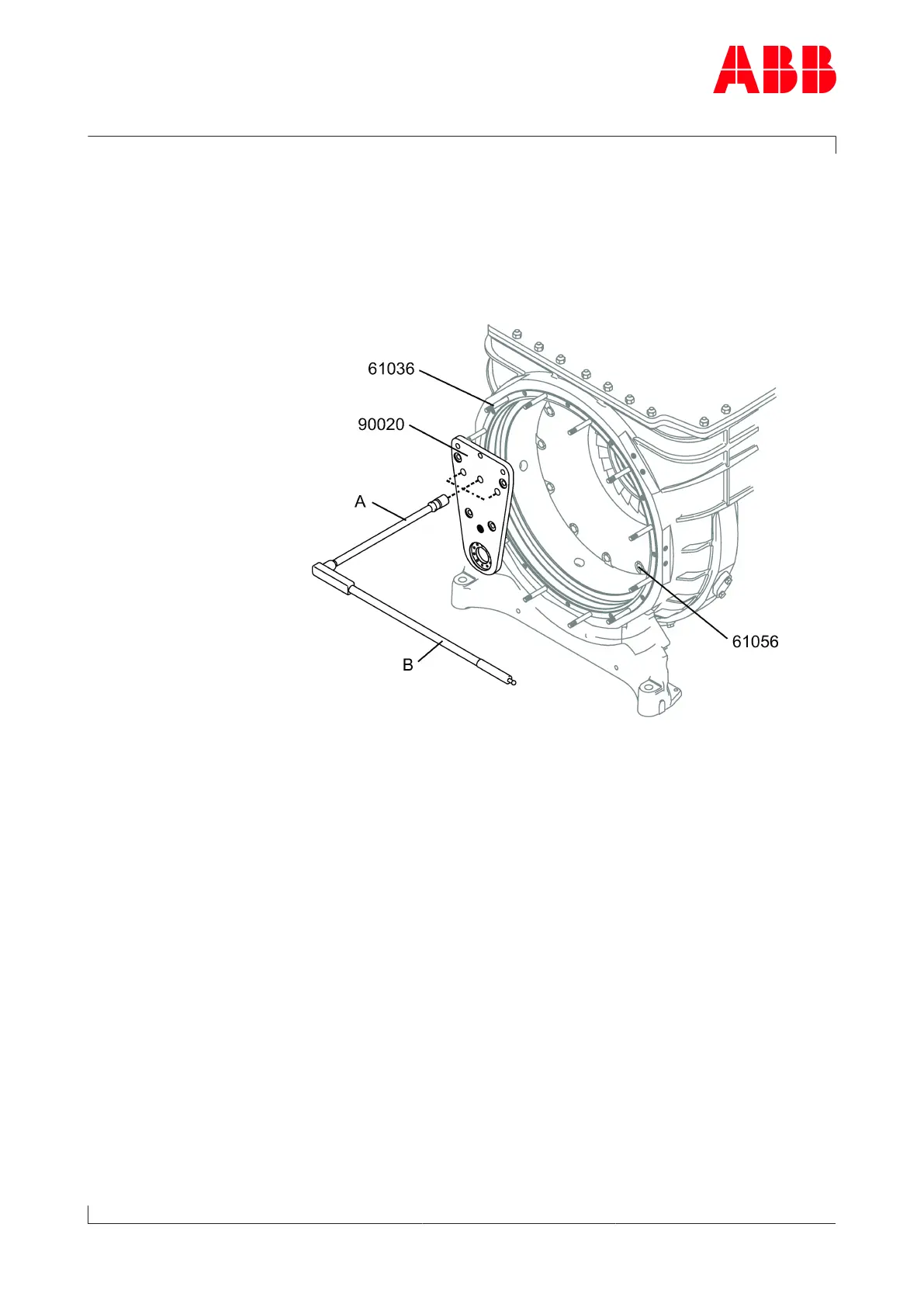

u Put assembly plate (90020) over strain bolts (61036).
u Insert extension (A) of torque spanner (B) through hole in assembly
plate and loosen screws (61056) one after other.
u Don't remove screws (61056) yet.
