ABB VD4 Series User Manual

9

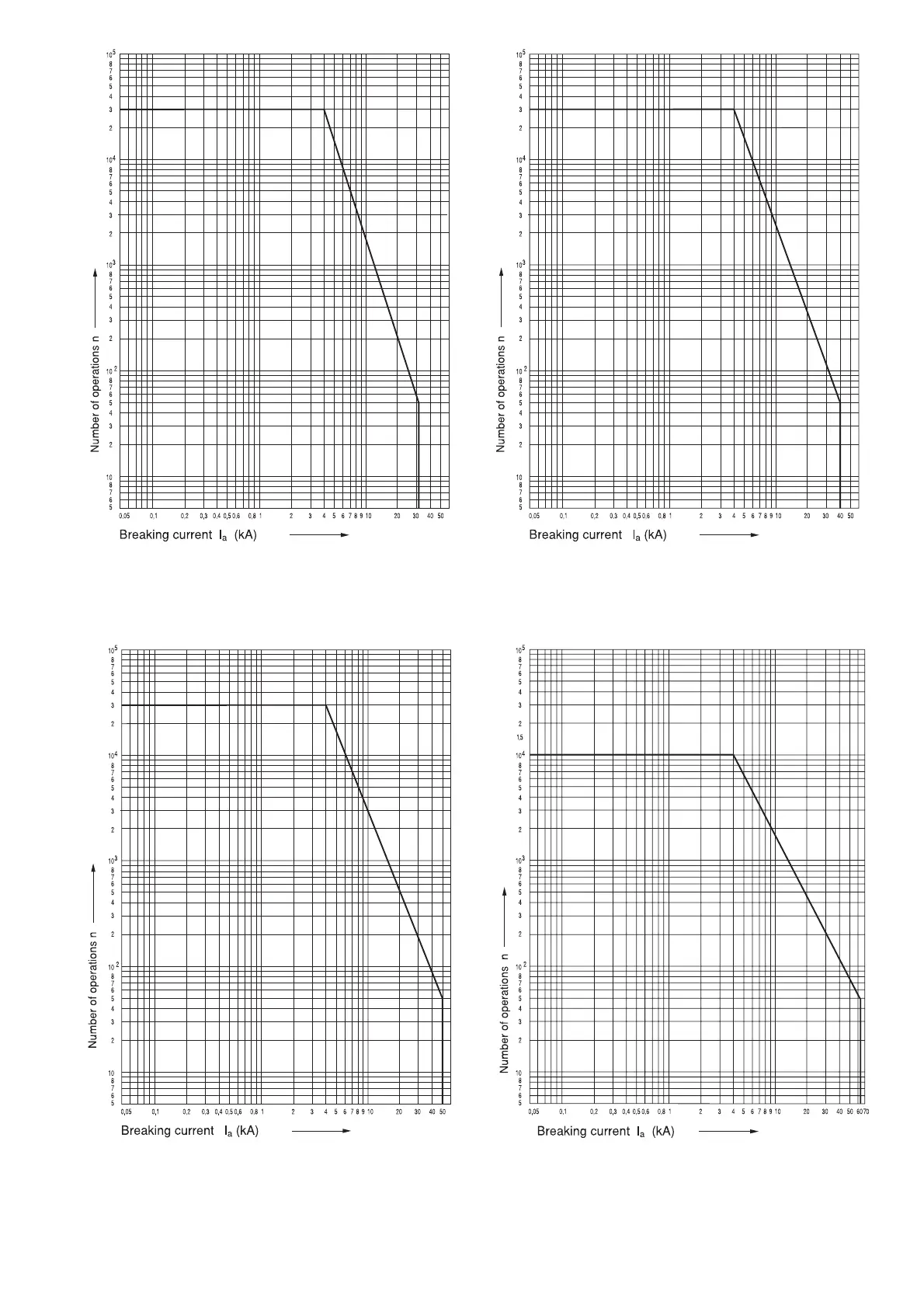

Figure 2/3: Permissible number of vacuum interrupter operating cycles n as a function of the breaking current I
a
(Reference see section 2.1 – Technical data page 6)
Diagram D)
Diagram C)
Diagram E)
Diagram F)

ABB VD4 Series Specifications

General

Operating mechanism	Spring-operated mechanism
Installation	Fixed or withdrawable
Rated frequency	50/60 Hz
Poles	3
Rated current	Up to 4000 A
Standards	IEC 62271-100
Insulation	Vacuum
Application	Medium voltage
Control voltage	24-240 V AC/DC
Weight	Depending on the specific model
