Operation Manual / 4 Product description / A200-L
8 Disassembly and assembly / 8.8 Dismantling the gas inlet casing,
nozzle ring (A280-L)
© Copyright 2018 ABB. All rights reserved. HZTL4036_EN Revision M August 2018

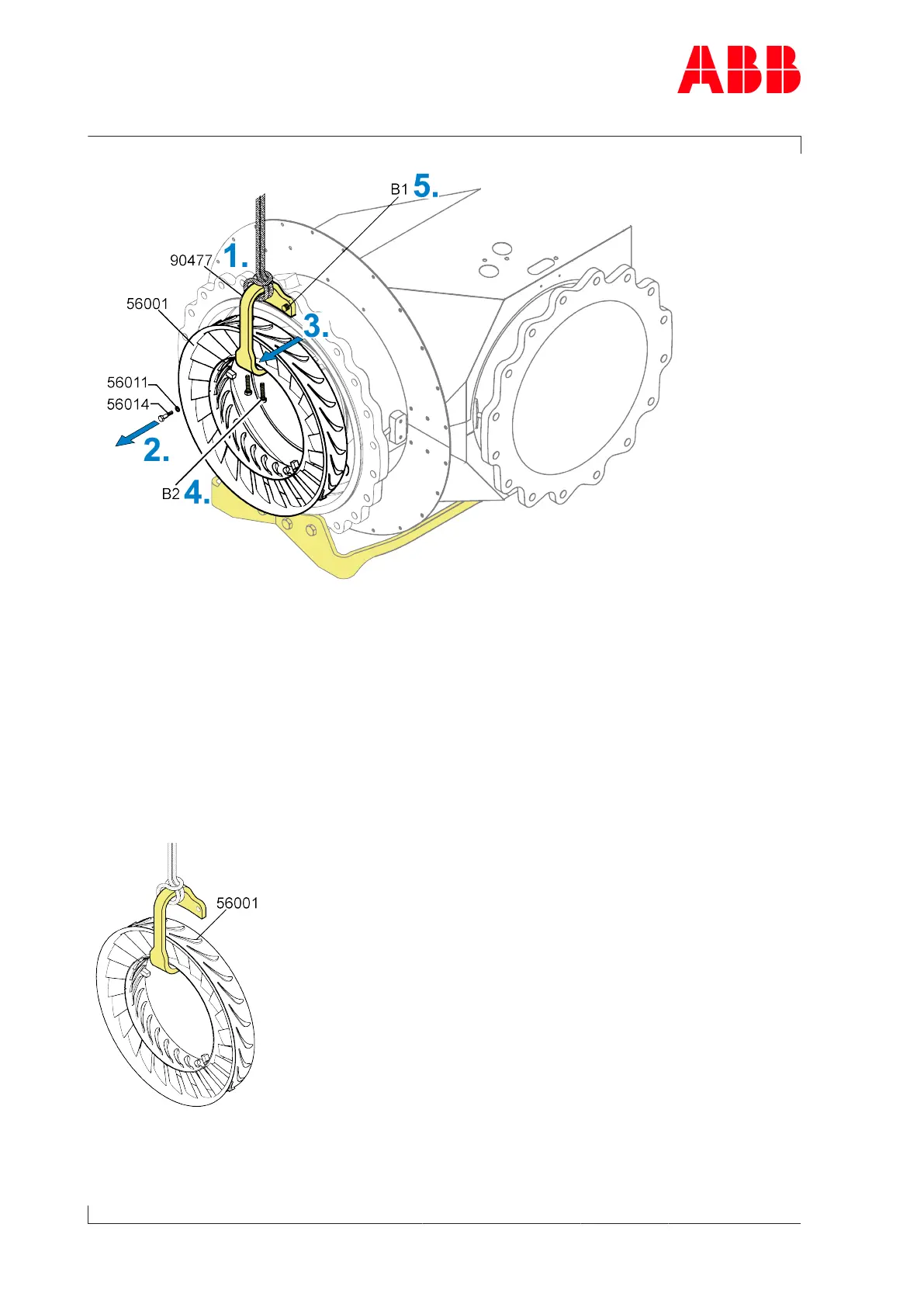

Fig.44: Dismantling the nozzle ring (A280-L)
1. Loop around the nozzle ring holder(90477) with the lifting gear and secure it to the
crane.
2. Loosen screws(56014) and remove with washers(56011).
3. Pull the nozzle ring (56001) towards the front onto the nozzle ring holder (90477).
4. Screw the screws (B
2
) into the nozzle ring holder.
5. Remove screws(B
1
).
Fig.45: Putting down the nozzle ring (A280-L)
u Use the crane to remove and put down the nozzle ring (56001).
Page 72 / 108
