Operation Manual / 4 Product description / A200-L
8 Disassembly and assembly / 8.11 Axial clearance A after assembly
© Copyright 2018 ABB. All rights reserved. HZTL4036_EN Revision M August 2018
8.11 Axial clearance A after assembly
WARNING
Physical hazards due to sharp edges on compressor wheel
The compressor wheel has sharp edges which can result in injury.
u Wear safety gloves.
Wear safety gloves to protect against mechanical hazards.

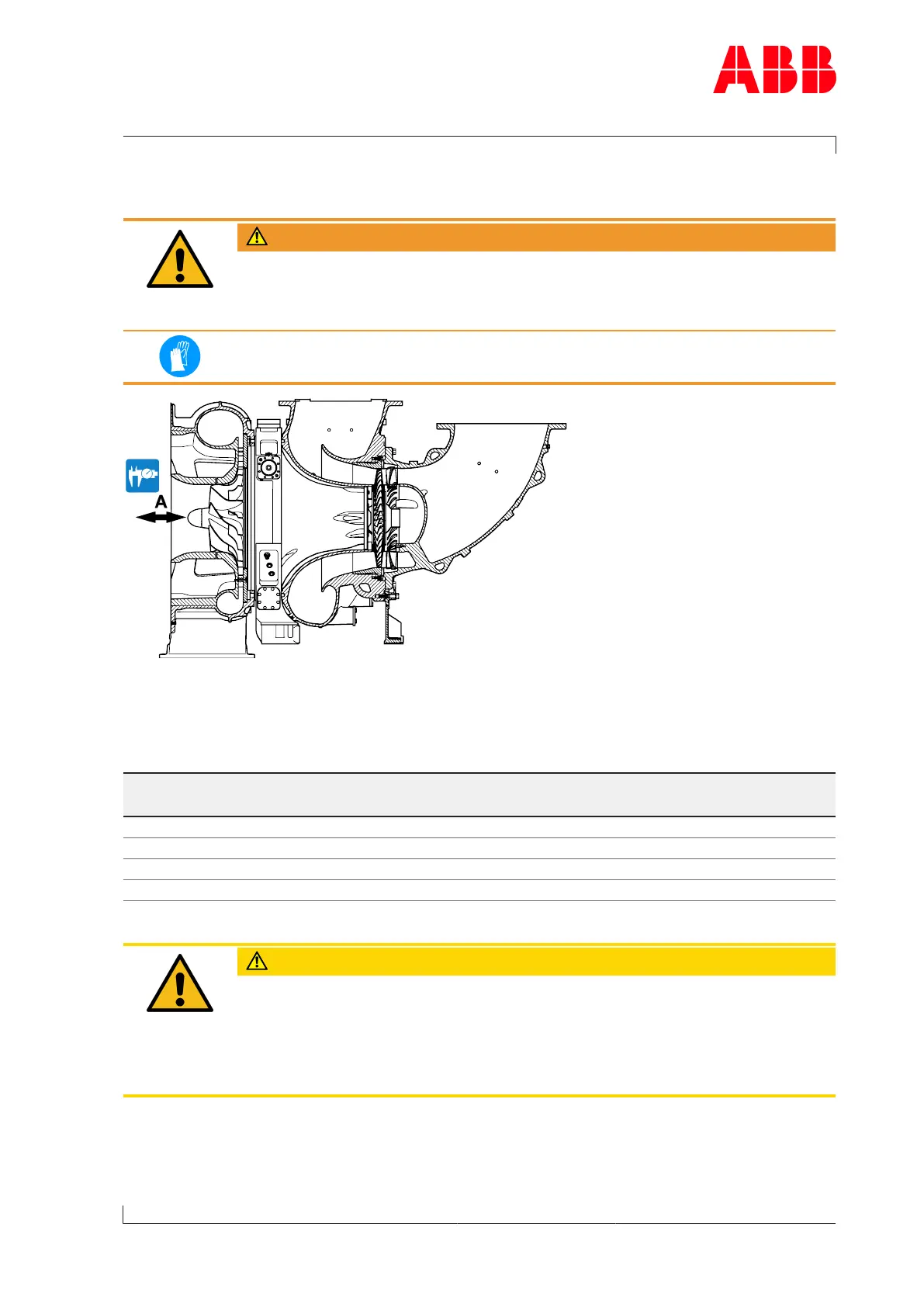

Fig.54: Measuring axial clearance A
The axial clearance (A) of the rotor should always be measured before and after service work
on the turbocharger.
u Measure and note axial clearance (A).
Product Axial clearance A
[mm]
A265-L 0.32 ... 0.62
A270-L 0.33 ... 0.63
A275-L 0.38 ... 0.68
A280-L 0.41 ... 0.73
Table39: Admissible axial clearance A
CAUTION
Clearances outside the tolerance
Serious damage to engines or property can be caused by clearances outside
the tolerance and excessively worn parts.
u Have the components assessed and, if necessary, replaced by an ABB Tur-
bocharging Service Station.
Page 81 / 108
