ABB XT7 User Manual

—
Protection setting setup
XT5, XT7/XT7M and Emax 2

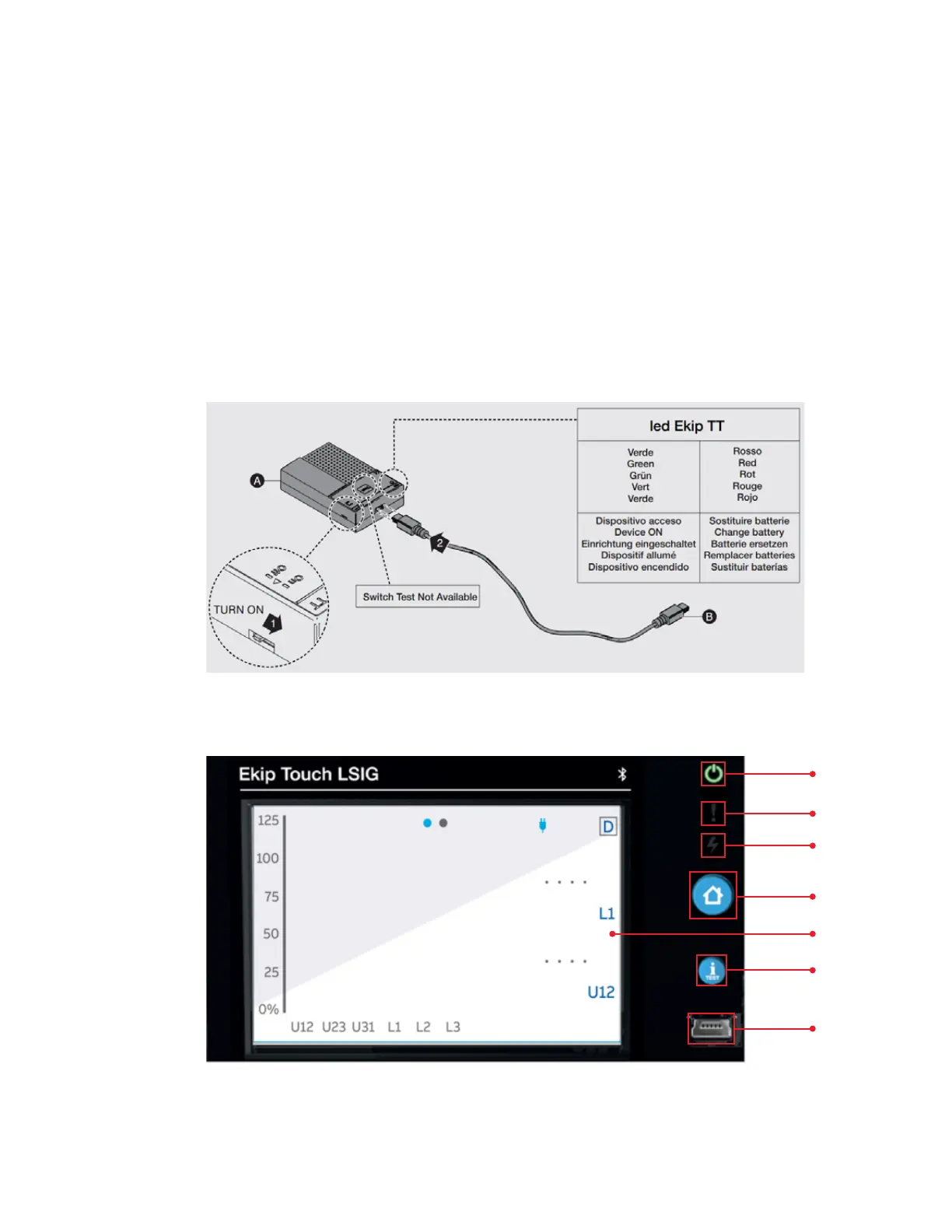

6 EKIP TOUCH TRIP UNITS
d
f
 Ekip TT Plug EndTrip Unit Service Connector
Power 
Warning 
Alarm
Home

iTEST 

c
b
a
g
e







*Powered via USB port on laptop/computer
—


ABB XT7 Specifications

General

Category	Molded Case Circuit Breaker (MCCB)
Rated Voltage (Ue)	690V AC
Poles	3P, 4P
Standards	IEC 60947-2
Product Name	XT7
Trip Unit Type	Electronic
Mounting	Fixed, Plug-in
