ABB XT7 User Manual

PROTECTION SETTINGS SETUP FOR EKIP TOUCH TRIP UNITS 9
7
8

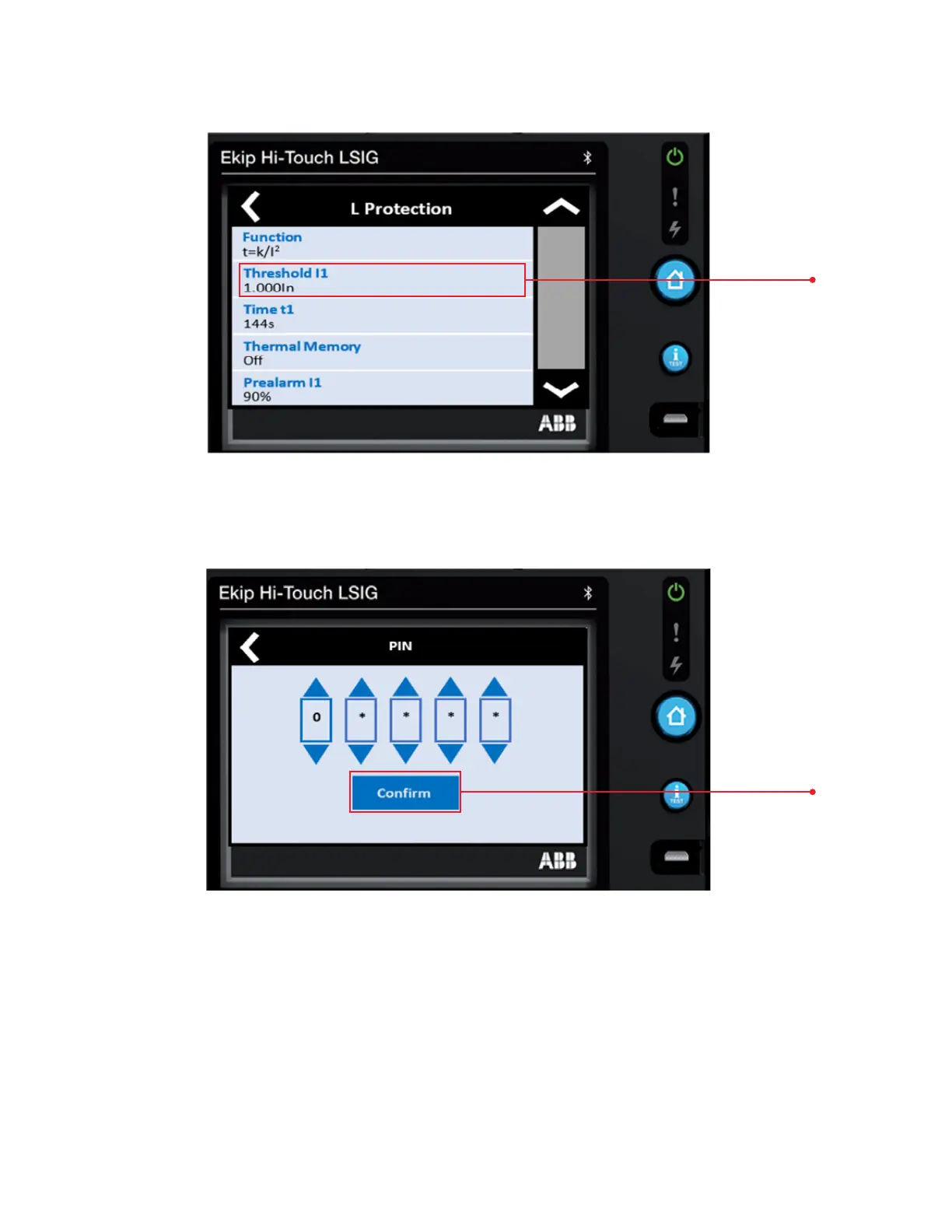

Threshold I1


Confirm to accept zero

Confirm
This will allow Protection Settings to be changed per the coordination study.



ABB XT7 Specifications

General

Category	Molded Case Circuit Breaker (MCCB)
Rated Voltage (Ue)	690V AC
Poles	3P, 4P
Standards	IEC 60947-2
Product Name	XT7
Trip Unit Type	Electronic
Mounting	Fixed, Plug-in
