Attaching & Using The TR3
Profiler Attachment
NOTE: Before using the
TR3 and “Profiler” it is
imperative to know the
depth of the footing
in the Arena. Find the
shallowest spot in the
Arena and set the depth
of the Scarifier’s and
Profile Blades to that
level. This will prevent
any damage to the base
in the Arena.

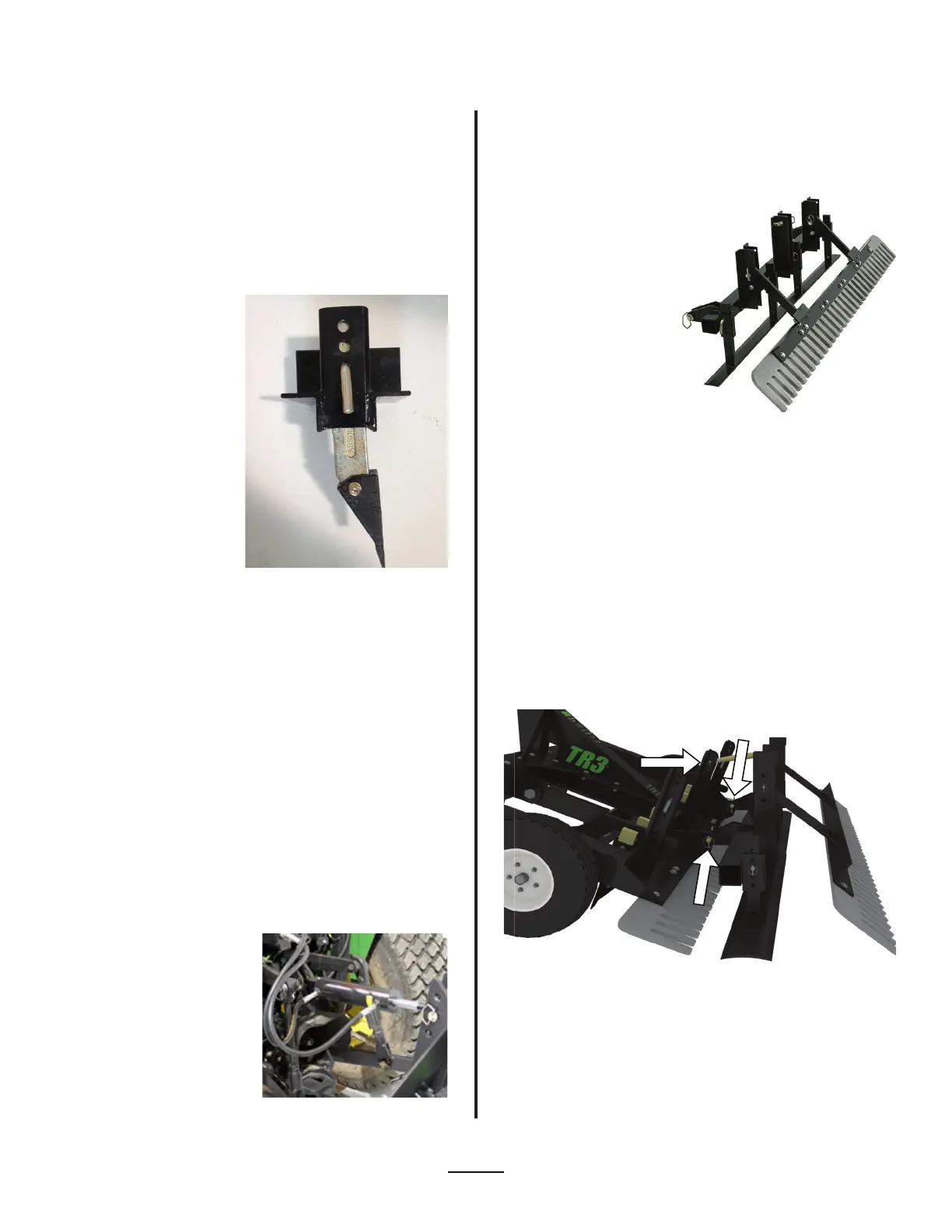

To attach the Rail Buster to the TR3 remove one of the
stabilizing wheels on the TR3 and insert the Rail Buster
in place of the stabilizing wheel.
The Rail Buster depth can be adjusted by adjusting
where the scarifier is pinned on the Scarifier tube.
Adjust the scarifier to the same depth as the scarifiers
on the TR3.
The Rail Buster can be
used in conjunction
with the Rail Blade or
separately.
Attach the hydraulic top link to the Tractor replacing
the manual top link. For tractors with enclosed
mounting areas the hydraulic top link may need to
be mounted with the body of the hydraulic top link
attached to the TR3 with the shaft attached to the
Tractor. If the hydraulic top link must be mounted with
the body of the hydraulic top link on the TR3, ensure
the hoses will be long enough to reach the tractor when
the hydraulic top link is fully extended before operating
the TR3.
Hook the hydraulic hoses of the hydraulic top link to
the hydraulic fittings on the tractor.
Extend out the hydraulic
top link shaft so that it can
be attached to the TR3/
Tractor and attach using a
hitch in to the TR3/Tractor.
The hydraulic top link is
now ready for use.
Some Tractors may need an extender with the optional
Hydraulic Top Link to get maximum range of movement
with the Hydraulic Top Link.
Some Tractors may need an extender with the optional
Hydraulic Top Link to get maximum range of movement
with the Hydraulic Top Link.
Rail Buster Attachment & Use
Hydraulic Top Link Option
How To Attach The Profiler
•
•
•
•
•
•
Step 1:
The profiler has three points that it attaches to the TR3
(similar to the 3 point setup on your tractor). Simply put
the two hitch pins through both the outside brackets on the
TR3, as well as through the outside brackets on your Profiler
attachment. Then attach the 11”Top Link to the center tower
on the TR3, and the center tower on the Profiler attachment
as well.
